Tiptop Audio / Mix7

A module made by Tiptop Audio, an up-and-coming American garage maker. A 7-channel analog summing mixer module for Eurorack.

Overview Overview
MIX7 is a 7-channel analog summing mixer module for Eurorack. It is designed to sum up different types of signals used in modular systems such as audio, CVs, triggers and gates.

The MIX7 uses low noise analog summing power for high quality mixing with more headroom. A compact 3HP-sized Eurorack utility module, the MIX7 can combine rhythms, note patterns, and CV automation with a variety of control sources, providing compelling mixing capabilities for all applications. You can connect the main output of one section to the input of another MIX7 to create large mixing groups and complex signal routing inside the modular.

The MIX7's summing mixing circuit has a built-in low-noise op amp, excellent sound quality for audio mixing, and the beautiful texture and audio of classic analog mixing with headroom for processing hot modular signals. Can be used for various purposes such as totaling signals other than. You can open up new creativity in your system.

Feature Feature

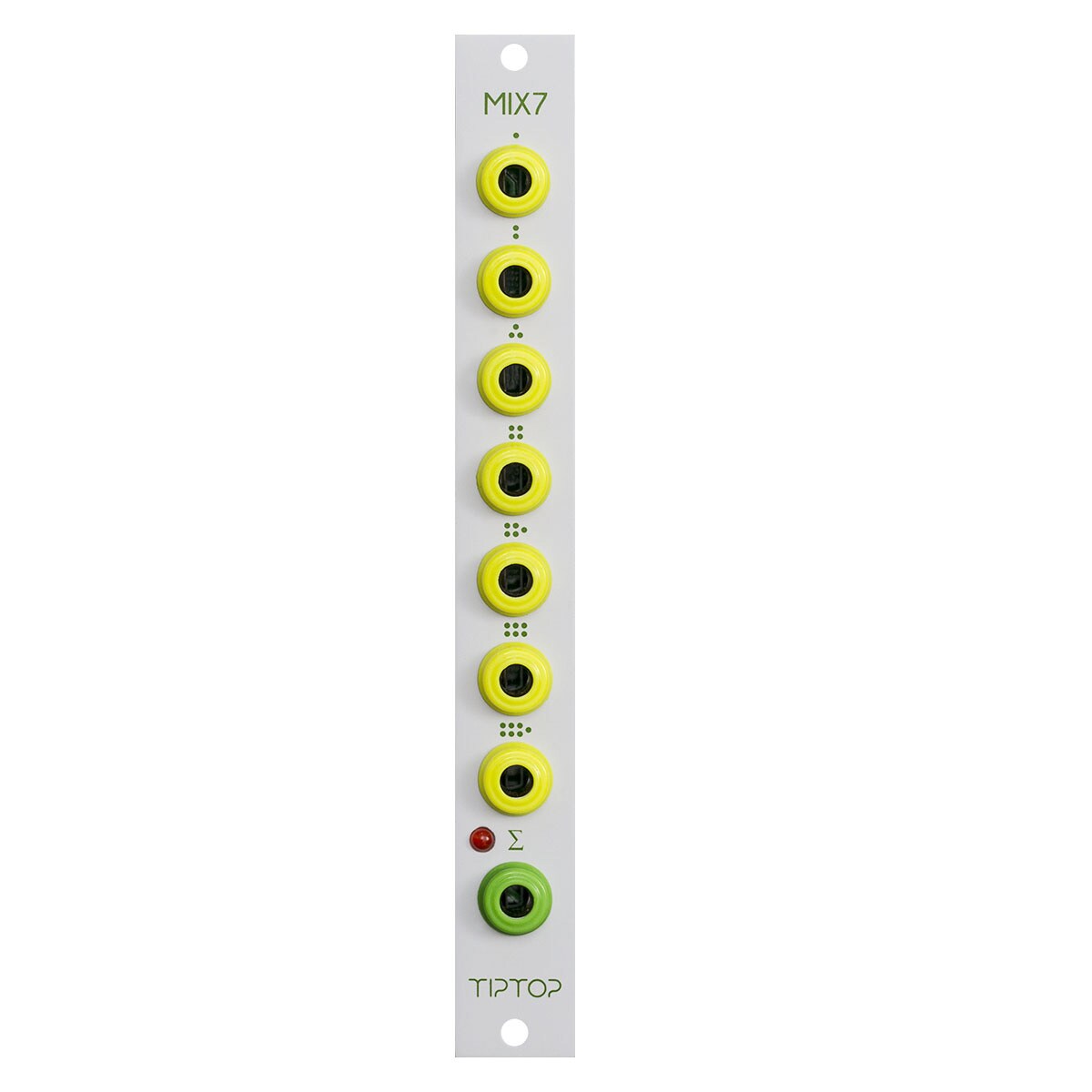

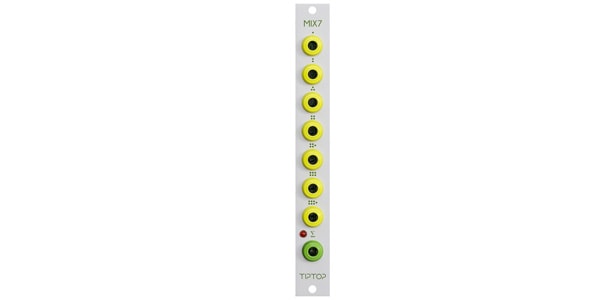

Each input has 1 to 7 dots, the input is a yellow jack and the output is a green jack. This module features a stylish white face plate to match the look of the Tiptop system.

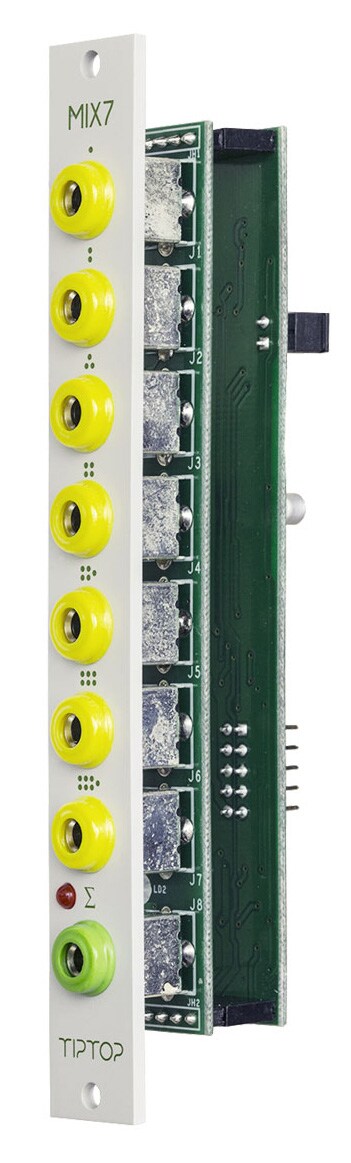

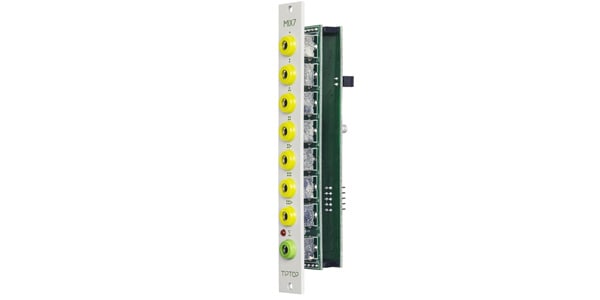

There is a user-configurable jumper on the back of this module that allows you to configure the MIX7 to unity gain (OUT = IN) or increase headroom (OUT = 0.4IN) for use with hot audio signals. Works great with Tiptop Audio's percussion modules. The peak indicator lights on the front panel warn the user of slight audio clipping in the mix, keeping all input sources in full original quality.

■ Width: 3HP
■ Depth: 43mm
■ Current consumption
+ 12V: 25mA
-12V: 20mA
