Tiptop Audio / MISO

Variations

A module made by Tiptop Audio, an up-and-coming American garage maker. A versatile utility module for synthesizing CV and audio.

Overview Overview

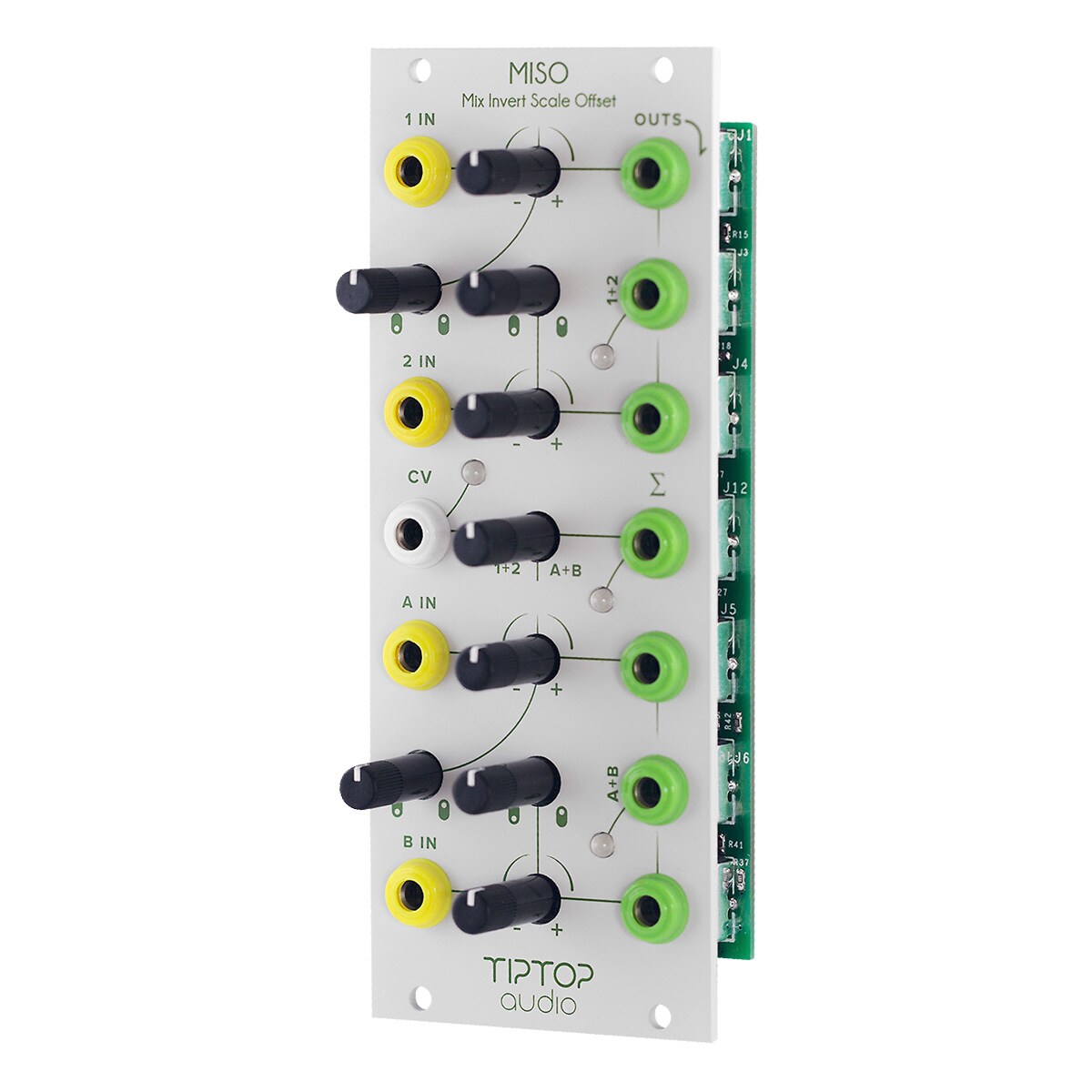

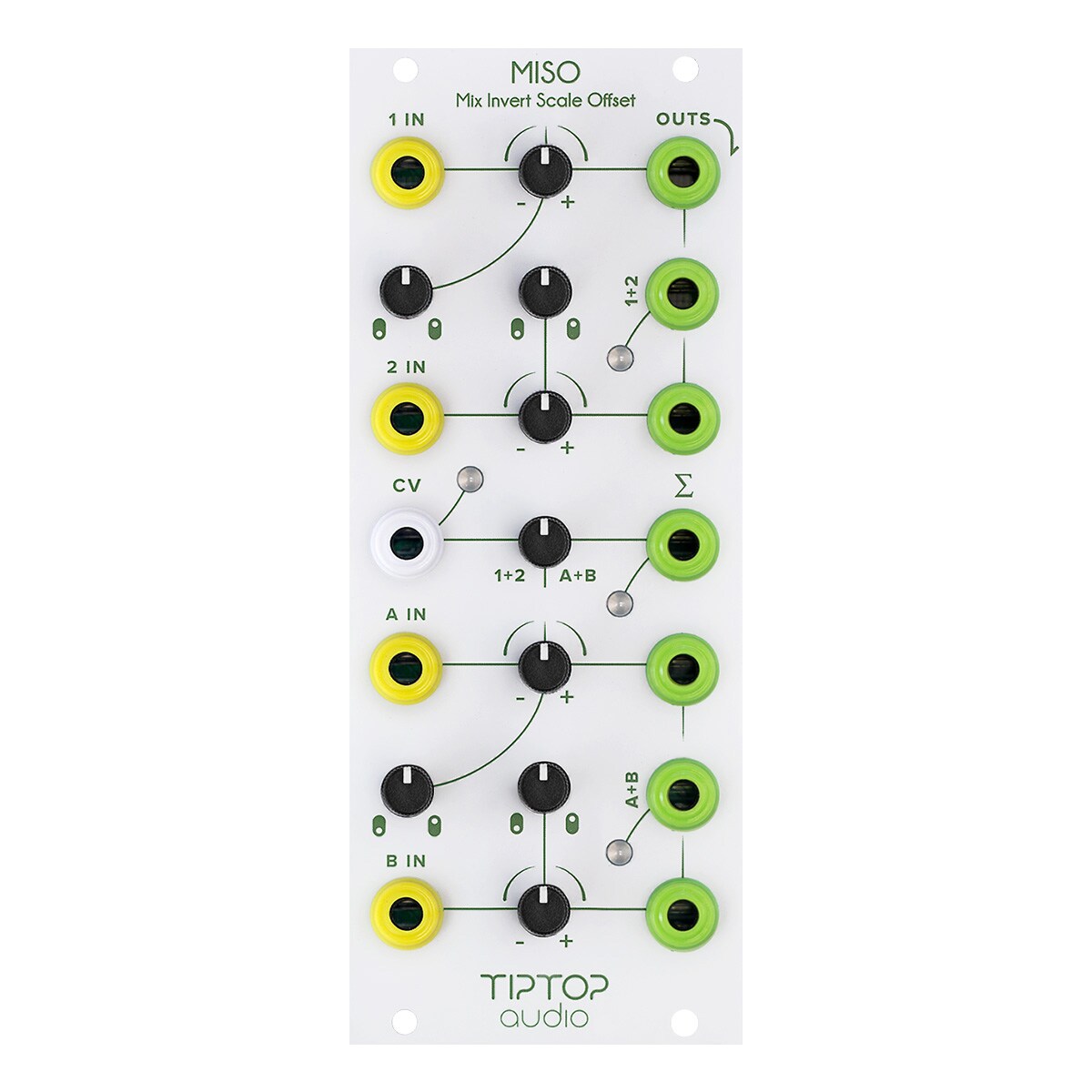

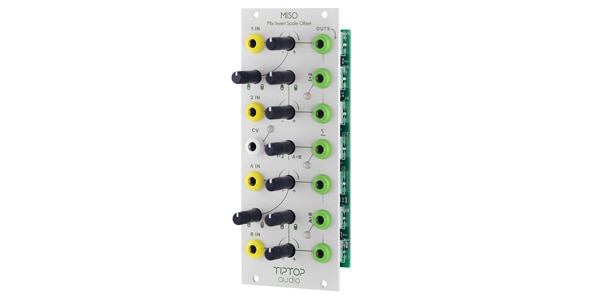

MISO is a versatile utility module for synthesizing CV and audio. Combine multiple CV tools into one module to create complex CVs at the output stage. The name comes from the four main features (Mix, Invert, Scale, Offset) included in this module.

Features Features
The two MISO sections (1/2 IN and A / B IN) above and below the MISO have the same function. Each section has two inputs that can be used to mix the signal, polarity / shape inversion, scale size, and offset voltage. Each function can be used independently of the total shape added to the mix output, or at the same time.

In the center of the module is a linear CV crossfader with precise and smooth variation that evenly mixes the outputs of the upper and lower MISO sections. Feed envelopes, LFOs, and sequences to MISO to create new shapes, and then manually or use the central section to crossfade with CVs to create more complex shapes and CV animations. Crossfading the VCO waveform or audio sample waveform with a CV can produce even more interesting effects.

There are countless patches that can produce unexpected effects using MISO. MISO is a new module that gives existing modular synthesizers amazing regenerative value, arouses creative inquisitiveness, and provides unconventional experimental mixing.

■ Width: 10HP
■ Depth: 42mm
■ Current consumption
+ 12V: 55mA
-12V: 55mA
