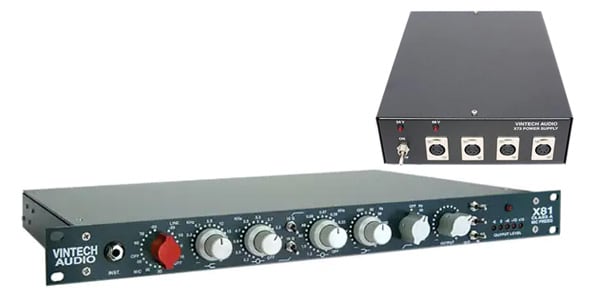

VINTECH AUDIO / X81 Class A (Power Supply Set)

This model is derived from the X73 and has one more EQ band than the X73. It allows you to adjust two types of midrange frequencies, giving you even more expressive power.

*A dedicated power supply is included. From the manufacturer's website: Equipped with a 4ch HA+EQ equivalent to the vintage NEVE 1081 Equipped with one more EQ band than Vintech-Audio's X73. Two types of mid-range frequencies can be adjusted. 10 points each of low/mid frequencies and high/mid frequencies, and 5 points each of low and high frequencies can be selected, allowing for truly flexible "magic EQ." High frequencies are particularly expressive, bringing the clarity of the sound to where the music should be. The low frequencies can be clearly boosted without ever becoming boomy. Just use it for a moment and you'll be amazed by the magic of this EQ. The appeal of the X81 is its top quality, reviving the vintage sound of the legendary NEVE 1081 as a "brand new" unit with even better sound quality. ■Product Features Low-Cut Filter 50, 80, 160, 220Hz Phase reverse EQ bypass switch Output level meter (-6 to +18dB) Low-EQ 33, 56, 100, 180, 300Hz (±16dB) Input: Hi-Z (TRS phone) / LINE (XLR) / MICROPHONE (XLR) Output: XLR / TRS phone Input level: -20dB to -80dB (mic), +10dB to -20dB (line), 5dB step gain Hi-EQ 3.3, 4.7, 6.8, 10, 15kH (±16dB) Hi-Mid-EQ 8.2, 6.8, 5.6, 4.7, 3.9, 3.3, 2.7, 2.2, 1.8, 1.5kHz (±16dB) Low-Mid-EQ 1.2, 1.0, 0.82, 0.68, 0.56, 0.47, 0.39, 0.33, 0.27, 0.22kHz (±16dB) Hi-Q 2 types of Q switching Output volume 480W x 315D x 43H, 5.6kg Superior transformer / ELMA rotary switch / Class A circuit
