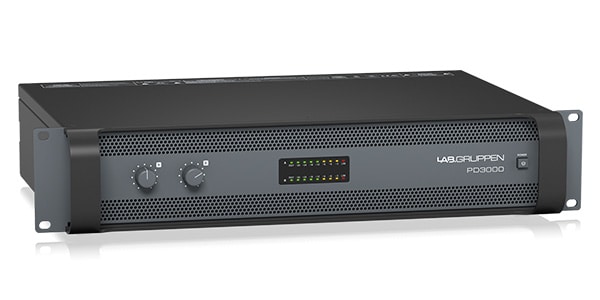

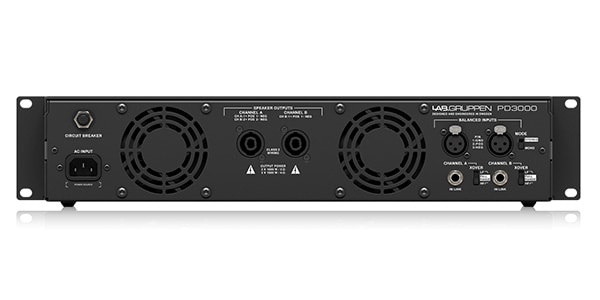

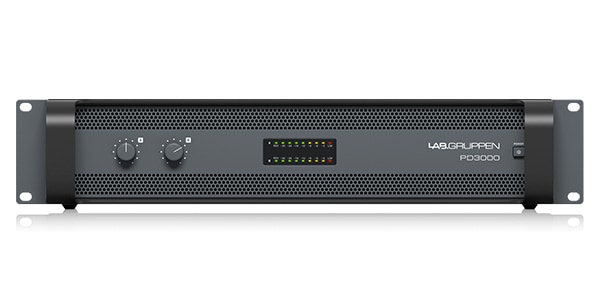

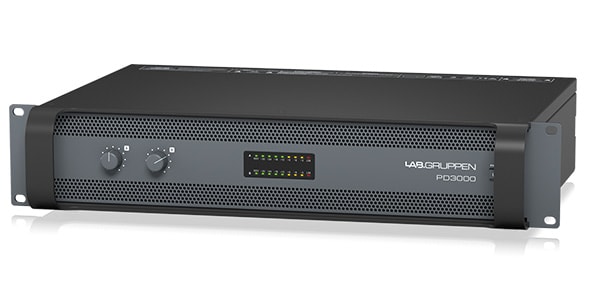

LABGRUPPEN / PD3000

The PDX3000 is a 2 x 1500W power amplifier for entry/mid-level live sound applications.

2×1500W power amplifier for mid-level live sound applications ◆2 channels x 1500W ◆Reliable Class-D amplifier stage ◆Highly efficient Switch Mode Power Supply with minimal impact from power supply voltage (SMPS) ◆ Accurate power management ensures efficiency and performance ◆ Enhanced circuit protection function protects against short circuits and overloads ◆ Equipped with LEDs that display 8-segment signals and limiters for monitoring ◆ Speaker protection limiter at maximum level and reliable driver protection function ◆ Equipped with crossovers for low cut, high cut, and full-range modes ◆ Optimized sensitivity for each XLR and TRS cable ◆ Uses Speakon output ◆ Fan for efficient amplifier cooling ◆ Lightweight rack mount and durable main body ◆ Swedish design and engineering 【Specifications】 ◆ Number of channels: 2 ◆ Total output power: 3000W ◆ Peak output voltage per channel: 115V ◆ Peak output current per channel: 32A ◆ Bridge mode: No ◆ Output circuit: Class-D 【Maximum output】 1CH per ◆ 2Ω: 1000W ◆ 4Ω: 1500W ◆ 8Ω: 800W ◆ Distortion rate (20Hz-20kHz for 1W): <0.1% ◆ Distortion rate (1kHz and 1dB below clipping): <0.1% ◆S/N ratio: >90dB ◆Crosstalk (at 1kHz): >75dB ◆Frequency response: 10 Hz to 20 kHz, +0.5/ -1 dB ◆Input impedance: Balanced 10kΩ, Unbalanced 20kΩ ◆Distortion (at 1/8 rated output): <0.1%【Controls】 ◆Front ◆Power switch ◆Gain control (channels A and B) ◆Rear ◆Stereo/Mono switch ◆Crossover switch: LF / full range / HF ◆Crossover frequency: 100Hz ◆Indicators ◆Power: RDY LEDs lit green ◆Limit (each channel): LIM LEDs lit red ◆Signal (each channel): -30 dB, -24 dB, -18 dB, -12 dB, -9 dB, -6 dB, -3 dB, LEDs lit green/orange ◆Thermal Warning (each channel): RDY LED flashing orange ◆Thermal Warning 90%, PSU: RDY LED (both) red light Thermal fault (each channel): RDY LED flashing red Thermal fault 100%, PSU: RDY LED (both) flashing red Fault (each channel): RDY LED always red light Fault (device): RDY LED (both) always red light Connectors: Input/Link: 2 x XLR, 2 x 1/4” TRS Output: Neutrik Speakon (2 x NLT4) Main connector: Locking IEC plug Power supply: Voltage: Nominal voltage 100V Power consumption @4Ω Rated output: 1050W Dimensions/Weight: Dimensions (H x W x D Height x Width x Depth): 93mm x 483mm x 326mm ◆Weight: 6.5kg ■Protection functions ◆Cooling: Two fans blow air from front to back. With temperature adjustment control speed function ◆Amplifier protection: Thermal protection, DC protection, rail sensing and peak current limiting ◆Load protection: Start-up and shutdown control, DC fault, short circuit protection
