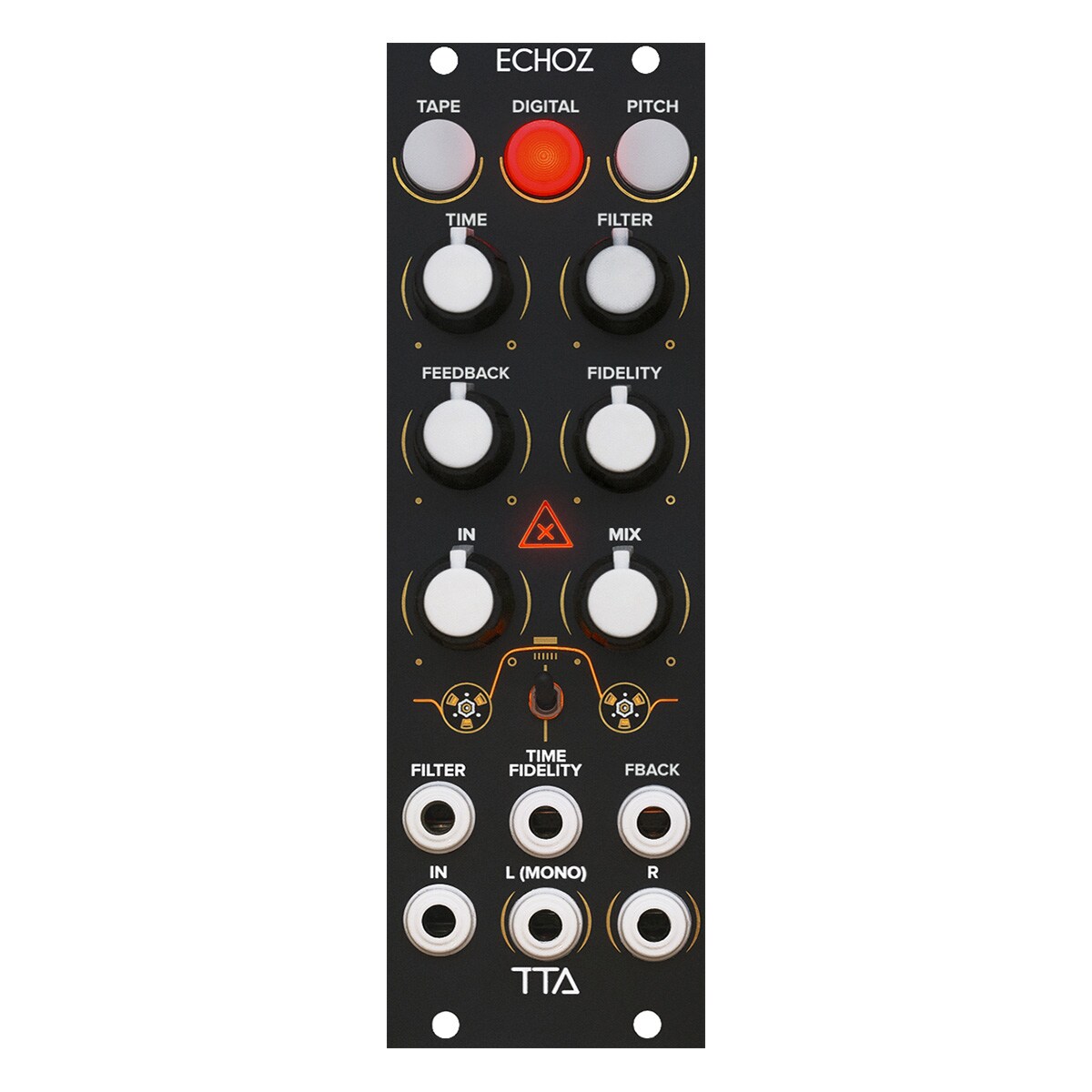

Tiptop Audio / Echoz Time Delay Effect Black

A module made by Tiptop Audio, an up-and-coming American garage maker. It is an effect module with a built-in powerful stereo DSP in spite of its compact 8HP size.

ECHOZ is an effect module with a built-in powerful stereo DSP in a compact 8HP size. Intuitive operation is possible because all parameters have their own knobs. Eight programs are prepared for each of the three bank buttons, and a total of 24 types of effects can be obtained.

Each module has 24 different effects, including the latest programs and carefully selected programs from a library of hundreds of effects developed for Tiptop's classic Z-DSP modules over the last decade or more. Is used. The effect algorithm plays an important role in processing the sound, but by controlling the DSP with an analog clock circuit, it gives the sound an analog richness and warmth. ECHOZ has high performance to produce wonderful sound that existing products do not have.

ECHOZ is a module that outputs 24 types of delay effects, from orthodox ones based on the time axis that are often used in all ages to complex sounds that are experimental and the results can not even be predicted. Built-in. Eight tape / digital / pitch categorized effects are available in each of the three banks. The tape reproduces the sound that emulates the delay of a vintage tape with a texture that is slightly compressed with a limiter. By cascading the effects of moving the tape head with a chorus or unstable LFO in series, you can get a tape sound that exceeds the original. Digital has built-in BBD emulation, ping pong, multi-tap, formant, etc. from a very clear digital delay. Eight types of pitch shifts such as scale / silent scale / floating are possible.

With DSP parameters that can be controlled by CV, and an analog clock, you can obtain complex effects that cannot be imagined on a machine that reproduces only evenly spaced delays.

■ Width: 8HP
■ Depth: 40mm
■ Current consumption
+ 12V: 130mA
-12V: 20mA
* The current consumption differs between the White Panel model and the Black Panel model.
