SENNHEISER / 508915

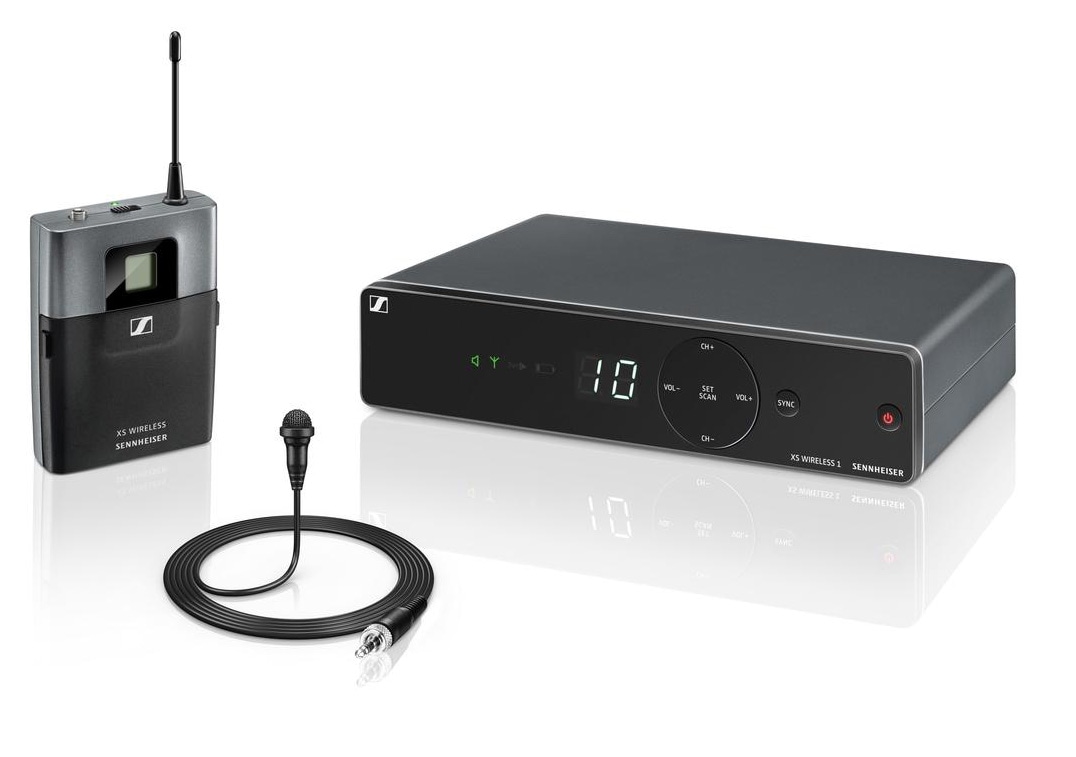

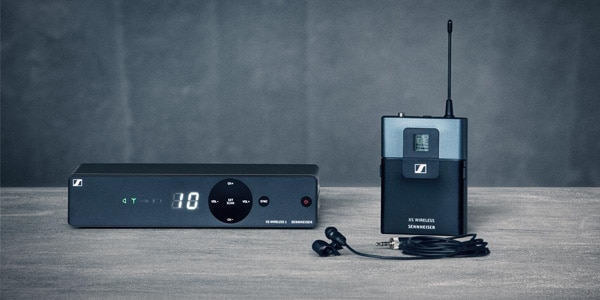

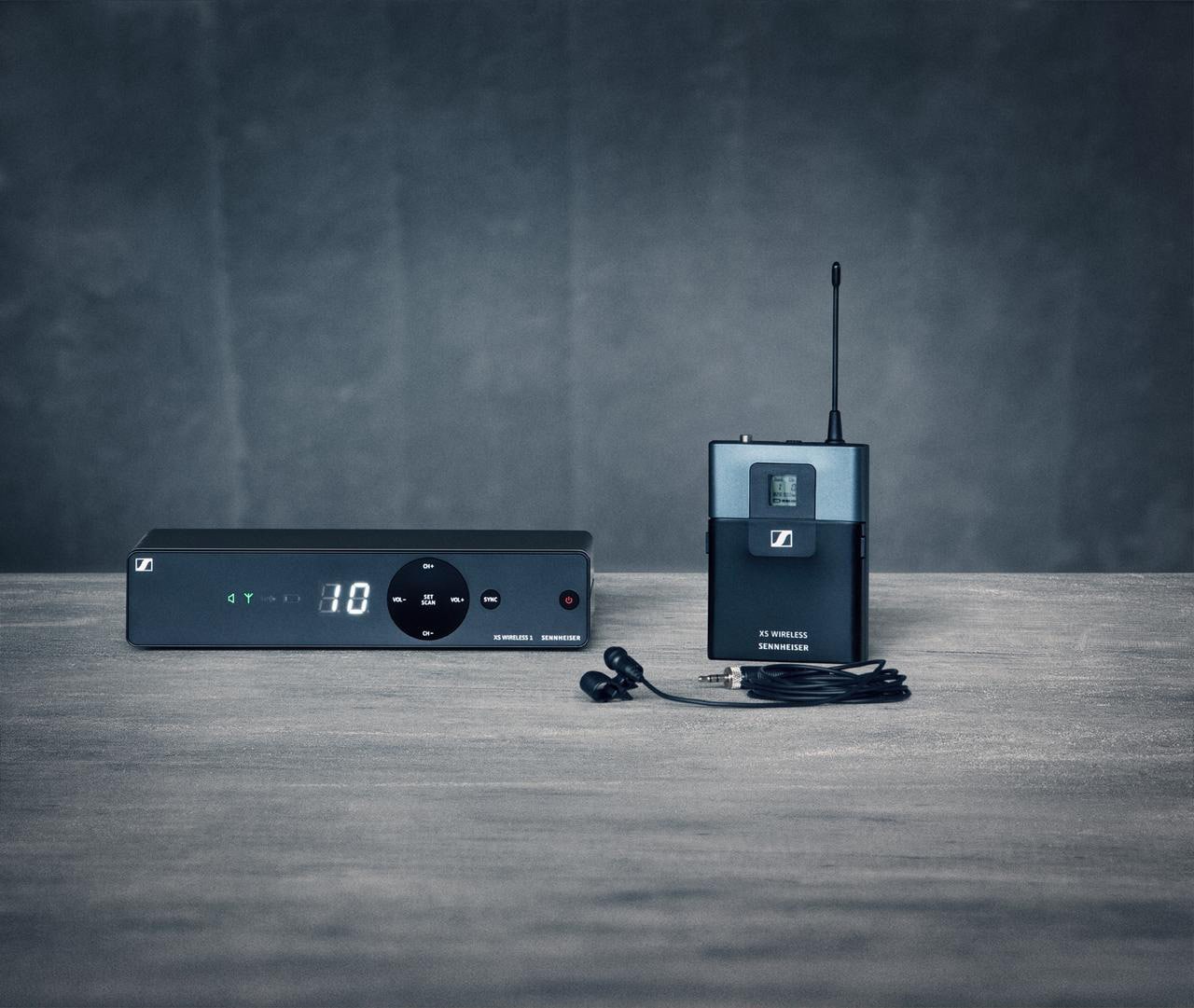

SENNHEISER 1-channel wireless lapel microphone set. Ideal for vocals and speeches.

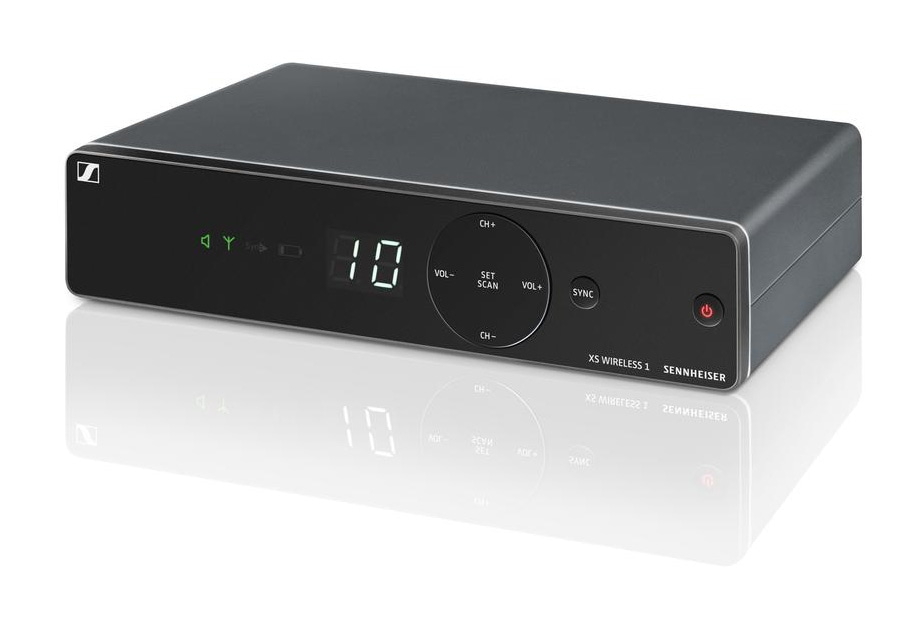

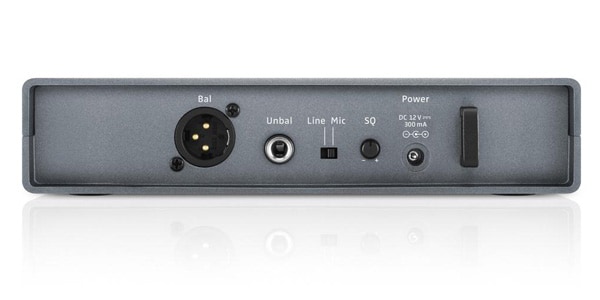

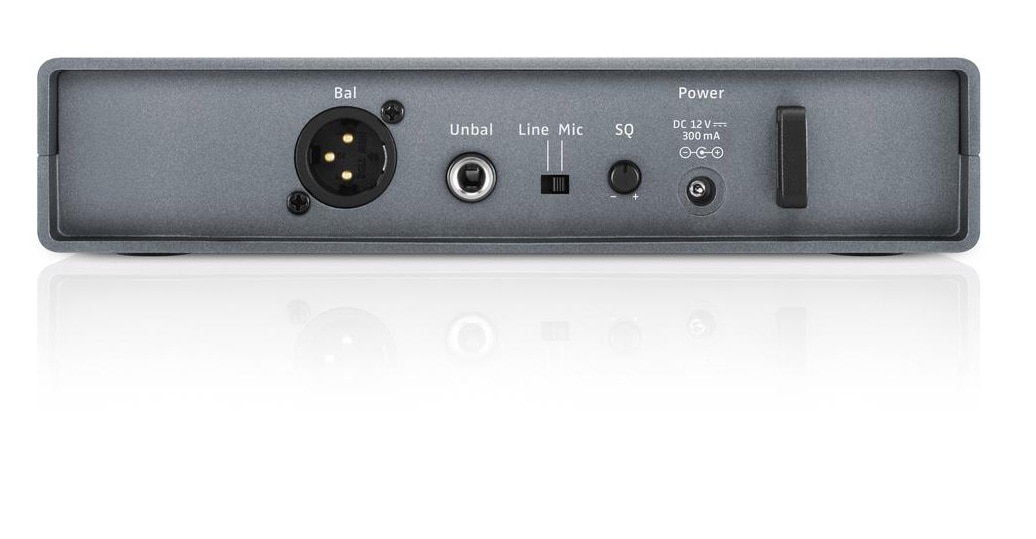

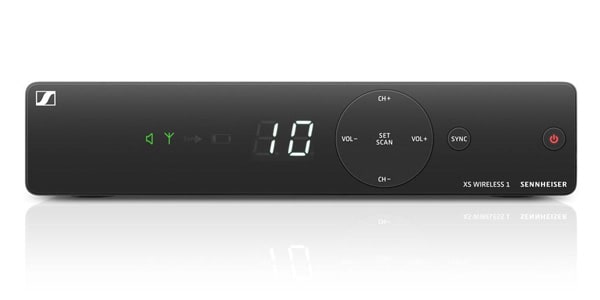

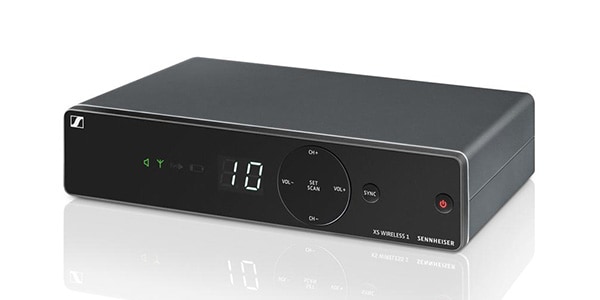

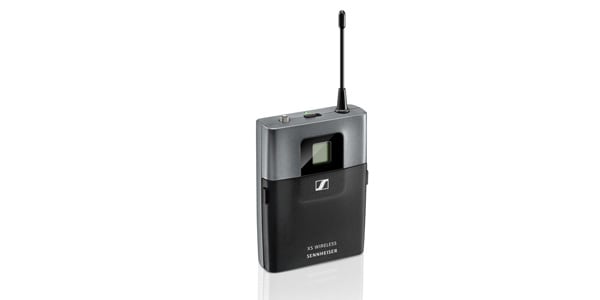

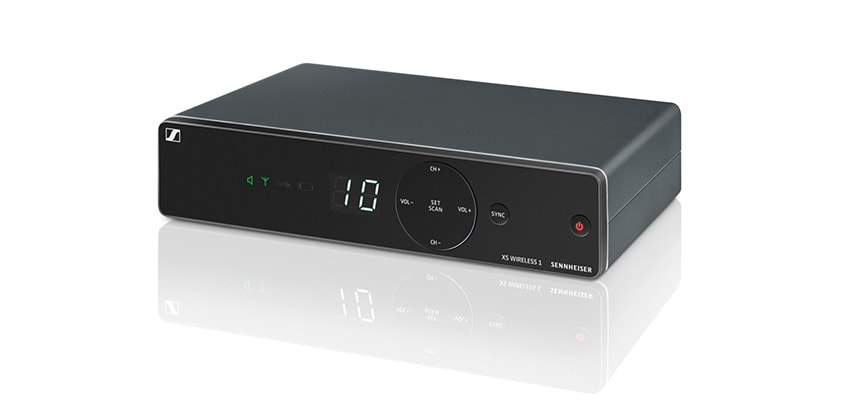

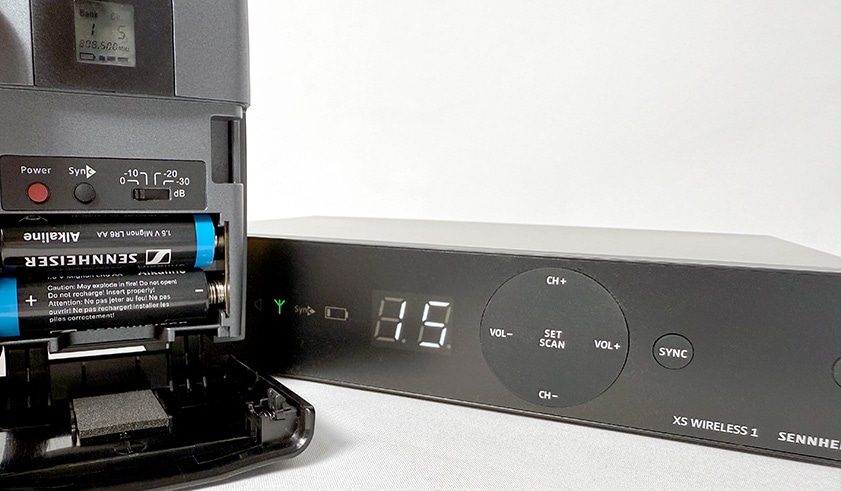

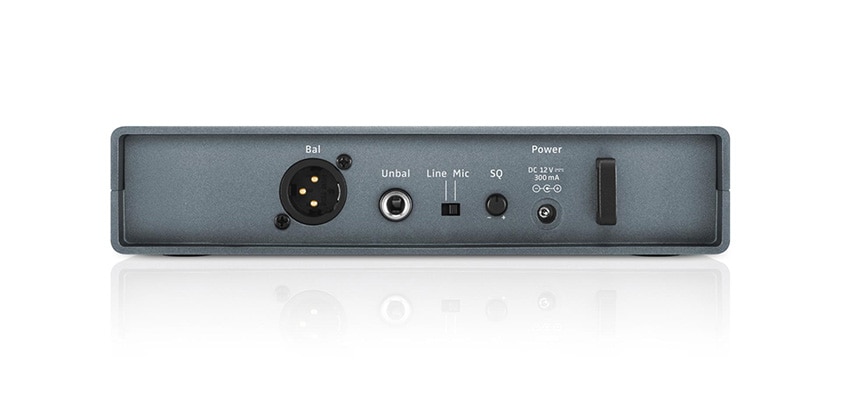

■Overview XS Wireless 1 is a 1-channel wireless system that is ideal for vocals and speech. Designed with ease of use in mind, this analog UHF system features a sleek 1-channel receiver with built-in antenna and the streamlined interface of Sennheiser's popular XS Wireless 1 series. - Easy for anyone to set up - License-free B-type, up to 7 units can be used simultaneously (limited to use when transmitter and receiver are more than 5m apart and transmitters are more than 20cm apart) - Frequency setting is auto-setup with scan function - Handheld transmitter with easy-to-use vertical switch - Runs for approximately 10 hours on two alkaline AA batteries - Receiver has a built-in antenna for easy setup ■Specifications■EM-XSW 1 Modulation: Wideband FM Frequency range: 806.125 - 809.750 MHz Receiving frequency: Select from preset bank channels Receiving method: Antenna diversity Antenna input: Built-in antenna Squelch: Adjustable from 3dBμV to 28dBμV AF output level (peak deviation, 1kHz): 6.3 mm jack: +6 dBu, XLR -3M: +12 dBu Line / Mic level: 20 dB switchable AF output adjustment range: Adjustment range 45 dB (5 dB steps) Signal-to-noise ratio: -103 dBA Power supply: 12 V DC / 300 mA Housing: ABS Dimensions: Approx. 200 x 42 x 127 mm Weight: Approx. 340 g ■SK-XSW Frequency range: 806.125 - 809.750 MHz Transmission frequency: 30 frequencies RF output: 10 mW Mute switch: AF mute Input sensitivity adjustment range: 0 to -30 dB / 10 dB steps AF transmission range: 50 - 16,000 Hz (Line), 80 - 16,000 Hz (Mic) Power supply: 2 x 1.5 V alkaline AA batteries Operating time: Approx. 10 hours Housing: ABS Dimensions: Approx. 71 x 96 x 28 mm Weight: Approx. 95 g ■Included items ・EM-XSW 1 1ch receiver, SK-XSW bodypack transmitter, ME 2 lavalier microphone, NT 12-5CW AC adapter, 2 AA batteries
