PRESONUS / MicroStation BT

PRESONUS / MicroStation BT

  • PRESONUS / MicroStation BT画像1
  • PRESONUS / MicroStation BT画像2
5
  • メーカーサイトManufacturer Site
  • 製品マニュアルProduct Manual
The MicroStation BT is a compact monitor controller that adds a large volume knob and Bluetooth input to your existing near-field monitors. It also features headphone and subwoofer outputs.
■ Monitor Controller

■ Active

■ Bluetooth Input

■ Subwoofer Output

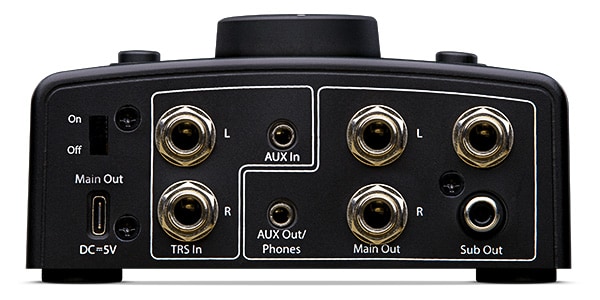

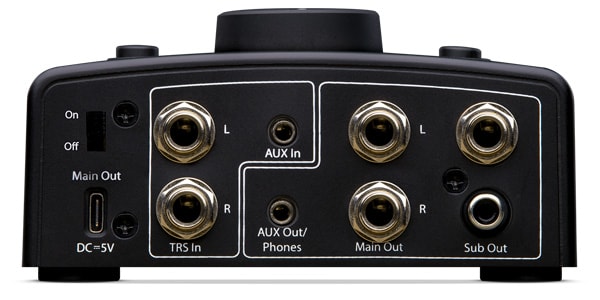

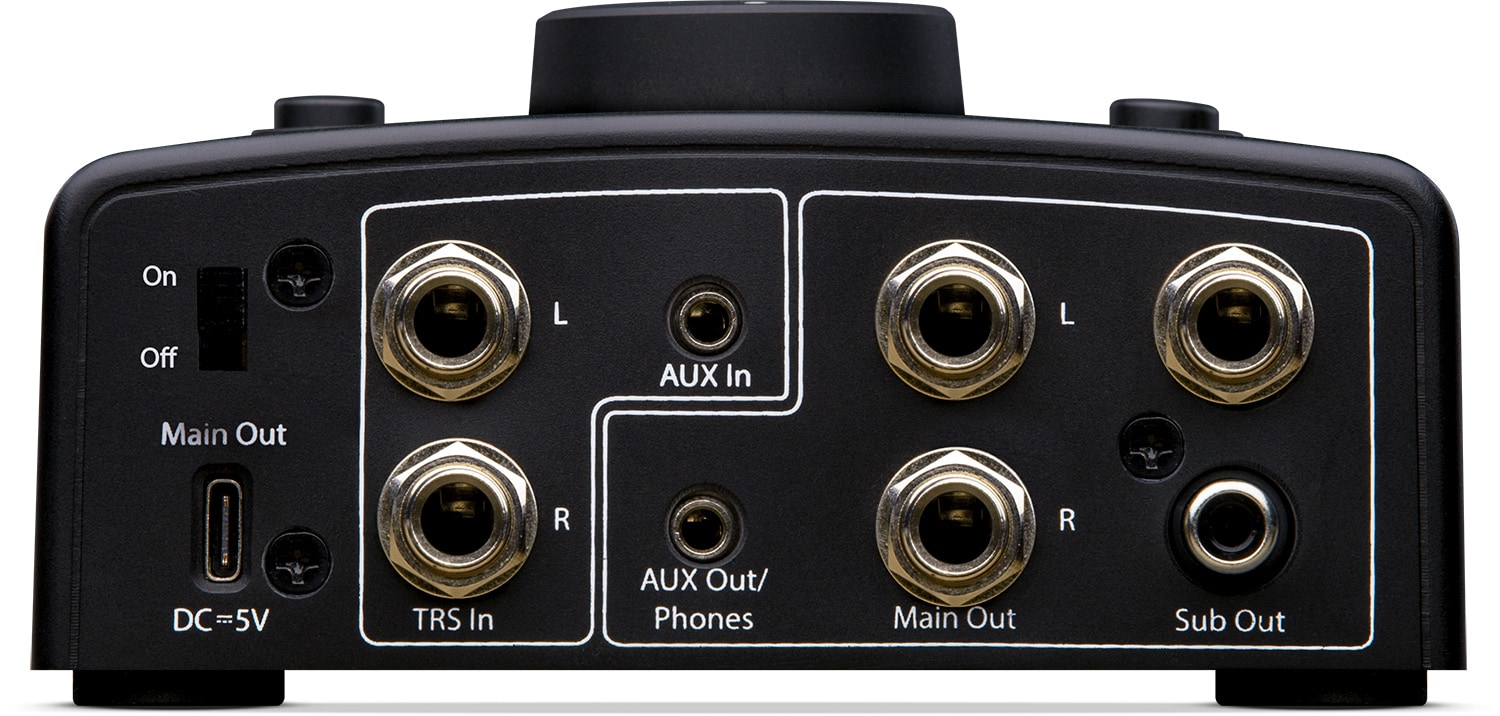

■ Inputs/Outputs

・Add wireless connectivity to any speaker with stereo Bluetooth input

・Easy connection of both professional and consumer audio equipment with balanced 1/4"" TRS stereo pair and 1/8"" TRS stereo input

・Full-range left/right balanced 1/4"" TRS for connecting professional studio/media reference monitors

・Stereo 1/8"" TRS headphone/Aux output for connecting your favorite headphones or outputting to consumer devices for streaming and recording

・Balanced 1/4"" TRS and unbalanced RCA subwoofer outputs for connecting your favorite powered subwoofer

■ Controls

・Large, ergonomically shaped volume knob for controlling full-range and subwoofer levels

・Bluetooth on/off button to switch between Bluetooth and analog sources, and easy-to-use pairing button for quick pairing of your favorite Bluetooth-enabled devices

* Sub-bypass button mutes the subwoofer without muting the full-range speakers.

* LED-equipped mute button mutes speakers or headphones.



■ Audio Input

Main Input

Type: 1/4"" TRS active balanced, 2 channels (stereo)

Dynamic Range: 108dB

Frequency Response: 20Hz?20kHz

THD+N: 0.001%

S/N Ratio: > 102dB

Bluetooth Input

Type: Bluetooth 5.1 (stereo)

Frequency Response: 20Hz?20kHz

Frequency Response: 10Hz?65kHz (±0.5dB)

Aux Input

Type: 1/8"" TRS unbalanced (stereo)

Frequency Response: 20Hz?20kHz

THD+N: <0.01%

Dynamic Range: 108dB

■ Audio Output

Main Output

Type: 1/4"" TRS Active Balanced, 2 channels (Stereo)

Frequency Response: 20Hz?20kHz

THD+N: <0.02%

S/N Ratio: >98dB

Headphone Output

Type: 1/8"" TRS Unbalanced (Stereo)

Maximum Level: 32.5mW/channel

Frequency Response: 20Hz?20kHz

THD+N: <0.50%

Aux Output

Type: 1/8"" TRS Unbalanced (Stereo)

Frequency Response: 20Hz?20kHz

THD+N: 0.001%

Subwoofer Output

Type:

1/4"" TRS Active Balanced, 1 channel (Mono)

RCA Unbalanced, 1 channel (Mono)

Frequency Response: 20Hz?200Hz

THD+N: 0.002%

S/N Ratio: >102dB

■Power Supply

USB Type-C Port

USB-C to USB-A cable included (USB power adapter sold separately)

■Dimensions

External Dimensions

Height: 56mm

Depth: 100mm

Width: 125mm

Weight: 0.45kg
  • コンパクトながら大型のボリューム・ノブを採用

    奥行き100mm x 幅125mmの省スペース・デザインながら、約¼のスペースを占める大型のボリューム・ノブを中央にレイアウト!スムーズ&理想的なトルクによりシビアな音量調整も可能です。そして、Bluetoothオン/オフ・スイッチ、ミュート・スイッチ、サブウーファー専用出力のバイパス・スイッチなどが、エルゴノミクス・デザインで美しくレイアウトされています。

    コンパクトながら大型のボリューム・ノブを採用
  • 有線スピーカーにBluetoothワイヤレス入力を追加

    MicroStation BTに搭載されたBluetoothレシーバーにより、ワイヤレスでスマートフォン内のコンテンツを既存のモニター・スピーカーで再生することが可能となり、リファレンス・ソースやシェアされたトラックなどを素早くチェック可能。アナログ入力は、多くのオーディオ・インターフェースに採用されているプロフェッショナルな¼″TRS入力2系統(L/R)と、民生機の多くに採用されている⅛″ステレオ入力を搭載し、接続する機器を選びません。

    有線スピーカーにBluetoothワイヤレス入力を追加
  • 200Hz以下のサブウーファー専用出力も搭載

    MicroStation BTの出力には、多くのオーディオ・インターフェースに採用されているプロフェッショナルな¼″TRS出力2系統(L/R)と、民生機の多くに採用されている⅛″ステレオ出力を搭載。メイン出力はオン/オフ・スイッチが用意されており、オフにすればヘッドフォン・アンプとしても利用可能です。さらに、Eris E3.5/E4.5などのコンパクト・ニアフィールド・モニターとサブウーファーを併用される方向けに、200Hz以下を出力するサブウーファー専用出力(ネットワーク非搭載)も搭載しています。

    コンパクトなMicroStation BTのボディに惑わされないように!フレキシブルな接続性と直感的なコントロール性を統合したMicroStation BTを一度使用すれば、元のモニタリング環境には戻れないことでしょう。

    200Hz以下のサブウーファー専用出力も搭載
