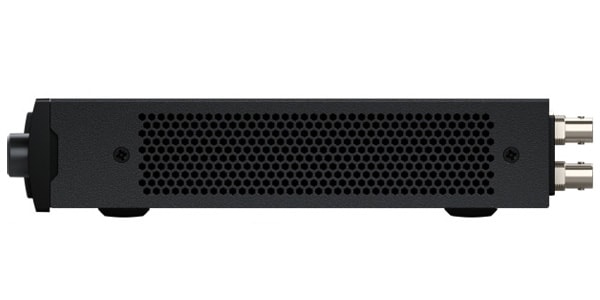

Blackmagic Design / CINSTUDMFT/H/SC

[Official Japanese product] Achieve the same workflow as using SMPTE fiber with a low-cost 10G coaxial Ethernet cable.

■Ethernet converter compatible with Blackmagic Studio Camera 4K Pro Connections ■SDI video inputs: 2 ■SDI video outputs: 2 ■SDI monitor output: 1 ■SDI rates: 1.5G, 3G, 6G, 12G ■Built in speaker: mono ■Analog audio input: 2 channels of analog program audio input via 9 pin connector ■Analog audio output: 1 x 6.35mm headphone jack ■SDI audio input: Return 1 provides 2 channels of program audio (embedded into 1.5G/3G/6G/12G-SDI). 4 channels of talkback channels (13, 14, 15, 16). Return 2 provides 2 channels of audio (embedded into 1.5G/3G/6G/12G-SDI). ■SDI audio output: 2 channels of program audio (embedded into 1.5G/3G/6G/12G-SDI). 4 talkback channels (13, 14, 15, 16) ■Timecode connection: 1 BNC input, 1 BNC output ■Reference connection: 1 BNC input, 1 BNC output, tri-level sync or black burst ■Talkback audio: SDI channels 13 and 14 are engineer talkback. SDI channels 15 and 16 are production talkback. RJ-45 talkback connector (for external analog talkback systems) ■Screen: 2.2" LCD ■Ethernet: 1x 10Gb/s PoE RJ-45 camera connector (for SMPTE fiber workflows over Cat 6A network cable), 1x 1Gb/s (for external control and software updates) ■Computer interface: 1x USB-C Formats ■HD Video Formats: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 ■Ultra HD Video Formats 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 SDI Standards SMPTE 292M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10 Audio Sampling: Television Standard Sample Rate (48kHz/24-bit) Video Sampling: 4:2:2 Color Precision: 10-bit Color Space: REC 709, REC 2020 ■Supported multi-rate SDI can be switched between HD, 3G-SDI, 6G-SDI, and 12G-SDI. ■SIZE: 210 (W) x 44.2 (H) x 226.8 (D) mm 1.44g *The warranty period for this product is one year from the manufacturer.
