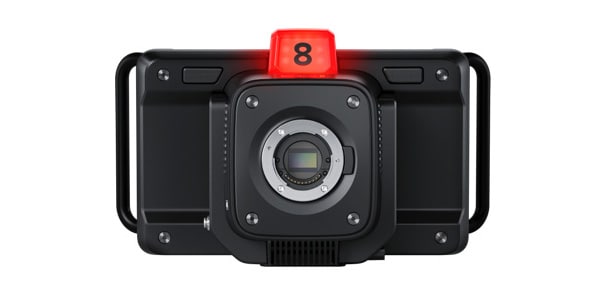

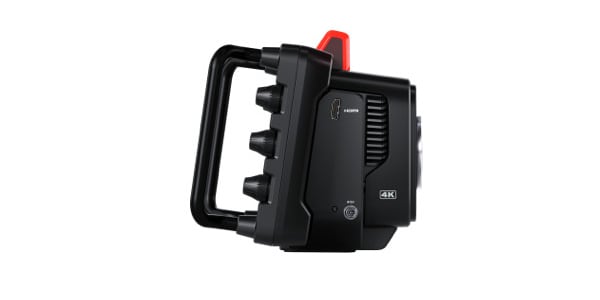

Blackmagic Design / CINSTUDMFT/G24PDD

[Official Japanese product] A high-quality broadcast camera designed specifically for use with ATEM Mini!

Despite being a high-quality broadcast camera, it is designed around HDMI, achieving a low price by eliminating expensive broadcast interfaces! Not only can it send video to ATEM Mini, but it can also send camera control, tally and remote recording triggers to the camera simultaneously using the same HDMI connection, allowing you to set up jobs quickly. ■HDMI camera compatible with ATEM Mini *Lens sold separately. Camera features ■Effective sensor size: 17.78mm x 10mm (Four Thirds) ■Lens mount: Active MFT mount ■Lens controls: Iris, focus, zoom (when using compatible lenses) ■Dynamic range: 13 stops ■Dual native ISO: 0dB and 18dB gain ■Sensitivity at 0dB gain: f11, 2160p59.94 f12, 2160p50 @2,000 lux (89.9% reflectance) ■Signal to noise ratio: 63dB, 2160p ■Shooting resolution: 3840 x 2160 (Ultra HD) up to 60fps ■Frame rates: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60fps. Off-speed frame rates up to Ultra HD at 60fps ■Focus: Autofocus possible with compatible lenses ■Screen Size: 7 inch 1920 x 1200 ■Screen Type: Capacitive LCD touchscreen ■Screen Brightness: 600 nits ■Controls: Touchscreen camera settings and menus. Features rotary settings dial, program button, three assignable buttons (F1, F2, F3), brightness, contrast and peaking adjustment dials. ■Mounting Options: 2 x 1/4 inch tripod mounts, 1 x 3/8 inch tripod mount. Connections ■HDMI 2.0 Video Output: 1 ■Analog Audio Input: 1 x 3.5mm stereo input, can also be used for timecode input ■Analog Audio Output: 1 x 3.5mm mini jack for headphones ■Remote Control: Remote camera control via HDMI ■Computer Interface: 2 x USB Type-C 3.1 Gen1 expansion ports (up to 5Gb/s) for recording to external media, connecting Focus Demand and Zoom Demand. Use USB-C port A for software updates. Audio Microphone: Built-in stereo microphone Built-in speakers: 1 x mono speaker Formats: SD video formats: Not supported HD video formats: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 Ultra HD video formats: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 ■HDMI audio sampling: Standard television sample rate (48kHz/24-bit) ■SIZE: 273.6 (W) x 167.3 (H) x 169.7 (D) 1.94 kg *The warranty period for this product is 1 year from the manufacturer.
