ATV / A-PRO-1 Ver.2 240p compatible compact AV mixer

A compact AV mixer that can process two 4K / 60P HDMI video and audio signals. [Ver.2]. Supports "ROI cutout function" that can cut out and enlarge the image of one 4K camera and high frame processing up to 240p required for e-sports.

■ Compact AV mixer. 240p compatible
■ Input terminal (MAIN IN):
Terminal: HDMI Type A connector
Standard: HDMI2.0 (18Gbps), HDCP2.2 / 1.4
Video format: 3840x2160 / 60p / 59.94p / 50p / 30p / 29.97p / 25p / 24p
/ 23.98p / 1920x1080 / 240p / 239.76p / 200p / 144p / 120p / 119.88p / 100p
/ 60p / 59.94p / 50p / 30p / 29.97p / 25p / 24p / 23.98p
1280x720 / 60p / 59.94p / 50p / 30p / 29.97p / 25p / 24p / 23.98p
720x480 / 60p / 59.94p (16: 9) 720x576 / 50p (16: 9)
Color format: 12bit YCC4: 2: 2, 8bit YCC / RGB4: 4: 4, 8bit YCC4: 2: 0
Audio format: Linear PCM, 16-24bit, 44.1-96kHz, 2-8ch

■ Input terminal (SUB IN)
Terminal: HDMI Type A connector
Standard: HDMI2.0 (18Gbps), HDCP2.2 / 1.4
Video format: 3840x2160 / 60p / 59.94p / 50p / 30p / 29.97p / 25p / 24p / 23.98p
1920x1080 / 240p / 239.76p / 200p / 144p / 120p / 119.88p / 100p
/ 60p / 59.94p / 50p / 30p / 29.97p / 25p / 24p / 23.98p
1280x720 / 60p / 59.94p / 50p / 30p / 29.97p / 25p / 24p / 23.98p
720x480 / 60p / 59.94p (16: 9) 720x576 / 50p (16: 9)
Color format 12bit YCC4: 2: 2, 8bit YCC / RGB4: 4: 4, 8bit YCC4: 2: 0
Audio format Linear PCM, 16-24bit, 44.1-96kHz, 2-8ch
■ Output terminal (MAIN OUT):
Terminal: HDMI Type A connector
Standard: HDMI2.0 (18Gbps), HDCP2.2 / 1.4
Video format: 3840x2160 / 60p / 59.94p / 50p / 30p / 29.97p / 25p / 24p / 23.98p
1920x1080 / 240p / 239.76p / 200p / 120p / 119.88p / 100p / 60p / 59.94p
/ 50p / 30p / 29.97p / 25p / 60i / 59.94i / 50i
Color format: 12bit YCC4: 2: 2, 8bit YCC / RGB4: 4: 4, 8bit YCC4: 2: 0
Audio format: Linear PCM, 24bit, 48kHz, 2-8ch
■ Output terminal (SUB OUT):
Terminal: HDMI Type A connector
Standard; HDMI2.0 (18Gbps), HDCP2.2 / 1.4
Video format: 3840x2160 / 60p / 59.94p / 50p / 30p / 29.97p / 25p / 24p / 23.98p
1920x1080 / 240p / 239.76p / 200p / 120p / 119.88p / 100p / 60p / 59.94p
/ 50p / 30p / 29.97p / 25p / 60i / 59.94i / 50i
Color format: 12bit YCC4: 2: 2, 8bit YCC / RGB4: 4: 4, 8bit YCC4: 2: 0
Audio format: Linear PCM, 24bit, 48kHz, 2-8ch

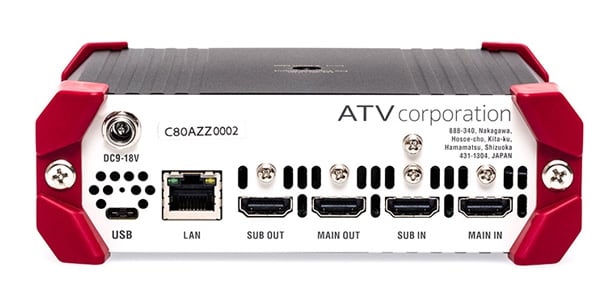

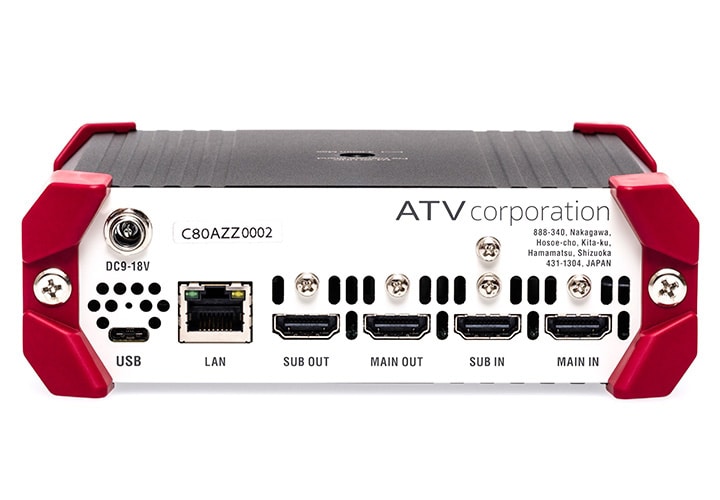

■ Other terminals:
USB2.0 terminal: USB Type C connector
Standard: USB 2.0 Full Speed ​​(FS)
LAN terminal: RJ45
Standard: 10/100/1000 Base-T
TELNET (remote), UDP (interlocking), FTP (still image), SNMP (trap), SNTP (time)
DC IN terminal: DC jack with screw lock
Input voltage: 9-18V
Power consumption: 24W
* USB is for remote control and update. It does not support video and audio input / output.
■ SIZE: 158 (W) x51 (H) x147 (D) mm 750g (excluding AC adapter)
■ Operating temperature: + 0 to + 40 ° C
■ Included items AC adapter, startup manual
* Product specifications and appearance are subject to change without notice for improvement.
