DUAL CABLE
RCA pin -RCA pin (dual)
OYAIDE/ d+ RCA for TurnTable classB 2.0m

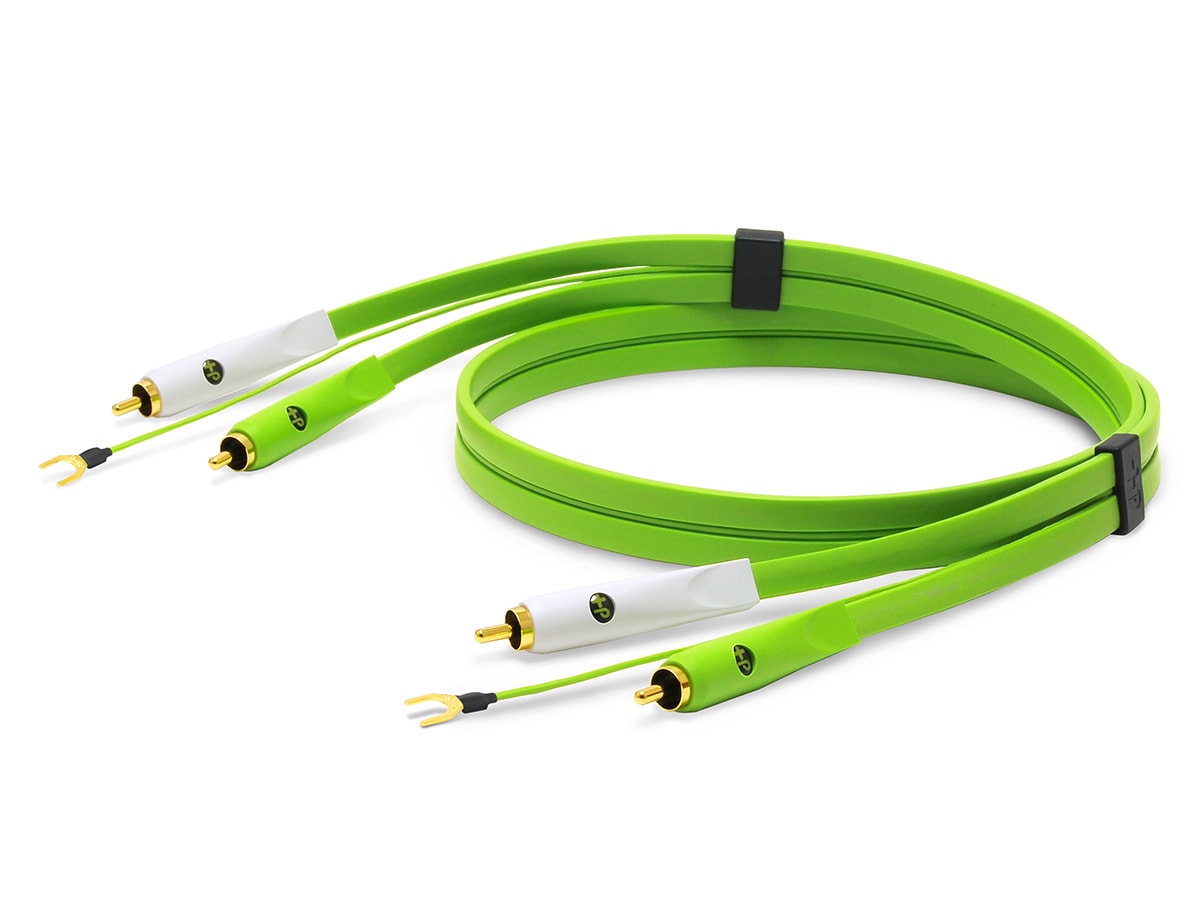

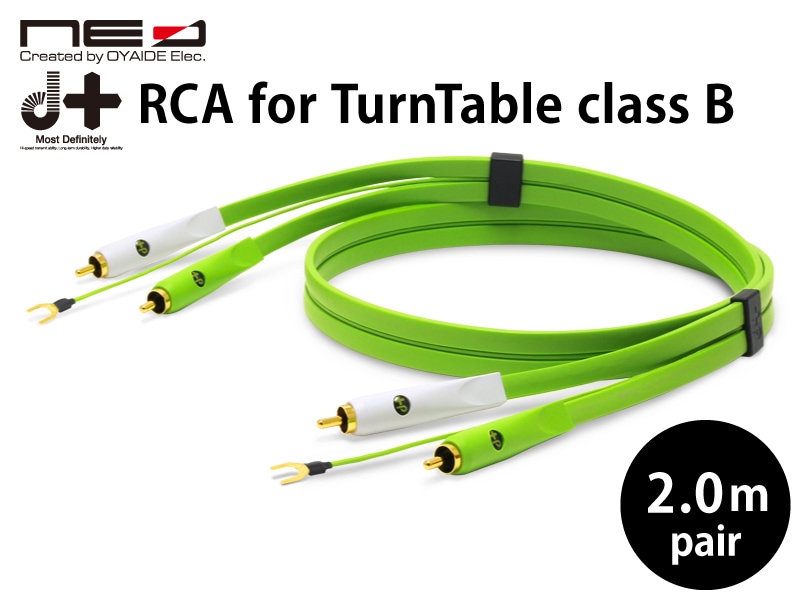

OYAIDE / d+ RCA for TurnTable classB 2.0m

Variations

An analog cable with excellent strength that has passed the world standard durability test. The integrated ground wire enhances functionality, and the internal structure is shielded to stabilize the conductor and insulator, providing a high shielding effect that suppresses the generation of noise. The familiar flat cable avoids transmission loss, impedance changes, and capacitance changes.

■ Newly developed cable with a focus on quality and durability
Functionality is enhanced by integrating the ground wire, and the internal structure is shielded to stabilize the conductor and insulator, and to demonstrate a high shielding effect that suppresses the generation of noise.

■ Cable with flat design
It avoids transmission loss, impedance change, and capacitance change caused by distortion inside the cable when bent.

■ Optimal spatial expression and high-quality sound balance without distortion
It has sound quality that is not an exaggeration to say that it is an audio grade. An excellent must-have item when playing vinyl records.

■ Structure to prevent deterioration of sound quality
High-purity OFC (oxygen-free copper) with high conductivity is used for everything from cable conductors to shields to ground wires. Inverted concentric twisting is used for the conductor structure, and the wires that are evenly twisted to increase the density between the wires eliminate random gaps and prevent distortion between the wires.

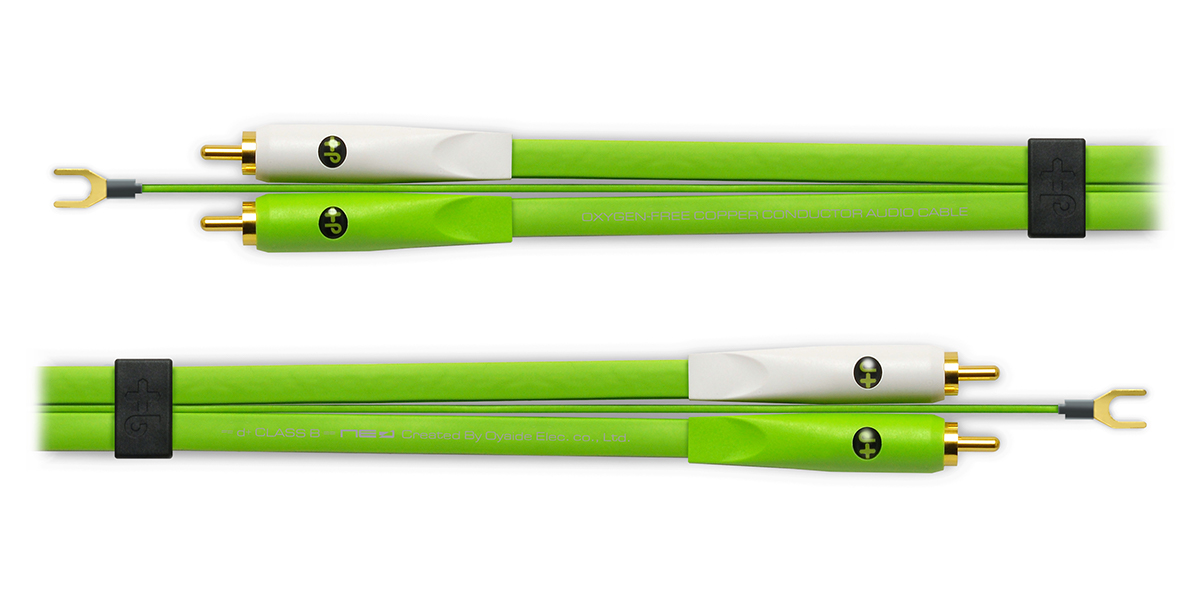

■ 24K gold-plated coating on Y terminal
Not only for durability, but also for listening at high volume, it maintains a good sound balance without distortion in the optimum spatial expression.

■ Appeal the insistence with a cable with high design
Excellent design that enhances motivation, easy to identify even in dark places such as club sites and DJ booths, condensing ideas rich in DJ usability such as cable & plug color, and sticking to both sound and looks I will appeal that firmly.

■ d + series
■ Length: 2m
■ Structure: Two 1-core shields are parallel (earth line mediation between the two)
■ Conductor: High-purity oxygen-free copper 20AWG (21 / 0.18mm)
■ Insulator: HDPE (High Density Polyethylene)
■ Shield: High-purity oxygen-free copper braided shield (16/8 / 0.08mm)
■ Sheath: PVC
■ Ground: Wire High-purity oxygen-free copper 23AWG (12 / 0.18mm)
■ Plug / Y terminal: 24K gold-plated coating
■ Capacitance: 150pF / m

* Release date: May 28, 2021
