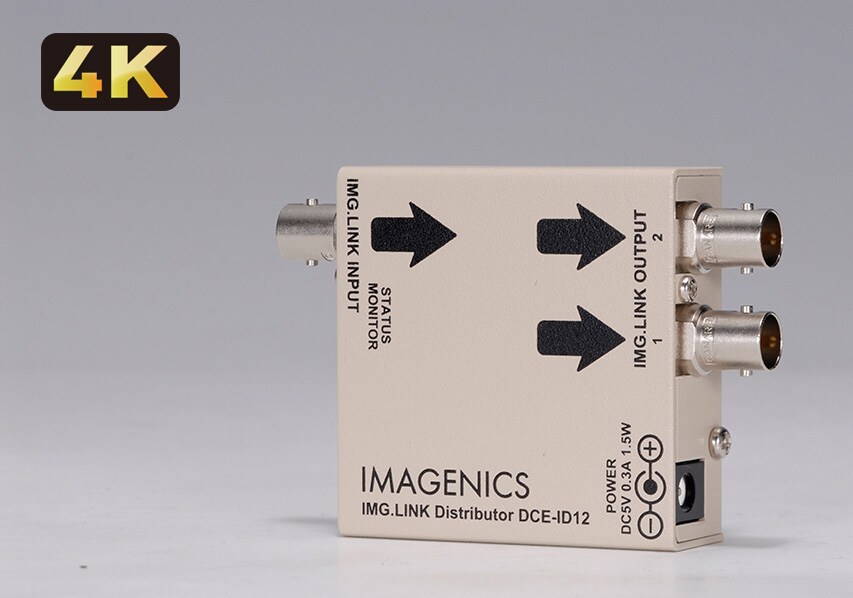

IMAGENICS / DCE-ID12

A compact 2-way distributor exclusively for the IMG.Link original digital serial video signal output from CRO-DCE15TX, DCE-H1TX, etc.

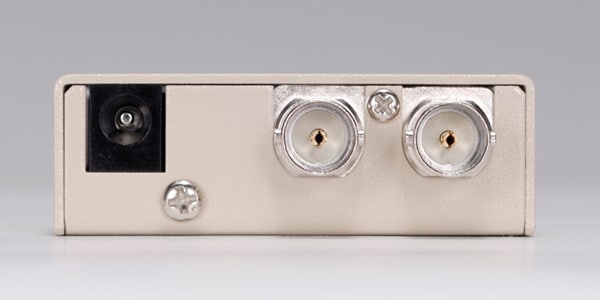

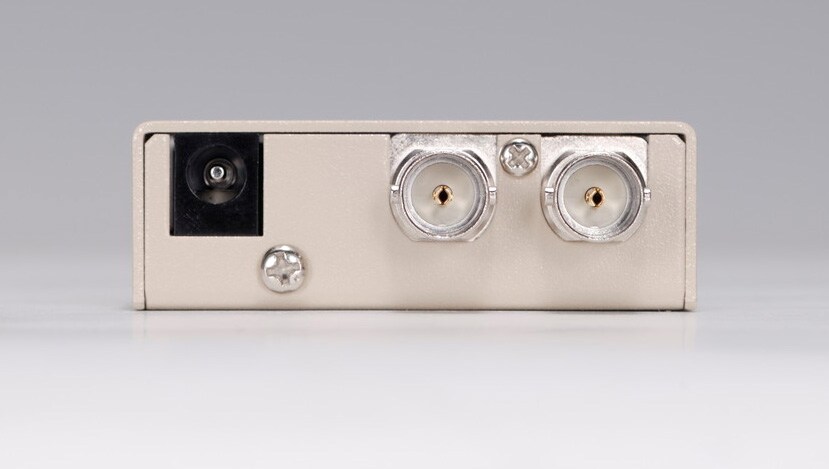

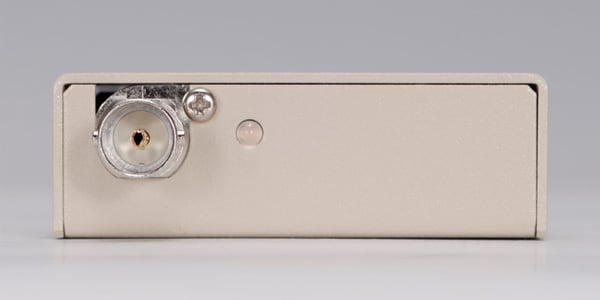

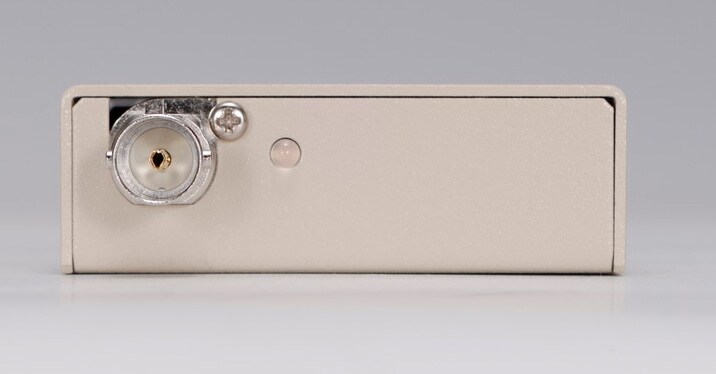

■IMG.Link2 distributor ■Input digital serial video signal Digital serial signal by original re-encoding method 1 system 1.0 Vp-p 75 Ω BNC x 1 Video bit rate after original re-encoding 2.592 Gbps NRZI signal (fixed bit rate, audio is 9.216 Mbps) Output digital serial ■Video signal: Digital serial signal by original re-encoding method 1 system 2 distribution 1.0 Vp-p 75 Ω BNC x 2 Video bit rate after original re-encoding 2.592 Gbps NRZI signal (fixed bit rate, audio is 9.216 Mbps) Original bidirectional communication link function (OUT-1 only) ■Coaxial transmission distance: L-7CHD: 210m, L-7CFB: 150m, L-5CFB: 110m, L-5C2V: 60m, L-3CFB: 60m, L-3C2V: 30m ( (The distance may be shorter depending on the installation environment, etc.) ■Number of daisy chain levels: Up to 4 levels possible ■Other functions: 2-color LED indicates input signal status. (Indicates power status and input signal reception status) ■Notes: When using this unit in combination with an IMG.Link transmitter (CRO-DCE15ATX, DCE-H1TX, DCE-112TX, etc.), use the transmitter's EDID settings with the built-in data (emulation function). For details, refer to the instruction manual for each device. ■Power supply: DC 5 V 0.3 A ■Power consumption: 1.5 W (maximum) ■Weight: Approximately 150 g (main unit only) Approximately 200 g (including wing-shaped angle) ■SIZE: 60 (W) x 20 (H) x 60 (D) mm (excluding protrusions) ■Accessories: AC 100 V 27 VA 50 Hz / 60 Hz Domestic-only AC adapter 1 unit (5 V 2.3A output) Wing-shaped angle (general-purpose mounting bracket) 1 piece
