ATOMOS / SHOGUN 7

HDR monitor / recorder / switcher ATOMOS / SHOGUN 7 designed for movie and video professionals. Equipped with a function to monitor 4 ISOs and record at the same time. By using a camera that supports HDMI 2.0, you can record at a maximum of 4Kp60.

■ 7 inch HDR Pro, Movie Production Monitor / Recorder / Switcher
Shogun 7 body, Master Caddy II x1,
12V-3A AC adapter x1, carry case x1,
Quick start guide x1
■ Touch screen

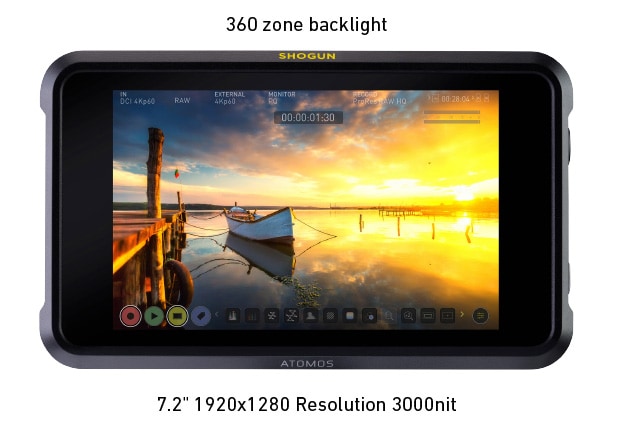

・ Screen size: 7.2 type
・ Screen resolution / PPI:
1920 x 1280/325 PPI
・ Aspect ratio (video display): 16: 9
-Supported color gamut: Up to a wide color gamut (105% DCI-P3)
・ LUT support: 3D LUT (.cube format)
・ Support for anamofix quiz:
2x, 1.5x, 1.33x
・ LCD / touch panel:
Dynamic Atom HDR Zone Backlight IPS LCD
■ Dynamic Atom HDR technology
・ Backlight: Direct LED
・ Zone: 360 direct backlight LED
-LED: Wide color calibration D65 or D95
・ LCD drive bit depth: 10-bit (8 + 2 FRC)
・ Color: DCI-P3 105%
・ Maximum brightness: 3000nits (+/- 10%)
・ LED control: Analyze brightness in real time
・ HDR conversion: Log / RAW to HLG or PQ
■ HDR monitoring
・ Gamma:
Sony SLog / SLog2 / SLog3 Canon CLog / CLog2 / Clog3 ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600 Panasonic Vlog JVC JVC JLog -Log PQ10k HLG
・ Gamut:
Sony SGamut / SGamut3 / SGamut3.cine Canon Cinema / DCI P3 / DCI P3 + Nikon Bt2020 Panasonic V Gamut Arri Alexa Wide Gamut Rec709 / BT.2020 JVC RED WideGamut / RED DragonColor / DragonColor2 / RED Color2 / RED Color3 / RED Color4
■ Video input terminal:
・ HDMI:
1 x HDMI (2.0)

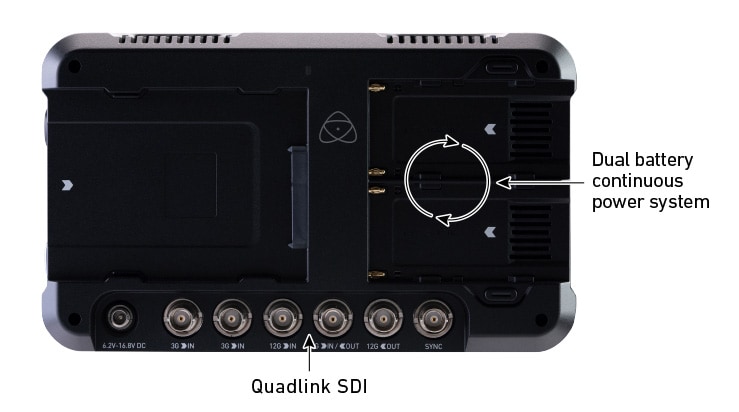

・ SDI: Quad Drink 4x 3G / 6G SDI *, 4x 3G-SDI,
2x 12G single link SDI
* Scheduled to be supported by firmware update
-Compatible video input signal
Uncompressed 10 / 8bit 4: 2: 2 (depending on the camera)
・ Genlock
Input signal, output signal
■ Video output terminal:

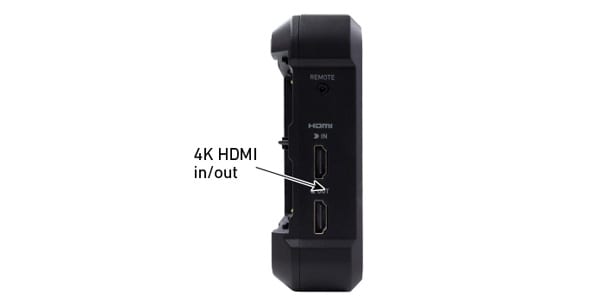

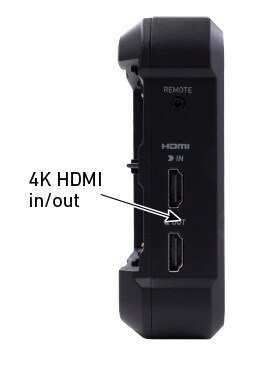

・ HDMI: 1 x HDMI (2.0)
・ SDI: 1x 4K-SDI 12G, HD-SDI 3G / 6G
-Supported video output signal:
Uncompressed 10 / 8bit 4: 2: 2 (depending on the playback video)
■ Supported codecs / frame rates (recording & playback)
・ Raw to:
ProRes RAW
ProRes
CinemaDNG
(CDNG up to 4k30p only)
Avid DNxHD
・ Sony ^^ FS700, FS-5, FS-5MkII, FS-7, FS-7MkII:
4K DCI; 24/25/30/50 / 60p
4K UHD; not supported in camera
2K; 24/25/30/50/60/100/120/200 / 240p
1080; not supported in camera
・ Canon / C300MKII / C500:
4K DCI; 24/25 / 30p
4K UHD; 24/25 / 30p
2K; not supported in camera
1080; not supported in camera
・ Panasonic / Varicam LT, EVA1:
5.7K DCI; 24/25 / 30p (EVA1 ProRes RAW only)
4K DCI; 24/25/30/50 / 60p
4K UHD; 24/25/30/50 / 60p
2K; 24/25/30/50/60/100/120/200 / 240p
1080; not supported in camera
-Corresponding basic resolution and frame rate from the camera:
4K DCI: 23.98 / 29.9 / 59.94p
4K UHD: 23.98 / 29.9 / 59.94p
2K DCI: 23.98 / 29.9 / 59.94p
1080p: 23.98 / 29.9 / 59.94p
-From gaming consoles and graphics cards
Corresponding frame rate and resolution:
1080p; 24/25/30/50/60/100/120
^^ RAW output requires optional unit (XDCA-FS7) or paid update
Onboard processing (format conversion)
■ Audio input / output
・ HDMI:
2 / 8ch 48kHz 24bit (depending on the camera)
・ SDI:
12ch 48kHz 24-bit

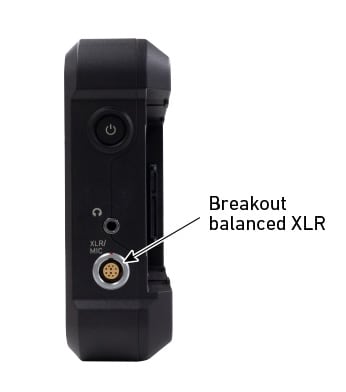

・ Analog audio:
2ch balanced input compatible XLR breakout cable
(XLR output is supported by an optional cable)
Dynamic range 90 dB or more,
Maximum signal level + 24dBu, maximum gain + 52dB
Supports 48V phantom power, 2ch 48kHz 24bit
・ Headphone output:
3.5mm 2ch
・ Built-in speaker:-
■ Remote control function
・ HDMI: HDMI Rec Trigger
Compatible with Canon, Sony, and other camera manufacturers
・ SDI: SDI Rec Trigger
Select camera from the SDI trigger menu
·others:
LANC slave mode
■ Playback function
・ Playlist: Correspondence
・ Genlock / LTC: Compatible
-CDNG (recorded file): Playback not supported
・ ProRes:
Playback support (slow playback for 2K / HD 100p and above)
・ DNxHR / DNxHD:
Playback support (slow playback for 2K / HD 100p and above)
■ Recording function:
・ Pre-roll recording:
Compatible (HD 8 seconds, 4K 2 seconds)
・ Custom time lapse:
Scheduled to be supported by firmware update
-Recordable media *:
2.5 type SSD
・ Master caddy (media case):
75mm x 105mm x 12mm
-USB docking station:
2.5-inch SATA, USB 2.0 / 3.0 / USB-C 3.1 (sold separately)
・ Supported editing software:
Final Cut Pro / Media Composer / Premiere Pro / After Effects / EDIUS / Vegas Pro / Lightworks / Autodesk Smoke
■ Mounting screw holes:
Top: 1/4 inch x 1, Bottom: 1/4 inch x 1
■ Housing material
■ ABS resin
■ SIZE: 214 (W) x127 (H) x45 (D) mm 709g
* Does not include batteries
