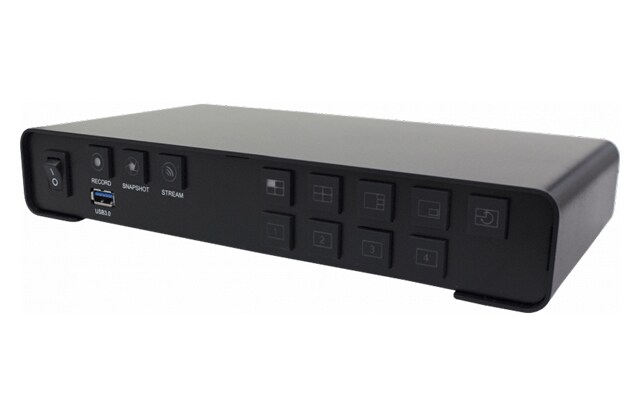

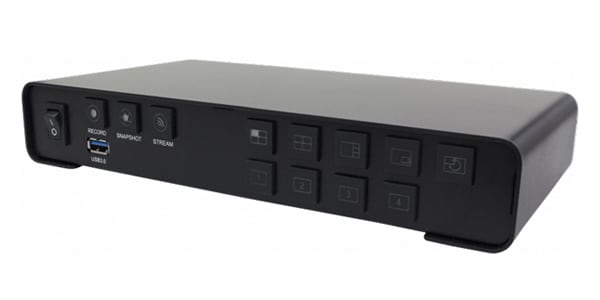

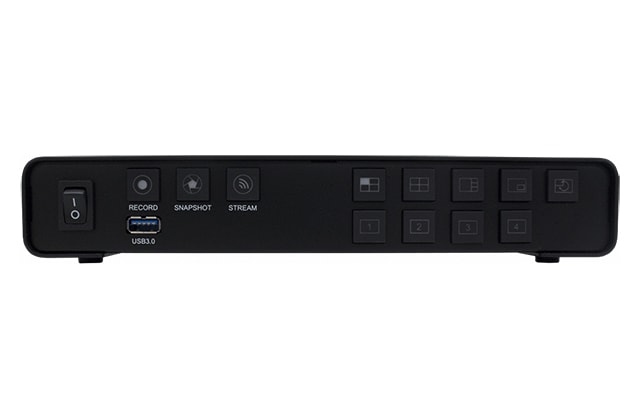

MEDIAEDGE / SC6D0N4 HDMI

An HDMI streaming encoder that encodes a total of 5 channels of video sources in real time, with 4 HDMI inputs and 1 composite screen (PGM). Encoding for live distribution services that support RTMP formats such as Youtube and Nico Nico Douga. The video is clear in 5 types of video modes including "Picture in Picture"!

■ Supported frame rates:
Up to 60/50 frames @ 1920x1080p x 5
(4 HDMI + 1 PGM total 5ch)
■ Encode mode:
Real-time hardware encoding
video
・ H.264 / AVC Baseline / Main / High Profile
・ Maximum bit rate 64Mbps
audio
・ AAC-LC
-Supported bit rates from 32kBps to 384kBps
・ Sampling rate 48KHz 16bit

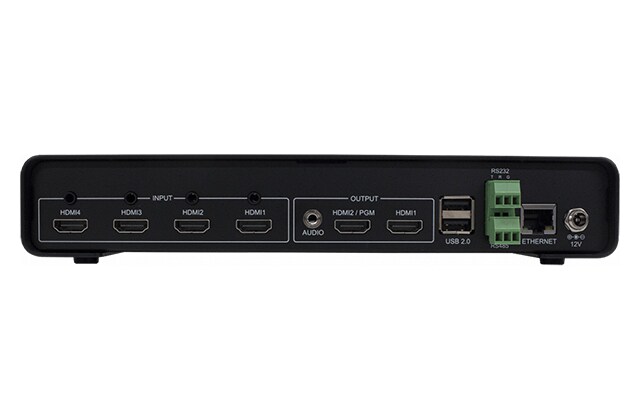

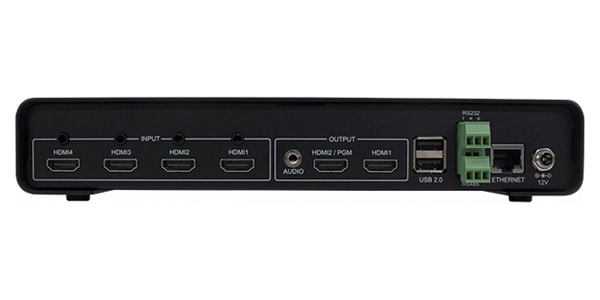

■ Input interface:
Video input
HDMI x 4 audio input
3.5mm Phone Jack x 4
■ Output interface:
Video output (progressive output only)
HDMI (multi-view / PGM) x 1
HDMI (PGM) x 1 Audio output
3.5mm Phone Jack x 1
■ Supported input resolution:
1920 × 1080 (60p / 50p / 30p / 25p / 24p / 60i / 50i)
1280 x 720 (60p / 50p)
1280 x 1024 (60p)
1280 x 960 (60p)
1024 x 768 (60p)
800 x 600 (60p)
720 x 480 (60p / 60i)
640 x 480 (60p)
720 x 576 (50p / 50i)
■ Supported encoding resolution:
From a minimum of 160 x 120 to 1920 x 1080 (60p)
Built-in downscaling function
■ Network interface:
RJ45 10/100 / 1000Mbps Ethernet
Built-in DCHP client function
■ Supported delivery protocol:
RTSP over UDP / TCP / Multicast / HTTP
RTMP (Publish)
TS over IP
HLS
■ Supported recording formats:
MP4 / TS / AVI / MOV
■ Others
Two encoding formats for each channel
Delivery to 2 locations for each channel
RS-485 x 1 / RS-232C x 1
USB2.0 host x 1 (for keyboard and mouse)
USB3.0 host x 1 (for recording storage)
Supports recording, still image capture, and distribution
PGM mode: full screen, 4-screen split, picture-in-picture, loop
■ Power supply:
DC input 12V 2A (supplied from AC adapter)
■ Maximum power consumption: Approximately 19.5W
