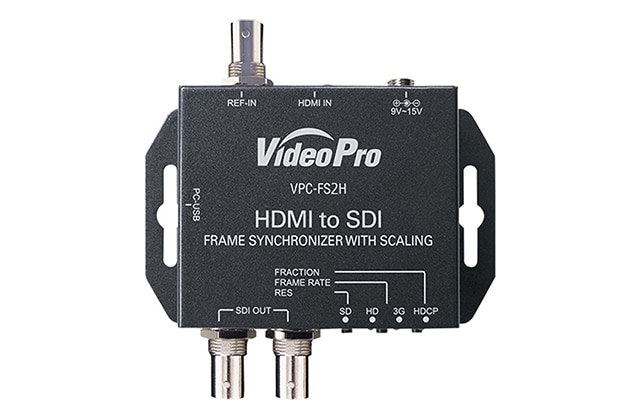

MEDIAEDGE / VPC-FS2H　HDMI to SDI Converter

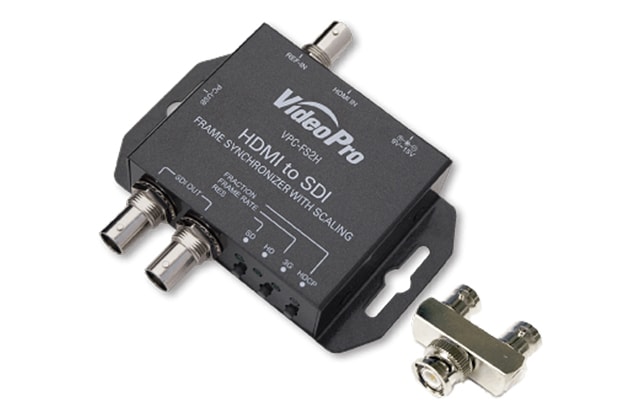

Converts the HDMI signal to the specified resolution and frame rate and outputs it from the SDI terminal. Supports G, HD and SD resolutions. It is also possible to daisy chain one sync signal to four FS2Hs using the included connector.

■ HDMI to SDI converter
■ HDMI input compatible resolution
720 x 480 i60, p60 / 720 x 576 i50, p50 / 1280 x 720 p60, p50 /
1920 × 1080 i60, i50, p24, p25, p30, p60, p50 /
640 x 350 p85 / 640 x 400 p85 / 720 x 400 p85 /
640 × 480 p60, p72, p75, p85 / 800 × 600 p56, p60, p72, p7, p85 /
848 x 480 p60 / 1024 x 768 p50, p59, p60, p70, p75, p85 /
1152 x 864 p70, p75 / 1280 x 768 pRB, p60, p75, p85 /
1280 x 800 p60, p75, p85 / 1280 x 960 p60, p75, p85 /
1280 x 1024 p60, p75, p85 / 1360 x 768 p60, p50, p60 /
1400 x 1050 p50, p59, p60, p75 / 1440 x 900 p60, p75, p85 /
1600 x 1200 p50, p59, p60, pRB / 1680 x 1050 pRB, p60 /
1920 x 1200 pRB / 2048 x 1052 p60 / 2048 x 1080 p50, p59, p60
■ SDI output resolution

720 x 480 59.94i / 720 x 576 50i /
1280 x 720 25p, 30p, 50p, 59.94p, 60p /
1920 × 1080 50i, 60i, 59.94i /
1920 × 1080 24p, 25p, 30p, 50p, 59.94p, 60p, 23.98p, 29.97p
■ SDI format
SD-SDI (SMPTE 259M)
HD-SDI (SMPTE 292M)
3G-SDI (SMPTE 424M / SMPTE 425M) Level A only
■ Audio input:
HDMI embedded audio (8ch)
■ Sample rate:
Automatically resample to 48KHz (For Stereo)
■ Recommended SDI cable:
RG6 (equivalent to 5CFB) / RG59 (equivalent to 3C2V) (75Ω)
■ Cable length (maximum / reference):
3G: 100m of RG6 / 86m of RG59
HD: 170m of RG6 / 120m of RG59
SD: 400m of RG6 / 280m of RG59
* 1 Measured with RG6: CANARE L-5CFB / RG59: Belden 9275
* 2 The maximum cable length varies greatly depending on the equipment used and the performance and quality of the cable.

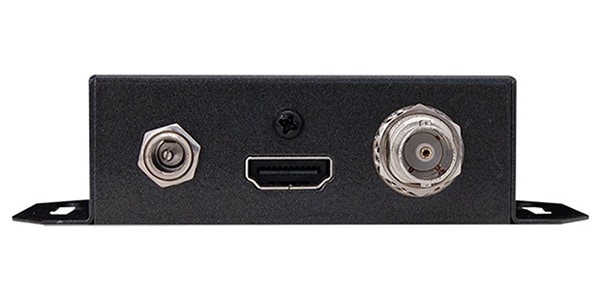

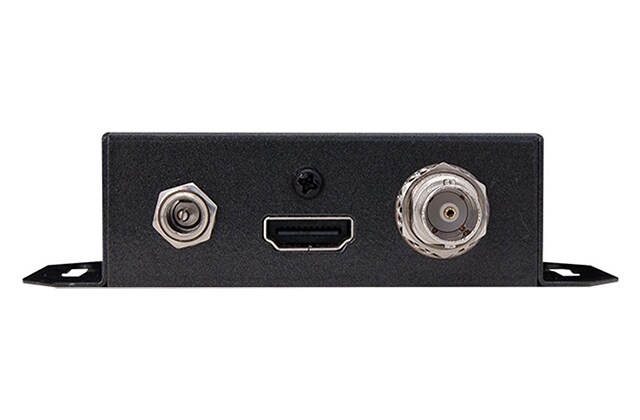

■ Input terminal:
HDMI x 1
BNC x 1 (external sync signal input, 3 values ​​/ BB)

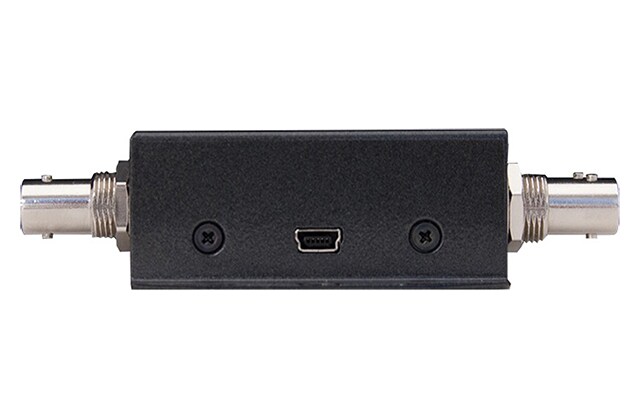

■ Output terminal:
BNC (SDI) x 2
■ BNC connector:
75Ω inter-locked socket
■ HDMI connector:
TYPE A (19-pin female)
■ Button:
Function Switch (Output format / Gen-lock)
■ Push switch:
3 (RES / FRAME RATE / FRACTION)
RES: Output resolution setting
FRAME RATE: Multi-screen / sync mode setting
FRACTION: Aspect ratio / button operation lock setting
■ Case:
SECC
