MEDIAEDGE / VPC-SH3STD

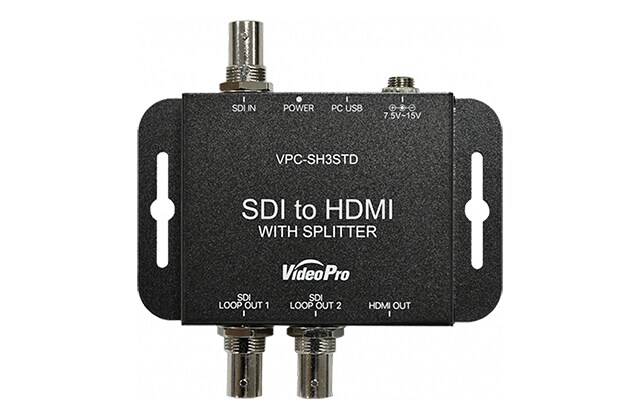

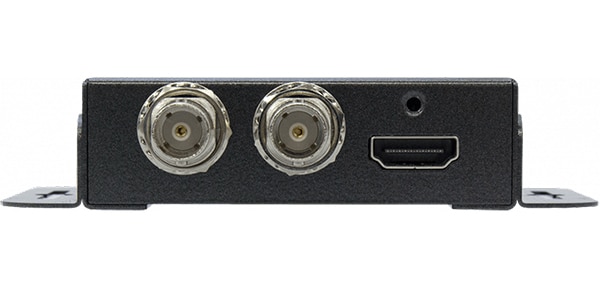

This mini-converter combines the video and timecode information of an SDI signal onto an HDMI signal. It can also split the signal input to the SDI terminal into two outputs from SDI, making it suitable for a variety of uses.

■SDI to HDMI converter ■SDI input: 3G-SDI Level A Direct image format mapping (SMPTE 425M) 3G-SDI Level B-DL SMPTE ST372 Dual Link mapping (SMPTE 425M) HD-SDI (SMPTE 292M) SD-SDI (SMPTE 259M) ■SDI through output: Active through (equalizer/reclock always enabled) ■SDI input supported formats: SD-SDI: 720x480i59.94, 720x576i50, HD-SDI: 1280x720p59.94/p60/p50, 1920x1080i59.94/i60/i50, 1920x1080p23.98/p24/p25/p29.97/p30 3G-SDI Level A: 1920x1080p59.94/p60/p50 3G-SDI Level B-DL: 1920x1080p59.94/p60/p50 *Not compatible with 3G-SDI Level B-DS ■HDMI output supported formats: SD: 720x480i59.94, 720x576i50, HD: 1280x720p59.94/p60/p50, 1920x1080i59.94/i60/i50, 1920x1080p23.98/p24/p25/p29.97/p30, 3G: 1920x1080p59.94/p60/p50 ■Audio input: SDI embedded audio (LPCM ■Audio output: HDMI embedded audio (LPCM, Max. 8ch, 48kHz) ■Input/output delay: Max. 2 lines ■Recommended SDI cables: ・For RG6 (equivalent to 5CFB) 75Ω 3G: Max. 100m / HD: Max. 170m / SD: Max. 400m ・For RG59 (equivalent to 3C2V) 75Ω 3G: Max. 86m / HD: Max. 120m / SD: Max. 280m *Measured with RG6: CANARE L-5CFB, RG59: Belden 9275 *Maximum cable length varies greatly depending on the equipment used and the performance and quality of the cable. ■Input terminal: SDI (75Ω BNC) x 1 ■Output terminal: HDMI Type A x 1 system SDI LOOP THRU (active through output) (75Ω BNC) x 2 ■USB connector: USB Micro-B x 1 ■HDMI connector: TYPE A [19-pin female] ■Case: SECC ■Power supply (AC adapter powered): ■AC adapter: AC100-240V / DC12V Maximum 160mA ■Power supply (USB powered) ■USB bus power +5V Maximum 330mA ■Power consumption ■2.27W (including AC adapter) ■Temperature conditions: ■Operating temperature range: 0-50°C *No condensation ■Storage temperature -20-+60°C ■SIZE: 63.6 (W) x 22.5 (H) x 103.6 (D) (including bracket) 204g
