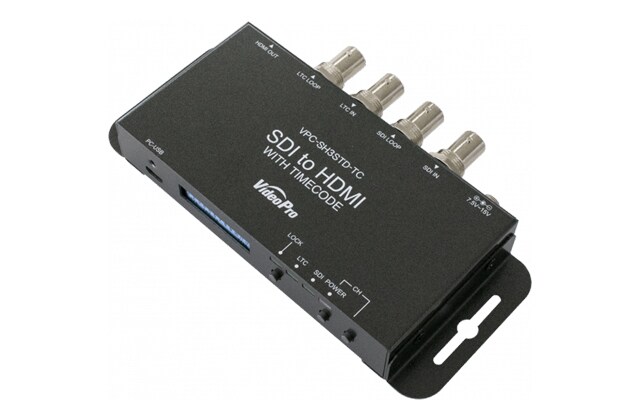

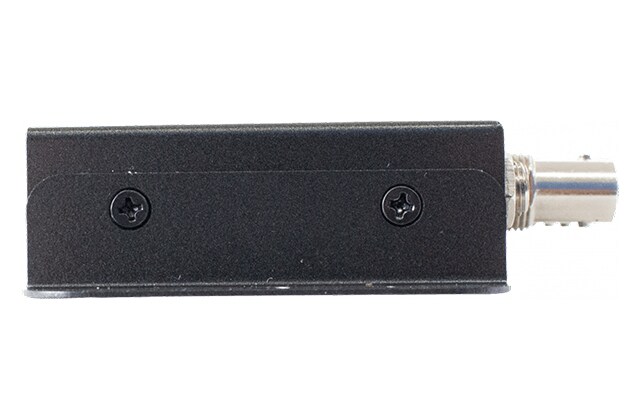

MEDIAEDGE / VPC-SH3STD-TC Converter with time code display function-

A mini converter that combines the video of the SDI signal and the time code information into the HDMI signal. Since the time code and video can be checked on a general TV monitor, the cost of equipment can be reduced. It is possible to superimpose the time code or LTC embedded in the SDI signal on the video and output it from HDMI.

■ Converter with time code display function-SDI → HDMI
■ SDI input compatible format:
SD-SDI: 720x480i59.94, 720x576i50,
HD-SDI: 1280x720p59.94 / p60 / p50
1920x1080 i59.94 / i60 / i50,
1920x1080 p23.98 / p24 / p25 / p29.97 / p30,
3G-SDI Level A: 1920x1080 p59.94 / p60 / p50
3G-SDI Level B-DL: 1920x1080p59.94 / p60 / p50
* 3 Not compatible with G-SDI Level B-DS
■ HDMI output compatible format
SD: 720x480i59.94, 720x576i50,
HD: 1280x720p59.94 / p60 / p50,
1920x1080 i59.94 / i60 / i50,
1920x1080 p23.98 / p24 / p25 / p29.97 / p30,
3G: 1920x1080p59.94 / p60 / p50
■ SDI input:
3G-SDI Level A Direct image format mapping (SMPTE425M)
3G-SDI Level B-DL SMPTE ST372 Dual Link mapping (SMPTE 425M)
SD-SDI (SMPTE 259M)
HD-SDI (SMPTE 292M)
■ SDI thru-output:
Active through (equalizer / reclock is always valid)
■ HDMI input:
HDMI Ver.1.3a, HDCP non-compliant, CEC non-compliant, DeepColor non-compliant, color space RGB / YCbCr444 / YCbCr422 switching compatible
■ Audio input:
SDI Embedded Audio (LPCM, Max.8ch, 48kHz)
■ Audio output:
HDMI Embedded Audio (LPCM Max.8ch, 48kHz)
■ I / O delay: Up to 2 lines
■ Recommended SDI cable:
・ For RG6 (equivalent to 5CFB) 75Ω 3G: Maximum 100m / HD: Maximum 170m / SD: Maximum 400m
・ For RG59 (equivalent to 3C2V) 75Ω 3G: Maximum 86m / HD: Maximum 120m / SD: Maximum 280m * Measured with RG6: CANARE L-5CFB, RG59: Belden 9275
* The maximum cable length varies greatly depending on the equipment used and the performance and quality of the cable.

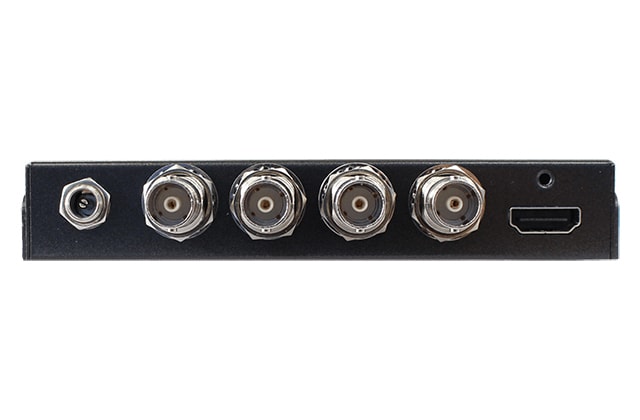

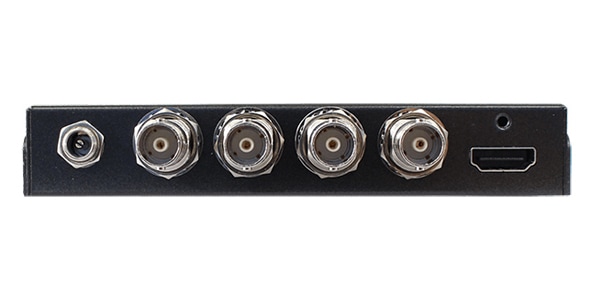

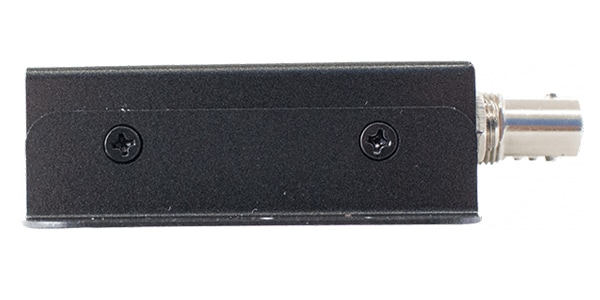

■ Input terminal:
SDI (75Ω BNC) x 1
■ Output terminal:
HDMI Type A x 1 system SDI LOOP THRU (active through output) (75Ω BNC) x 1

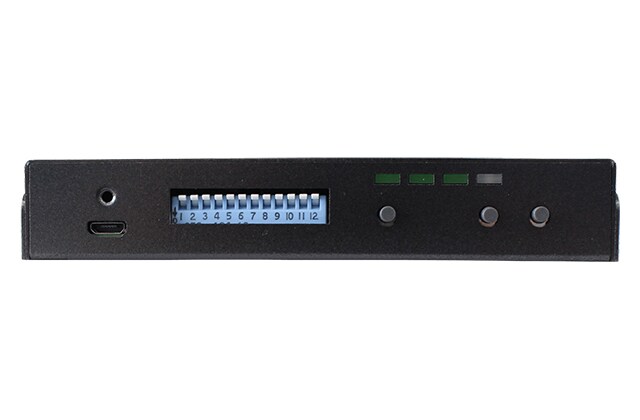

■ USB connector:
USB Micro-B x 1
■ Case:
SECC
