WAVES / SoundGrid Proton Server

16チャンネルまでのライブミキサーのエンジンとして最適な小型のSoundGridサーバー。

■ SoundGrid Server

Designed for setups of up to 16 channels for superior sound quality, the SoundGrid Proton Server is the cheapest SoundGrid server to date.
Small but powerful, this SoundGrid server is ideal as an engine for your eMotion LV1 16 stereo channel live mixer, providing additional processing power for any live scene, whether for fixed equipment or touring.

Built-in Intel? Celeron? Processor and 4GB RAM for plug-in process, 48kHz with standard eMo plug-ins (F2, Q4, D5) enabled on all channels with eMotion LV1 16 stereo channel live mixer With a network latency of 0.8ms, 50% of the Prton Server's processing power is used.

The 1U half-rack size aluminum case can be paired with the Axis Proton and stored in a 1U rack space on a dedicated 1U rack shelf. Run these two devices with an eMotion LV1 live 16-channel mixer for live sound setup applications up to 16 channels. You can build a very compact live mixing system.

■ Features
The cheapest SoundGrid server with the best power for small live mixes
・ Rack mountable with 1U rack shelf (sold separately)
・ Low latency of 0.8 ms at 48 kHz
-Real-time plug-in processing during recording / live mixing in combination with SoundGrid compatible audio I / O
-Sturdy aluminum case (1U half rack size)
-CPU: Intel? Celeron?
・ RAM 4 GB
・ Power supply: DC12V 3A

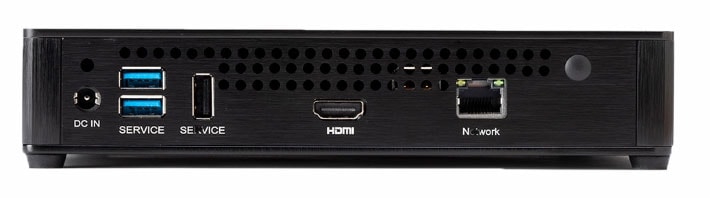

· 1 x 1GbE Ethernet port
· 1 x HDMI port
· 3 x USB port (for service)

Housing dimensions and weight
Width: 195 mm
Depth: 205 mm
Height: 38 cm
Rubber foot height: 4 mm
Weight: 1.06 kg
