"Bewitching tone" Based on this concept, OYAIDE / VONDITA-X was developed. Some say it's magical, and some say it's even artistic. Beautiful and magical work of art VONDI TA-X. The singing voice emerges from the quiet space, and its mysterious and lustrous tone continues to fascinate the hearts of people who listen to music.

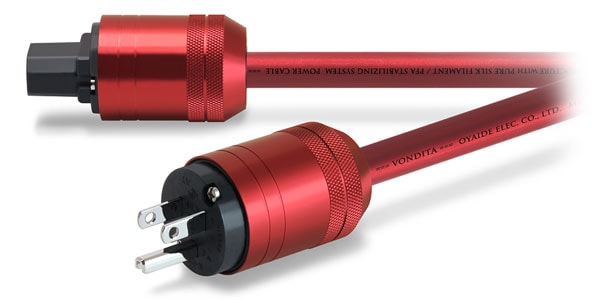

■ Power plug / connector V-XY / V-XX
-As the highest quality power plug, the VONDI TA-X dedicated power plug connector V-XY / V-XX has been newly created based on M1 / F1 that has captivated audio files all over the world.

■ Dual monocoque housing
-Similar to M1 / F1, the inner housing uses POM (polyacetal), which has both excellent mechanical properties and electrical insulation. A2017, which is famous as duralumin, is used for the outer housing, which has excellent strength as well as noise resistance, and quickly disperses and suppresses vibration. The housing structure that combines these two materials suppresses the generation of unnecessary incidental sounds.

■ Different color plating combination
-In order to achieve the best sound, the plug is platinum-palladium plated and the connector is gold-plated. Like M1 / F1, the electrodes are made of beryllium copper, which has excellent range characteristics. With these, it is possible to express a singing voice with a glossy core that depicts the expanse of space appropriate for playing music attractively and even breathing.

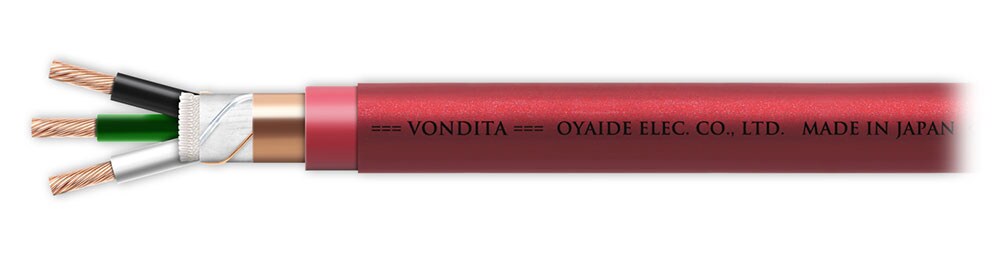

■ Cable
-Luxury silk interposition, double helix drain wire reminiscent of DNA, and exterior sheath that combines different materials. All of them are the crystals of our commitment to thorough vibration control. Countermeasures against vibration are an important factor for audio and have been reflected in the internal design of the cable without compromise. Silk intervention is also effective in suppressing static electricity. With these internal designs and the 4.0sq internal conductor with a special twist structure using the precision conductor "102SSC", the harmony weaved by these is excellent in spatial expressiveness while being quiet, and music is played while maintaining the optimum band balance. increase.

■ QBT processing
-TELOS AUDIO DESIGN is currently attracting the most attention from around the world due to innovative product development based on high technology. QBT processing is applied by the cable run-in machine. QBT processing is a type of aging that enhances the original appeal of cables.

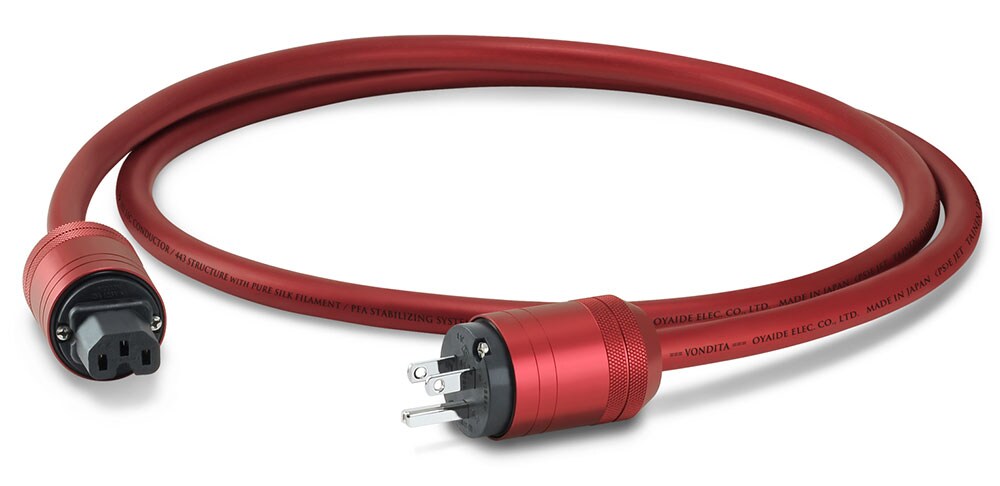

■ Cable part: VONDITA (1.8m)

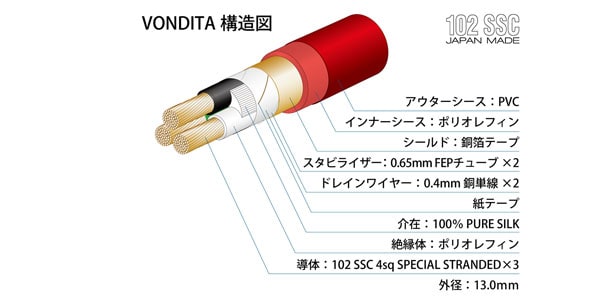

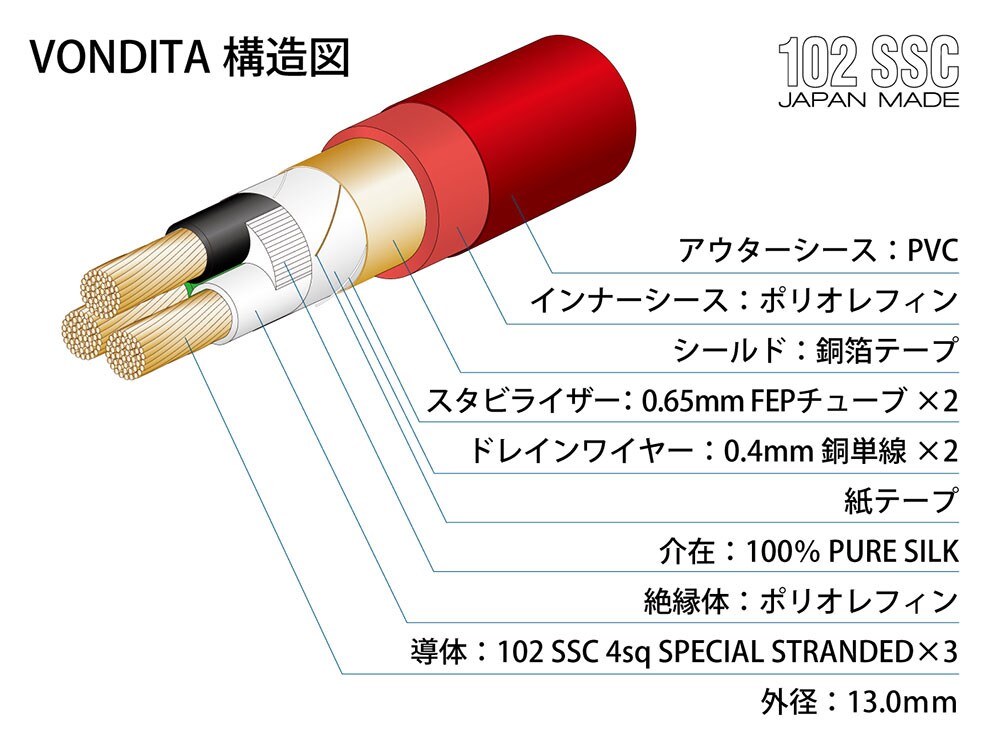

■ Cable structure: 3-core cabtyre
■ Cable conductor: 102SSC (hot / cold / ground)
■ Cable conductor area: 4.0sq (SPECIAL STRANDED)
■ Cable insulator: High molecular weight polyolefin
■ Cable shield: Copper foil tape
■ Cable exterior sheath: PVC + polyolefin
■ Cable outer diameter: 13.0mm
■ Power plug & connector: V-XY / V-XX
■ Electrode material & plating: Beryllium copper / platinum / palladium / gold plating
■ Rating: 125V / 15AE certified product
