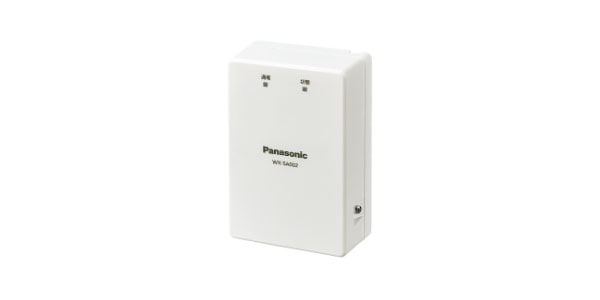

PANASONIC / WX-SA002

Coaxial conversion unit for 1.9 GHz band digital wireless microphone system. Converts the LAN cable used to connect the WX-SR200A series wireless antenna to the wireless receiver into a coaxial cable.

■ Overview
This unit is a unit that converts the LAN cable * 3 used to connect the wireless antenna * 1 of the 1.9GHz band digital wireless microphone system WX-SR200A series to the wireless receiver * 2 into a coaxial cable.
* 1: WX-SA250A: Sold separately
* 2: WX-SR202A, WX-SR204A: Both sold separately
* 3: CAT5 / CAT5e / CAT6 straight cable
・ A 1.9GHz digital wireless microphone system can be used using the existing coaxial cable.
・ Can be used up to 100 m with a coaxial cable * 1
・ Can be installed on the ceiling, installed on the wall, or installed on the stationary side.
・ Provided as a set for receiver side and antenna side
* 1: Recommended cables are 5C-2V, 5C-FB
■ Specifications
·Power supply
Wireless receiver connection terminal (receiver side coaxial conversion unit)
Connector: RJ-45
Cable used: CAT5 / CAT5e / CAT6 straight cable
Wiring distance: Maximum 5 m
Wireless antenna connection terminal (antenna side coaxial conversion unit)
Connector: RJ-45
Cable used: CAT5 / CAT5e / CAT6 straight cable
Wiring distance: Maximum 50 m
Coaxial cable connection terminal (receiver side coaxial conversion unit / antenna side coaxial conversion unit)
Connector: BNC
Cable used: 5C-FB, 5C-2V coaxial cable
Wiring distance: Maximum 100 m
・ Display (indicator): Energized, status
・ Operating temperature range: 0 ℃ -45 ℃
・ Operating humidity range: 10% -90% (no condensation)

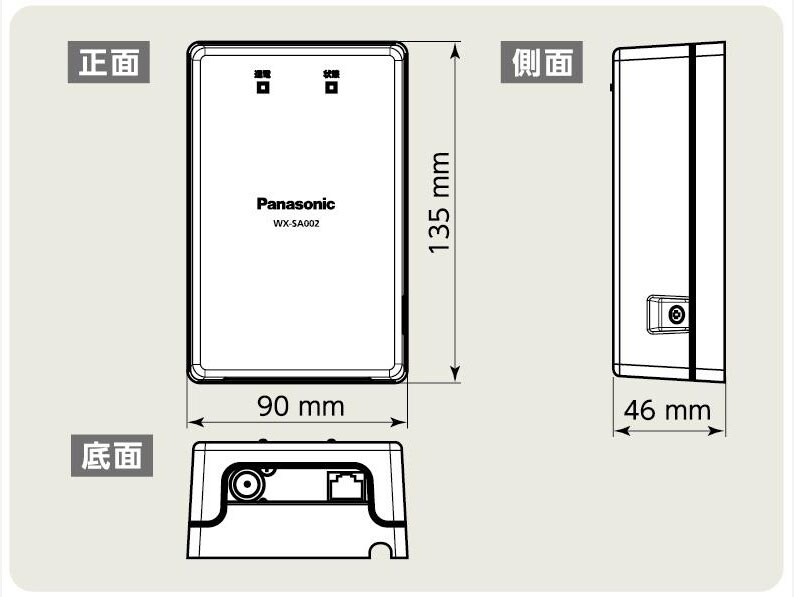

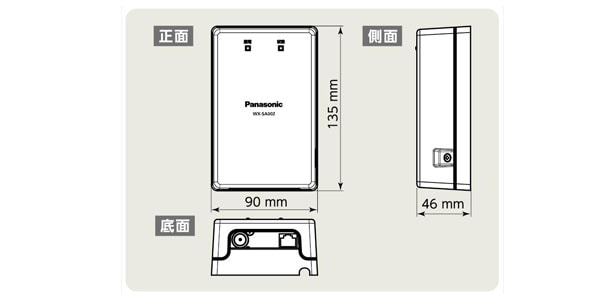

-Dimensions: Approximately 90 mm (width) x 135 mm (height) x 46 mm (depth)
・ Mass: Approximately 0.25 kg (1 coaxial conversion unit on the receiver side and 1 on the antenna side)
-Finishing: Sail White (Munsell N9.3 approximation)
