IK MULTIMEDIA / UNO Synth Pro

UNO Synthをベースにオシレーター、フィルター、シーケンサー、エフェクト、プリセット、接続性、プログラミング性の向上など、ほぼすべてのセクションが進化したパラフォニック デュアルフィルター アナログ シンセサイザー。* 37鍵のFatar社製シンセアクション フルサイズ鍵盤搭載。

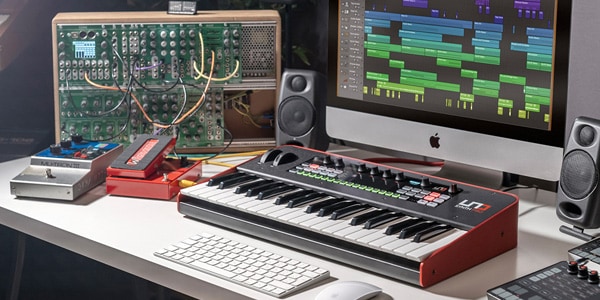

An analog synthesizer with a unique dual filter and 3-oscillator paraphonic design that allows you to create any synth sound. Equipped with 256 presets, a 64-step sequencer, a CV / Gate terminal, and an audio input that can be filtered, it is designed to be an ideal creation station for playing, music production, and acoustic operations unique to analog synthesizers. ..

At the heart is three analog oscillators capable of pulse width modulation and continuous waveform morphing. With oscillator sync, FM (frequency modulation), noise generator, and ring modulation, you can fully enjoy the sound of a real analog synthesizer.

○ Main specifications of UNO Synth Pro
[Synthesis]
・ Type: Analog method
・ Oscillator: 3 units (simultaneous pronunciation: 1 voice or 3 paraphonic)
・ Noise: White
・ Continuously variable wave form: triangular wave, sawtooth wave, pulse wave (PWM possible)

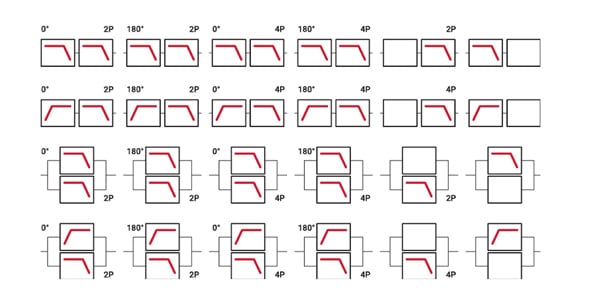

・ Filter: 2 units

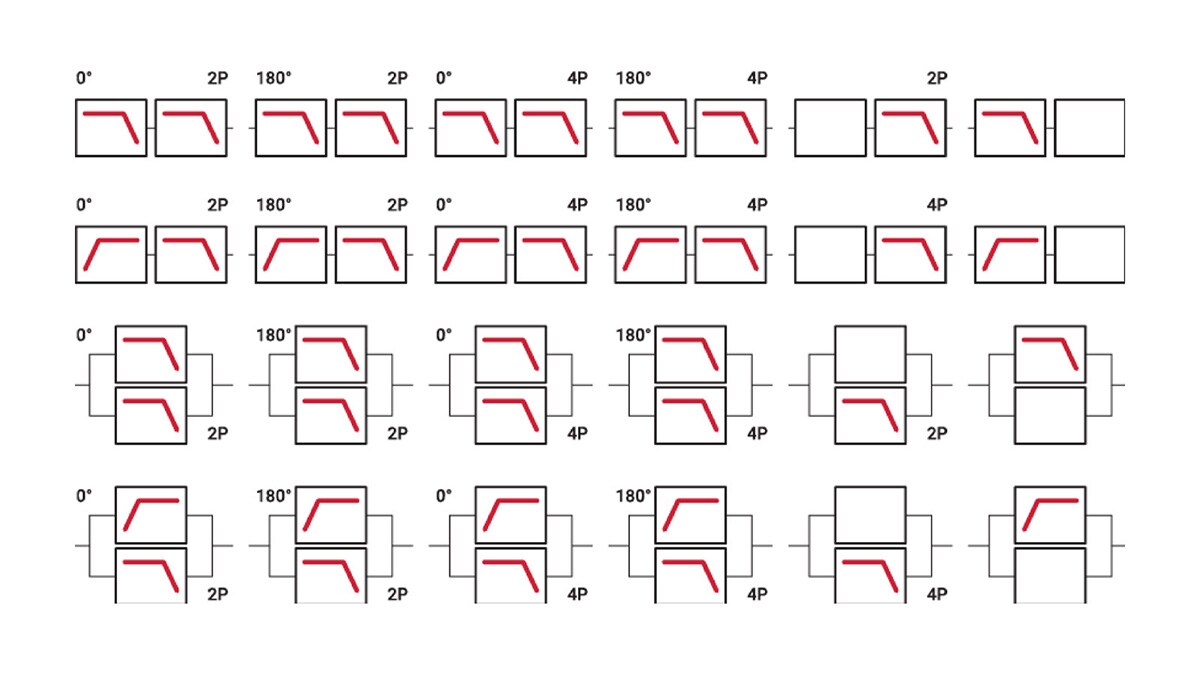

・ Filter type: 2 pole OTA HPF / LPF, 2/4 pole SSI LPF
・ LFO: Sine wave, triangle wave, square wave, sawtooth wave, random, sample & hold
・ Modulation destination: 16 matrices
・ Envelope generator: 2 ADSRs (for filter and amplifier)

【preset】
・ Total 256 presets (programmable)

[Keyboard and controls]

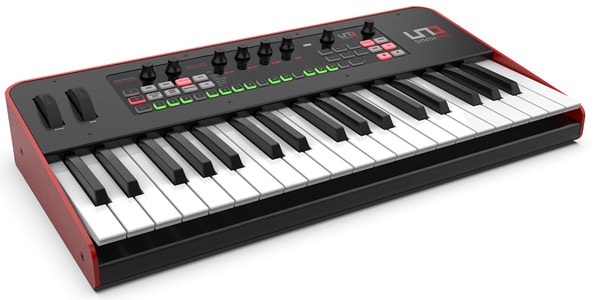

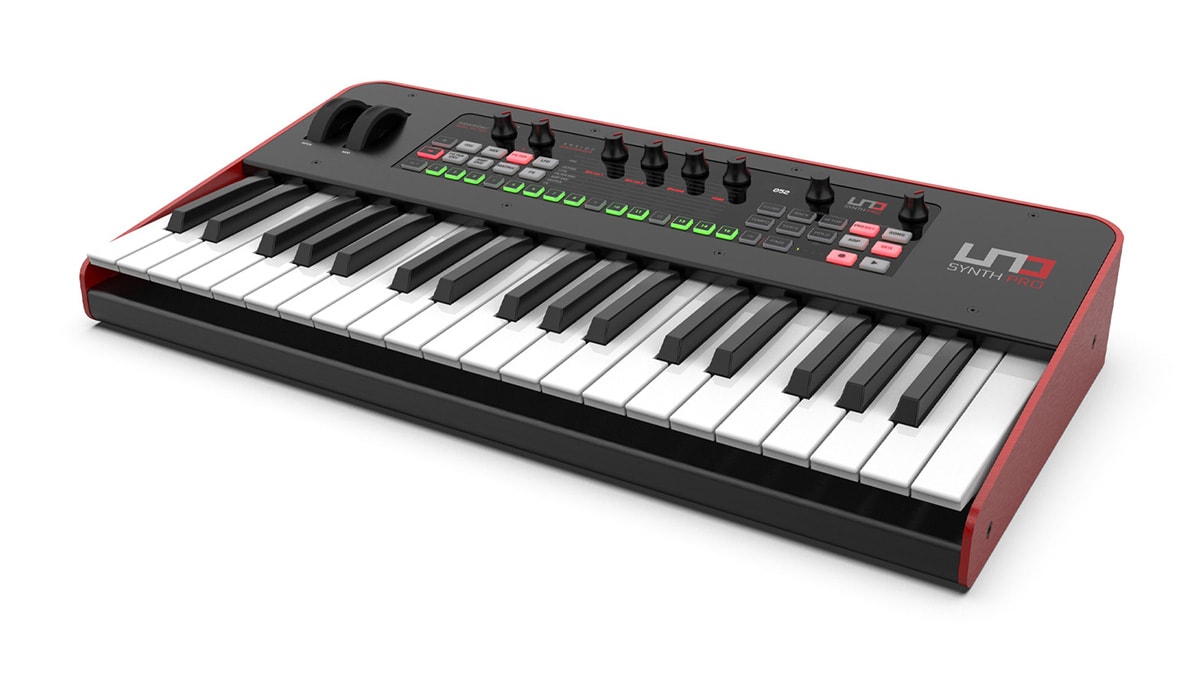

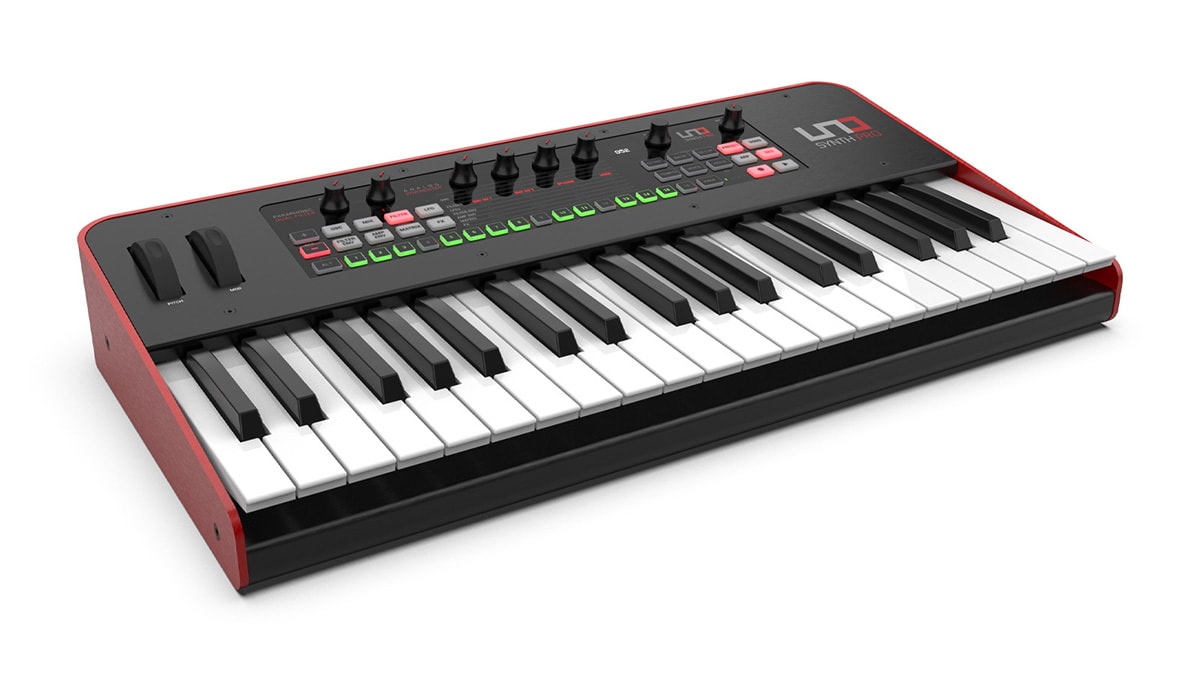

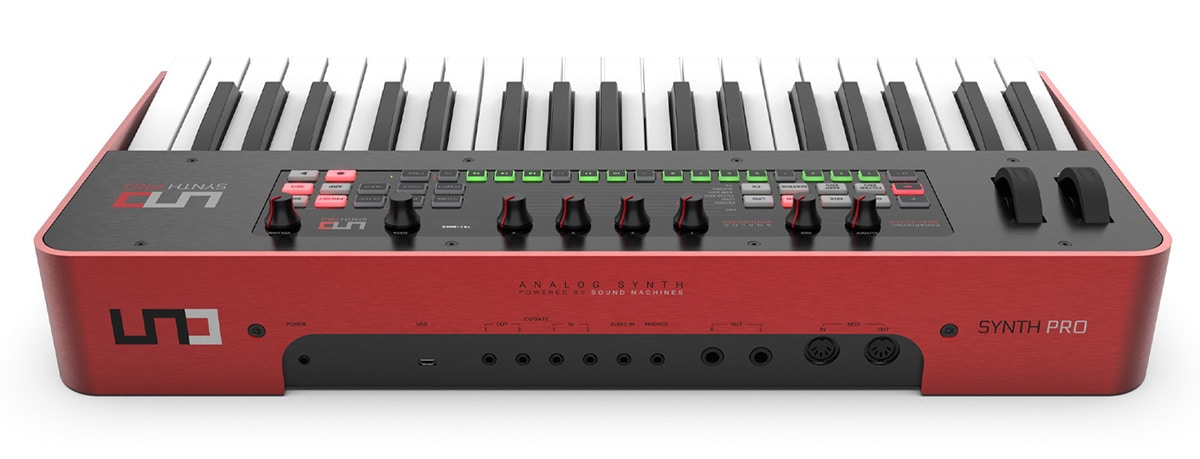

・ Full-size 37-key synth action keyboard (UNO Synth Pro)
・ Velocity / after-touch support

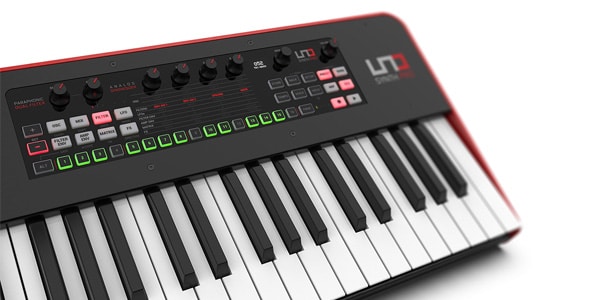

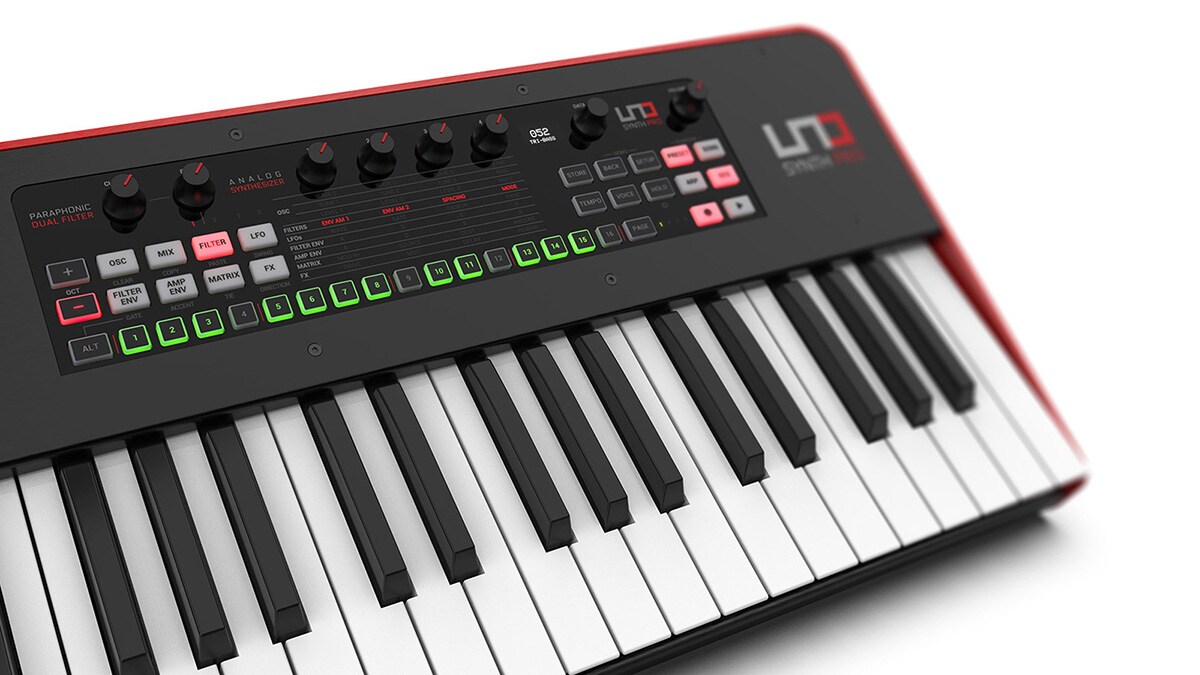

・ 50 controls (excluding keyboard)

【sequencer】
・ 64-step sequencer
・ Real-time and step recording
-Automates up to 40 parameters

[Arpeggiator]
・ 10 types of modes
・ 4 octave width

[Audio effect]
・ 13 types in total
・ 3-slot digital effects (reverb, delay, modulation) + analog drive

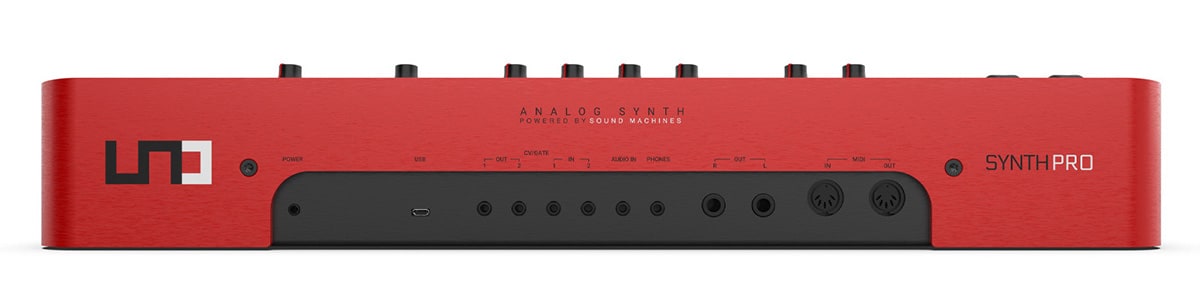

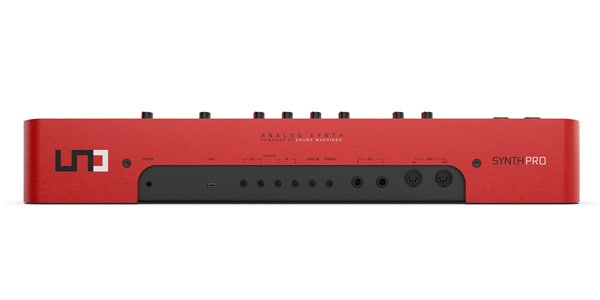

【Connecting terminal】
-Audio out: 6.4 mm TRS phone jack x 2
・ Headphone out: 3.5 mm phone jack (mini stereo)
-Audio in: 3.5 mm mini stereo jack
-MIDI terminal: In / out (standard 5-pin DIN and USB)
・ CV / Gate: 2 assignable systems (3.5 mm mini stereo jack)
-USB terminal: Micro USB type (USB-MIDI)

【others】

・ External dimensions: 55 x 30 x 7 cm
・ Housing: Metal / Plastic
・ Weight: 5.8 kg
・ Power supply: Dedicated AC adapter (included)
