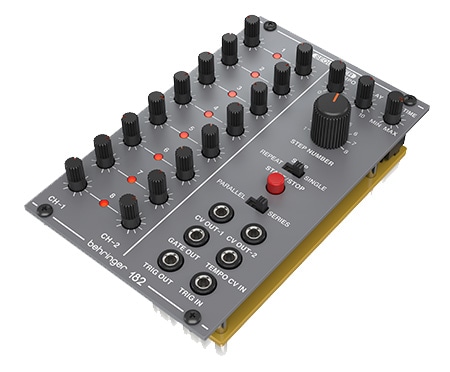

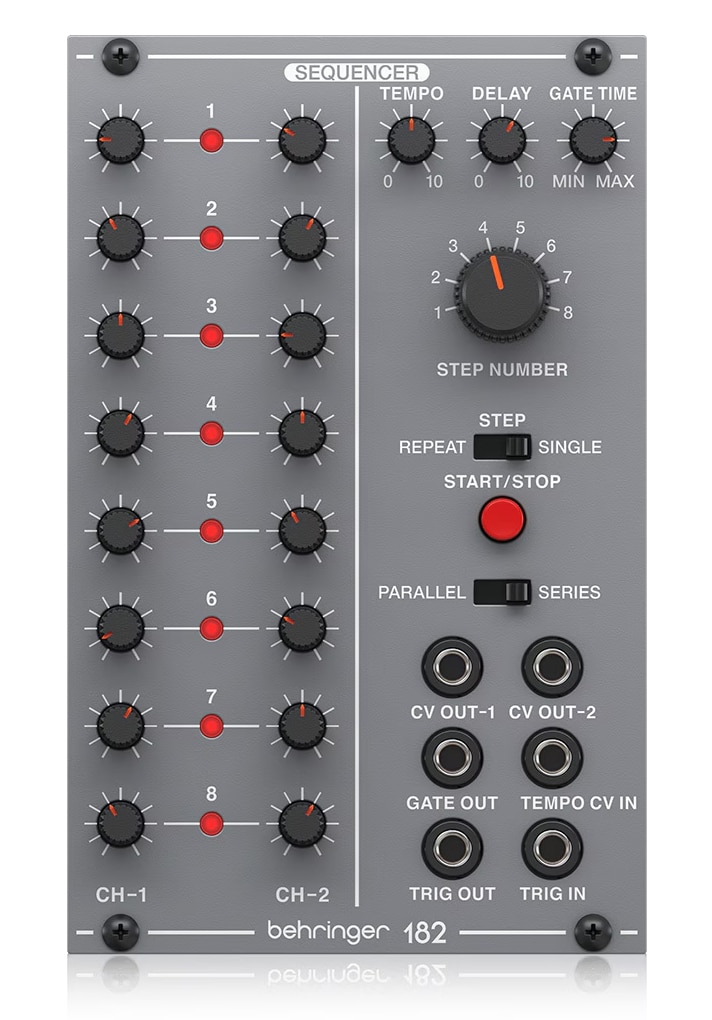

BEHRINGER / 182 SEQUENCER

A sequencer module that faithfully reproduces the original “System 100M” circuit of the 80's, mountable in a Eurorack case, at an affordable price.

Features
2-channel 8-step analog sequencer module with 80's sound
Control voltage can be set manually for each step.
Tempo, delay, and gate time controls allow for flexible sound creation.
Step number selector and series switches allow sequence settings from 1 to 16 steps.
Step switch allows single play or repeat sequencing.
Sequencer can be externally clocked via CV and triggered via start/stop button
23 controls and switches for real-time access to all parameters
Eurorack specifications: 16HP, 35mA +12V, 35mA -12V
Designed and developed in England

Specifications

◆Analog synthesizer module

■Inputs
Tempo CV input: 3.5mm TS jack, DC coupling
Impedance: 100 kΩ, unbalanced
Maximum input level: +10 V
CV scaling: 1 V/oct
Trigger input: 3.5 mm TS jack, DC coupled
Impedance: 30 kΩ, unbalanced
Maximum input level: +10 V
■Outputs
CV output: 3.5mm x 2, TS jack, DC coupled
Impedance: 600Ω, unbalanced
Maximum output level: +5V
Gate output: 3.5mm TS jack, DC coupled
Impedance: 600Ω, unbalanced
Maximum output level: +5V
Trigger output: 3.5mm TS jack, DC coupled
Impedance: 3kΩ, unbalanced
Maximum output level: +5V
Control: Step CV level 0V?+5V
Tempo: 0.14 Hz to 33 Hz
Delay: 0 to 10 sec.
Gate time: 10% to 90% duty cycle
10% to 90% duty cycle: 1 to 8 steps
Step switch: repeat/manual/single
Start/Stop switch: momentary (temporary)
Parallel/series switch: 8 step/16 step
■Power
Power supply: Eurorack
Current: 30mA (+12V), 30mA (-12V)
Dimensions: 43x81x129mm
Rack Unit：16HP
Weight：0.17 kg
