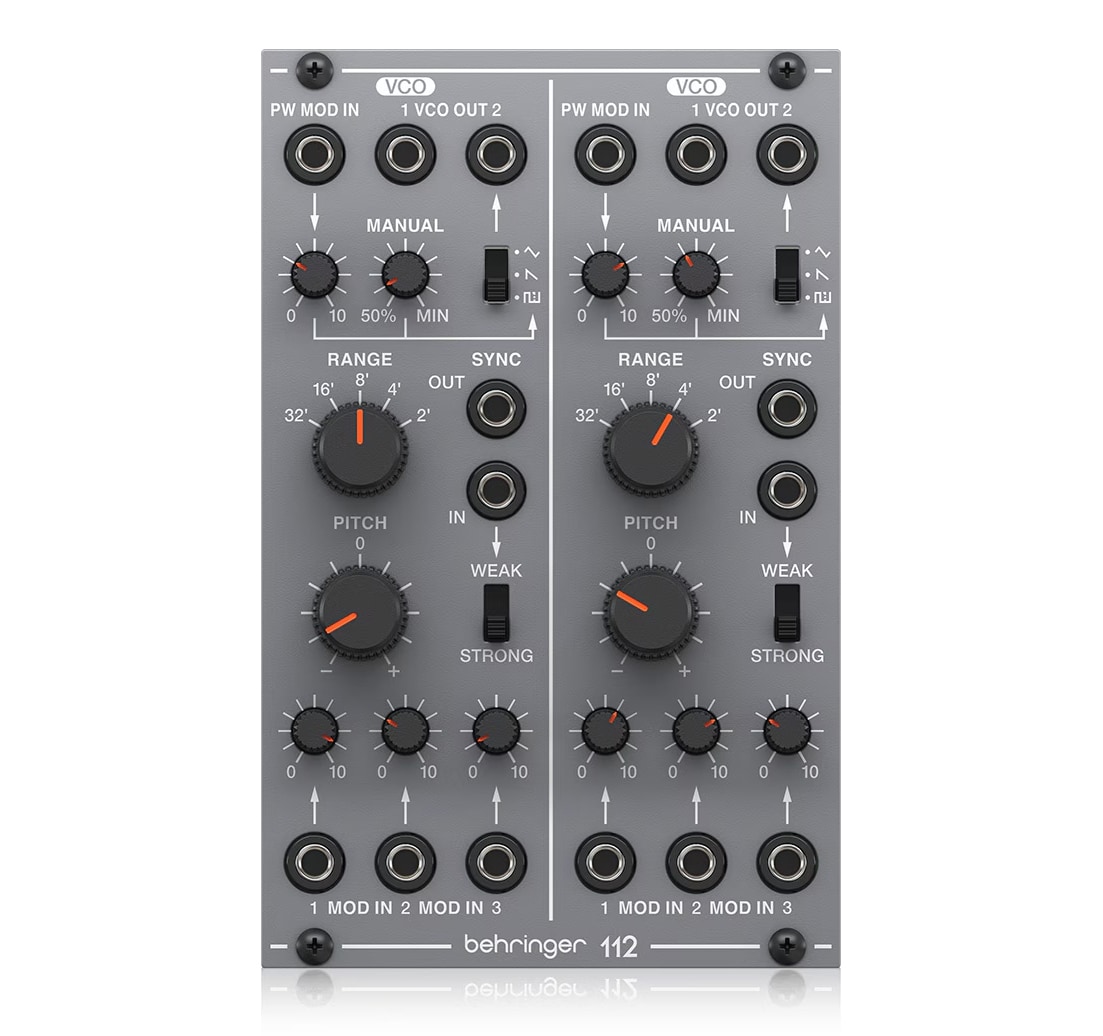

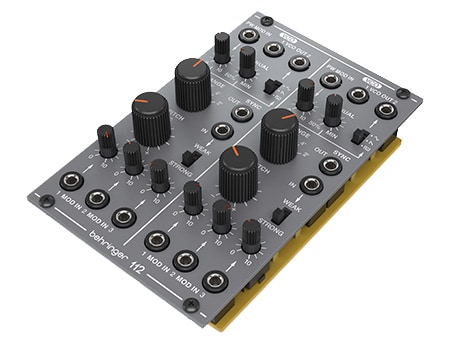

BEHRINGER / 112 DUAL VCO

Faithful and affordable reproduction of the original “System 100M” circuit from the 80's, mountable in a Eurorack case.

Features
Dual VCO module with 80's sound
Faithful reproduction of the original “System 100M” circuit

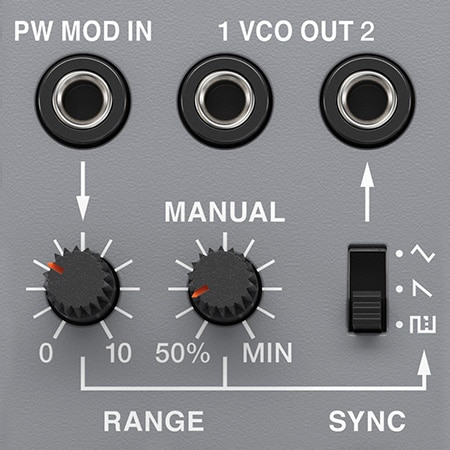

Each VCO has three selectable waveforms: triangle, sawtooth, and square wave (PWM)
PWM can be controlled manually or via external CV input
Each VCO provides pitch and range control, two audio outputs, and three CV inputs
VCOs can be synchronized via strong and weak sync modes for precise phase locking
18 controls and switches provide real-time access to all parameters
Eurorack specifications: 16 HP, 130 mA +12 V, 70 mA -12 V

◆Analog synthesizer module

Pulse width input: 3.5 mm x 2 TS jacks, DC coupled
Impedance: 70 kΩ, unbalanced
Maximum input level: ±10 V, 4% per volt
VCO output: 3.5 mm × 4 TS jacks, DC coupled
Impedance: 1kΩ, unbalanced
Maximum output level: 10V p-p
Frequency range without external CV: 10 Hz to 500 Hz
Frequency range used by external CV: 1 Hz to 30 kHz
Sink input: 3.5 mm x 2 TS jack, DC coupled
Impedance: 100 kΩ, unbalanced
Maximum input level: 10 V p-p
Triggering minimum input: 2.5 V p-p
Sink Out: 2 x 3.5 mm, TS jack, DC-coupled
Impedance: 1 kΩ, unbalanced
Maximum output level: 10 V p-p
Control Inputs: 6 x 3.5 mm, TS jacks, total
Impedance: 50 kΩ, unbalanced
CV range: ±10 V, 1 V/oct
PW level: -∞ to unity gain
PW manual: 50% to min
Waveforms: triangle, sawtooth, pulse
Range: 32', 16', 8', 4', 2'
Pitch: ±1 octave
Week/Strong: Sync mode selection
Mod level: -∞ to unity gain
Power supply: Eurorack
Current: 90mA (+12 V), 70mA (-12 V)
Dimensions: 81 x 129 x 46 mm
Rack unit: 16 HP
Weight: 0.2 kg
