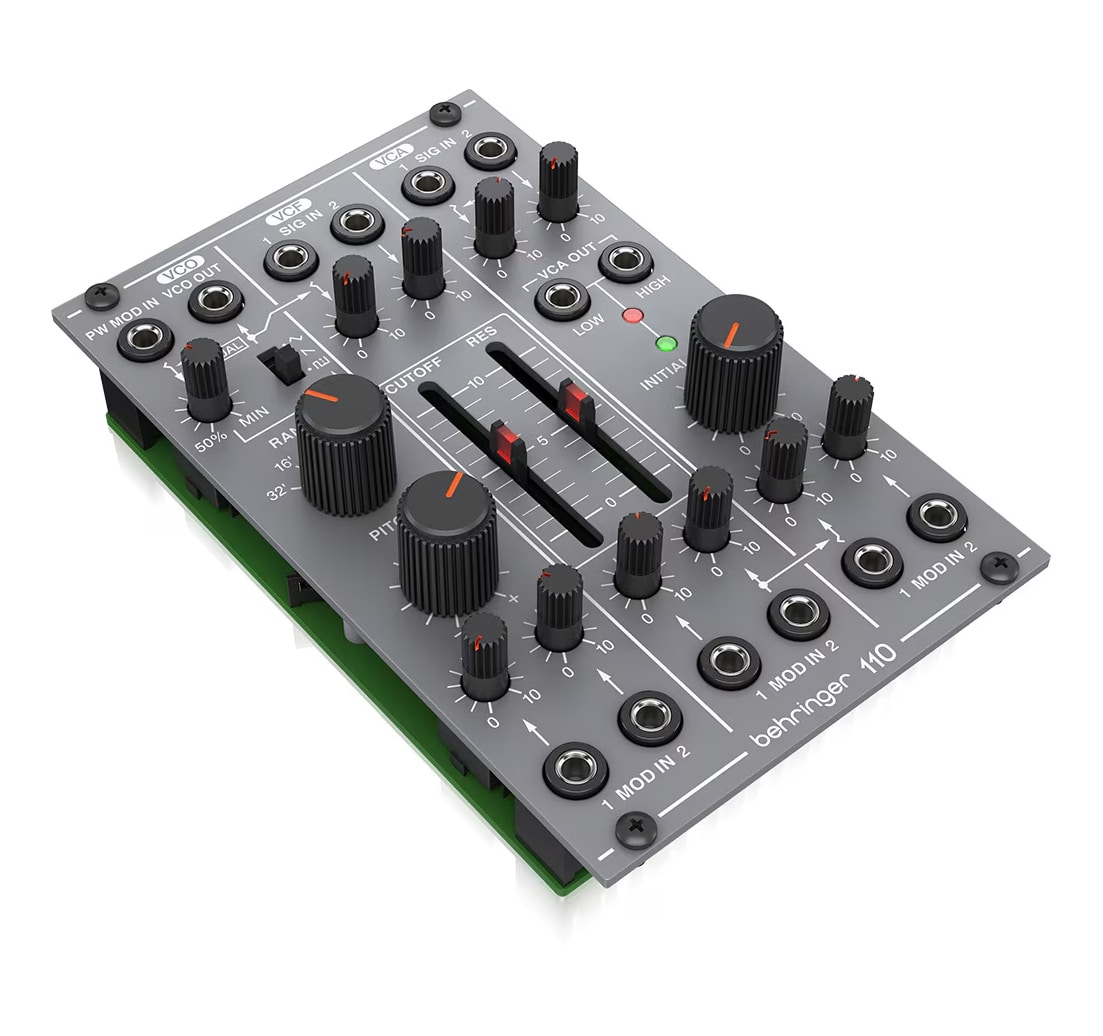

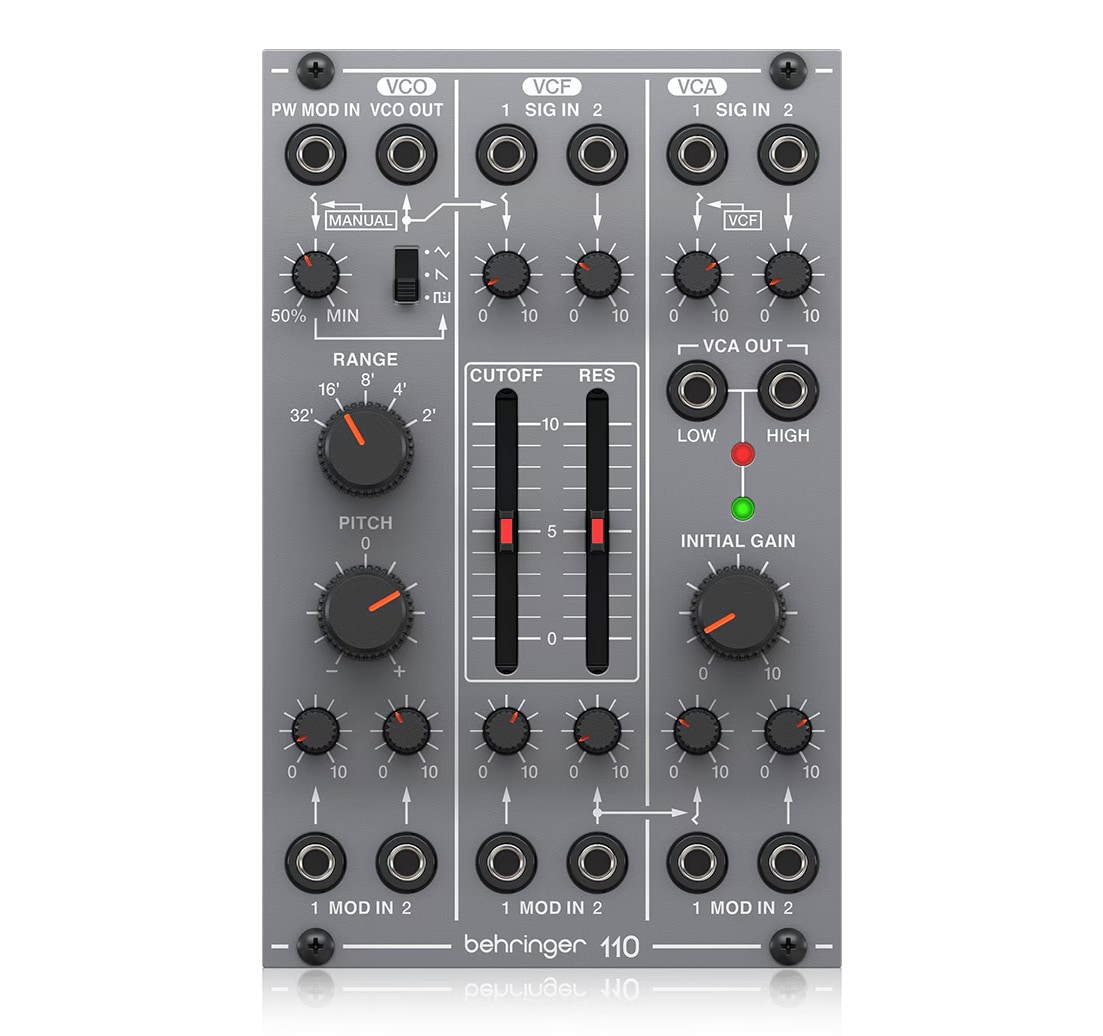

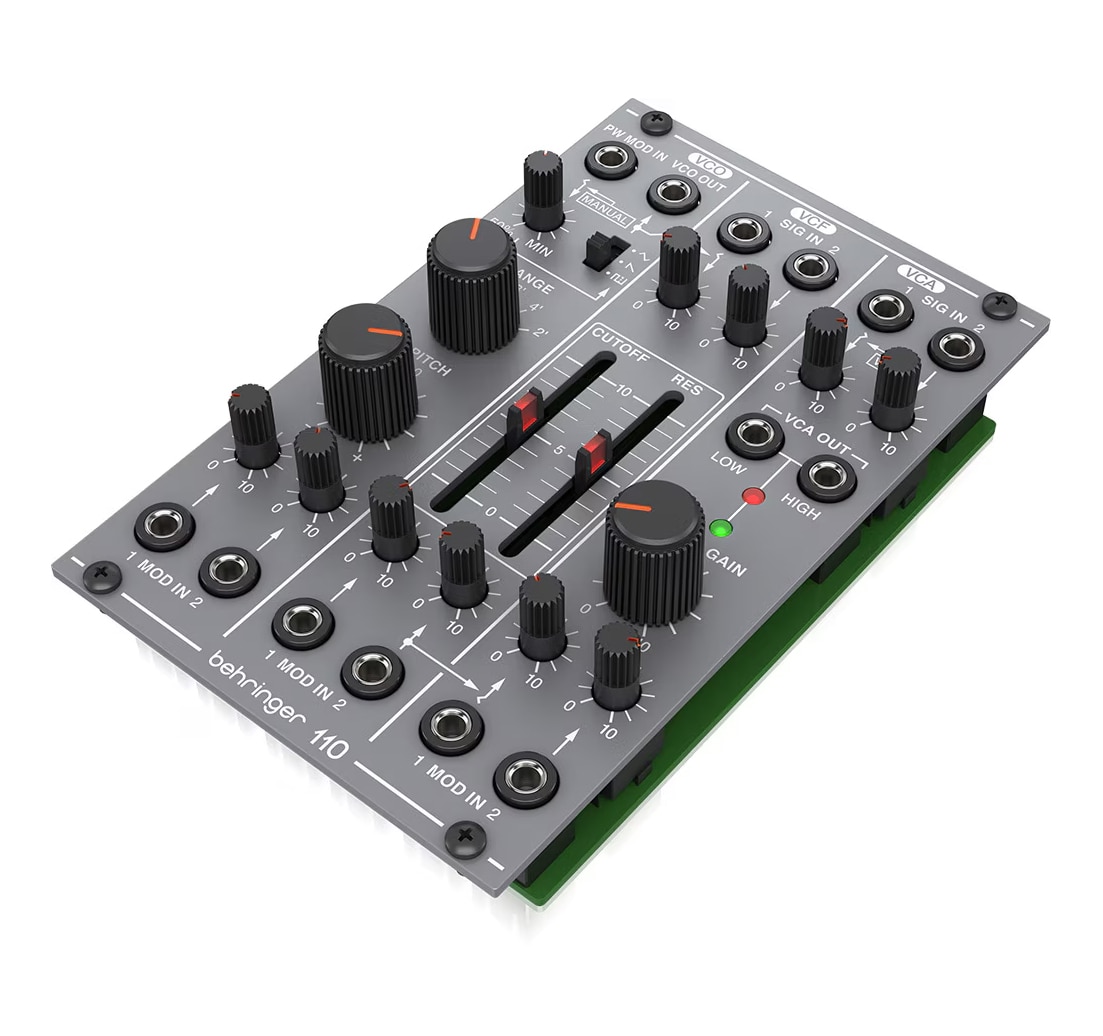

BEHRINGER / 110 VCO/VCF/VCA

BEHRINGER Eurorack modular synthesizer, reproducing the circuitry of the original 100M system from the 80s. Easy-to-use, internally patched signal flow saves time spent on patching.

■Inputs
Pulse width mod:, 3.5 mm TS jack, DC coupled
Impedance: > 70 kΩ, unbalanced
Maximum input level: 0V?+10V, 4% per volt
■Signal Input
Impedance: > 50 kΩ, unbalanced
Maximum input level: +17 dBu @ unity gain
VCO mod input: 2 x 3.5 mm TS jacks, combined
Impedance: > 50 kΩ, unbalanced
CV Range: 0V to +10V, 1 V/oct
VCF mod input: 2 x 3.5mm TS jacks, summed
Impedance: > 50 kΩ, unbalanced
CV range: 0V to +10V, 1 V/oct
VCA mod input: 2 x 3.5 mm TS jacks, summed
Impedance: > 50 kΩ, unbalanced
CV range: 0V to +10V, typically 1V every 10 dB
Outputs
VCO Output: 3.5 mm TS jack, DC coupled
Impedance: 1 kΩ, unbalanced
Maximum output level: 10 V p-p
Frequency Range without External CV: 10 Hz to 500 Hz
Frequency range with external CV: 1 Hz to 30 kHz
■VCA Outputs
2 x 3.5 mm TS jacks, AC coupled
High impedance: 1 kΩ, unbalanced
Low impedance: 3 kΩ, unbalanced
High maximum output level: +18 dBu
Low maximum output level: -2 dBu
High Output Noise: < -60 dBu, 22 Hz -22 kHz
Low Output Noise: <-80 dBu, 22 Hz -22 kHz
■Controls
Pulse width: 50% min.
Waveforms: triangle, sawtooth, pulse
Range: 32', 16', 8', 4', 2'
Pitch: 2 octave range
Cutoff frequency: 20 Hz to 20 kHz
Resonance: Self-oscillating off
Sig in level: -∞ to unity gain
Mod in level: -∞ to unity gain
Power Supply
Power supply: Eurorack
Current: 80 mA (+12 V), 50 mA (-12 V)
■Dimensions
Dimensions: 81 x 129 x 46 mm
Rack unit: 16 HP
Mass: 0.19 kg
