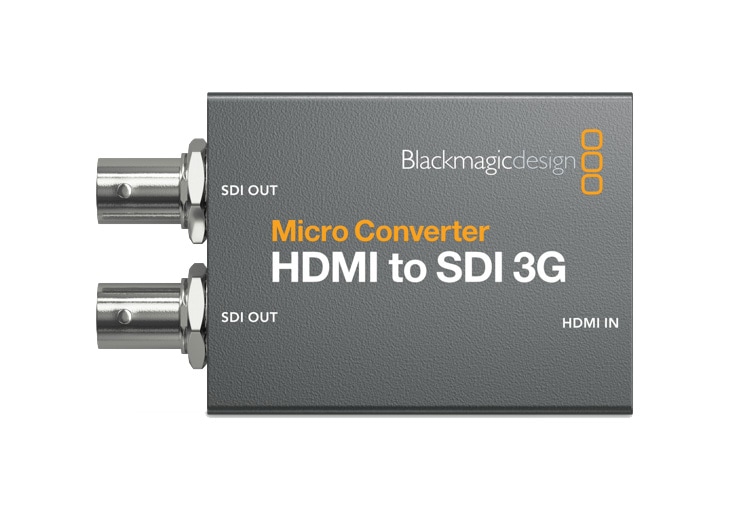

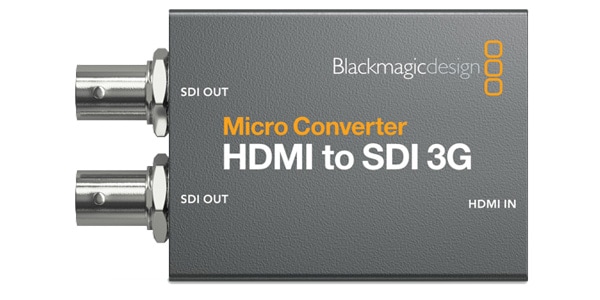

Blackmagic Design / CONVCMIC/HS03G/WPSU

[Official Japanese product] This is a power supply model. An HDMI to SDI converter that also supports theatrical movie video formats such as 1080p24, 1080p47.95, and 1080p48.

■Converter (HDMI to SDI)

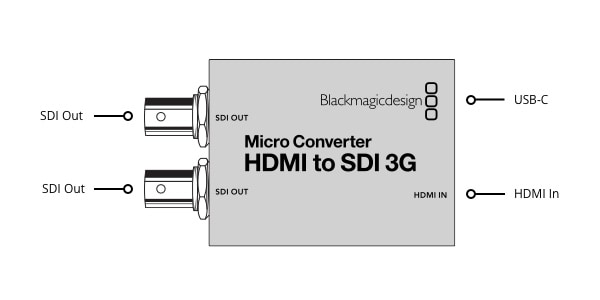

Connection

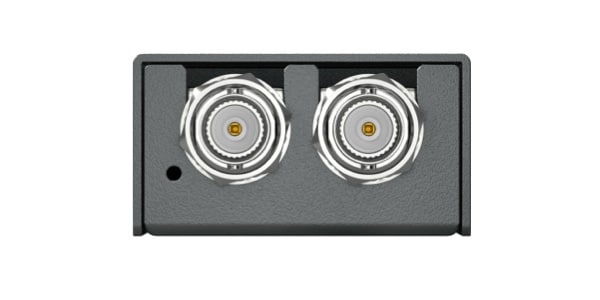

■SDI video output:
SD/HD/3G-SDI x2, automatically matches HDMI input.

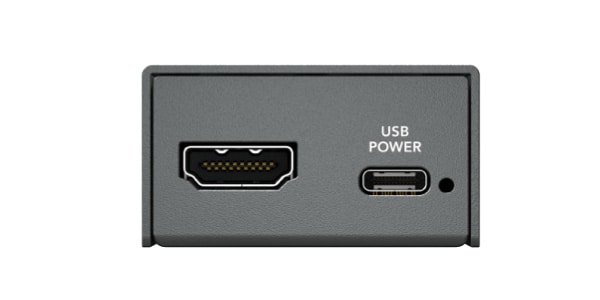

■HDMI video input:
HDMI Type A input
■Supported multi-rates:
SD/HD auto-detection
■Update, configuration, power supply:
USB Type C
■Reclocking: Supported

Format
■SDI video formats:
525i59.94 NTSC, 625i50 PAL
■HD video formats:
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
■SDI standards:
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M
■SDI Video Rate:
SDI video connection is switchable between SD/HD. 3G-SDI Level A and Level B can be selected in the Setup utility.
■SDI Color Precision:
4:2:2
■SDI Color Space:
YUV
■SDI Auto Switching:
Auto detects SD/HD/3G-SDI
■HDMI Video Format:
525i29.97 NTSC, 625i25 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
■HDMI Color Precision:
4:2:2
■HDMI Color Space
YUV
■Copy Protection:
For legal reasons, you cannot capture from copyrighted HDMI sources.
Please verify copyright ownership before capturing or distributing content.
■Software:
Upgrade internal software via USB
■Includes +5V international power supply (international socket adapter)
■SIZE: 76.5(W)x24.8(H)x45.8(D)　150g
