WESAUDIO / ngBusComp

Next-generation stereo bus compressor with digital recall

■Next-generation stereo bus compressor with digital recall
The legendary sound of the stereo bus compressor has been used on countless recordings for over 40 years. Nicknamed ""mixbus glue,"" this compression sound has become the industry standard.

WesAudio has improved on this design, creating a whole new level of versatility with incredible modern DAW integration.

ngBusComp is a ""fully analog"" compressor with digital recall and plug-in control of all parameters. It can be used in three modes: dual mono, stereo, and M/S.

■Features
-True analog sound with detailed control!
-Total recall and plug-in control
-The main VCA uses a quad VCA circuit using four THAT 2181s in parallel
-+26dBu headroom
-Can operate in three modes: dual mono/stereo/MS
-Channel link!
・MID-SIDE operating mode
・Canrhill transformer
・Selectable output circuit - electronically balanced or transformer balanced output
・""Transformer mode"" has a passive attenuator, allowing you to drive a transformer if necessary
・DRY/WET mix knob for parallel compression
・Unique continuously variable THD function for fine adjustment
・Side chain filter: Includes three high-pass filters at 60, 90 and 150 Hz and a ""tilt filter"" with a special curve design.
・Five ratio settings, 1.5:1 and 2:1 for gentle mix bus processing, 4:1 and 10:1 to suit a variety of applications, INF mode for limiting sounds that hit transients.

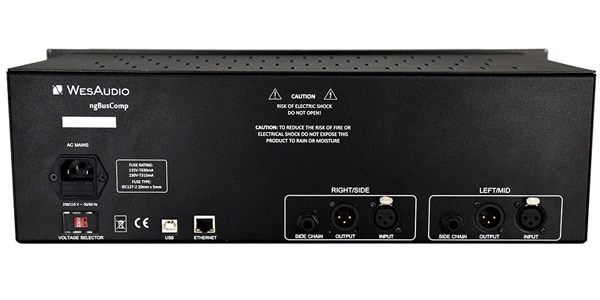

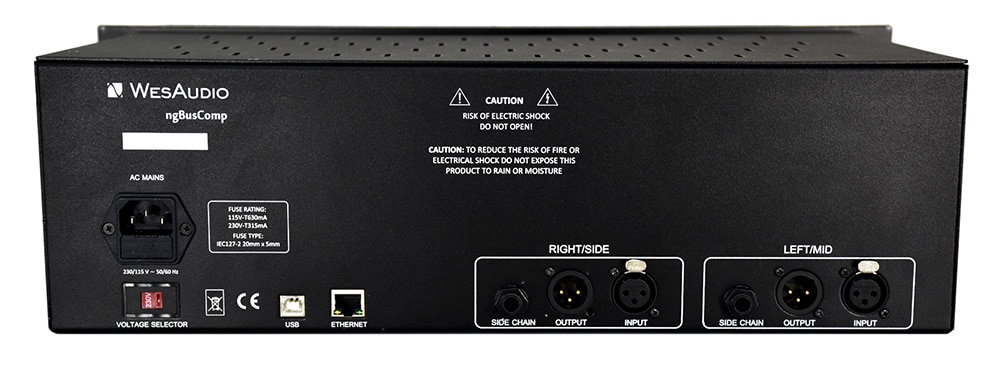

・External side chain via TRS connector (rear panel)
・Hardware A/B/C preset buttons
・USB or Ethernet connection! - Detailed metering, input/output and gain reduction for each channel
- Analog automation with plug-in control
- Analog automation record in DAW with 5 touch-sensitive encoders
- True bypass
- Fully digitally controlled and isolated analog circuitry
- Compatible plug-in software and firmware upgrades
