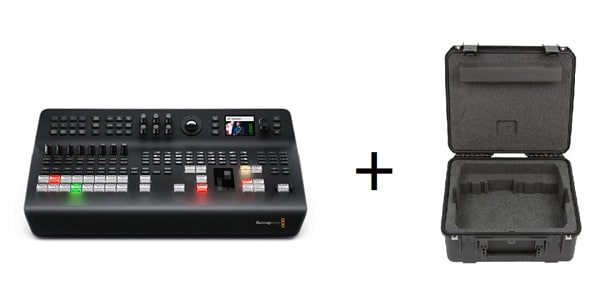

Blackmagic Design / ATEM Television Studio Pro HD + Case

[Official Japanese product] A video switcher for professional use that is compatible with both broadcast and consumer cameras. Comes with a special case for storage. The case is fully protected by dustproof and waterproof specifications. It is useful for moving to various locations.

Equipped with 4 SDI inputs with re-sync and 4 HDMI inputs, it can be used with both broadcast and consumer cameras. ATEM Television Studio Pro HD is packed with high-end features. It is perfect for live production, TV series, web shows, audiovisual, and even live broadcasts of gaming tournaments! Simply connect your camera, game console, computer, etc. and start live switching! This product also comes with a dedicated case!

■Production switcher■Can be used with both broadcast and consumer cameras
Connections■Total video inputs: 8■Total outputs: 8■Total Aux outputs: 1■SDI rate: 270M, 1.5G, 3G■Total audio inputs: 2 x XLR■Total audio outputs: Not supported (embedded audio only)■SDI video inputs: 4 x 10-bit (SD/HD switchable) 2 channels of embedded audio■HDMI video inputs: 4 x HDMI (Type A) (10-bit SD/HD switchable). 2 channels of embedded audio
■Reference input: Tri-sync or black burst
■Video input resync: 8 inputs in total
■SDI program output: 10-bit x 5 (SD/HD switchable)
■SDI audio output: 2 channels embedded in SDI output
■Multi-view monitoring: 1
■Multi-view video formats: HD-SDI x 1, HDMI x 1
Format
■Supported SD formats: 525i59.94 NTSC 4:3 or 16:9, 625i50 PAL 4:3 or 16:9
■Supported HD formats: 720p50, 720p59.94, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p50, 1080p59.94, 1080i50, 1080i59.94
■Ultra HD video formats: Not supported
■SDI standards: SMPTE 259M, 292M, 424M
■Video sampling: 4:2:2 10-bit
■Color precision: 4:2:2 10-bit
■Color space: 4:2:2 YUV
■HDMI input resolutions for computers: 720 x 480i 59.94Hz, 720 x 576i 50Hz, 1280 x 720p 59.94Hz 50Hz, 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 1920 x1080i 50, 59.94Hz 60Hz.
■Color space conversion: Hardware-based real-time conversion
■Processing delay: 6 lines
■Audio mixer: 2-channel mixer x10 inputs.
Select On/Off/Audio-Follow-Video for each channel, adjust gain control for each channel

Measures levels and peaks.

Master gain control. Headphone output level control (mix of program, talkback, and sidetone)

■302mm x 423mm 4.2kg

*Power cable sold separately.

*This product has a one-year manufacturer's warranty.

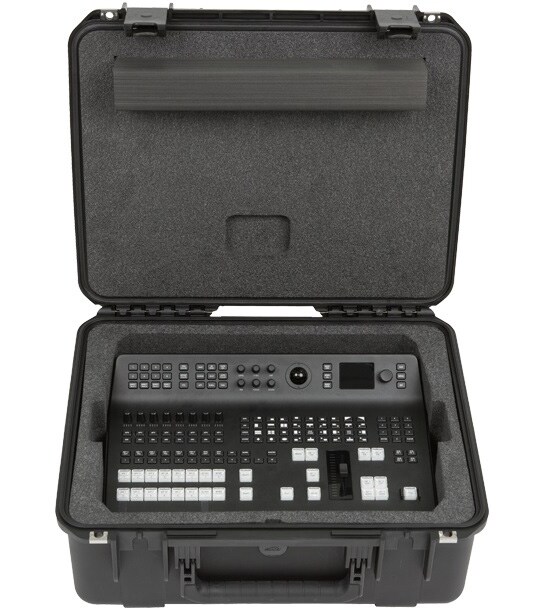

-Special case specifications-

■■Special case for Blackmagic Design ATEM Television Studio PRO

■External dimensions: 51.44W x 22.30H x 43.00D cm

■Weight: 4.54kg

■Dustproof and waterproof specifications
