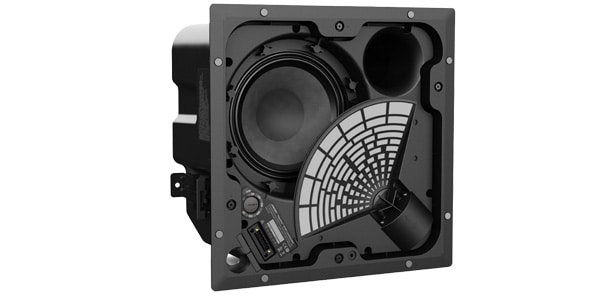

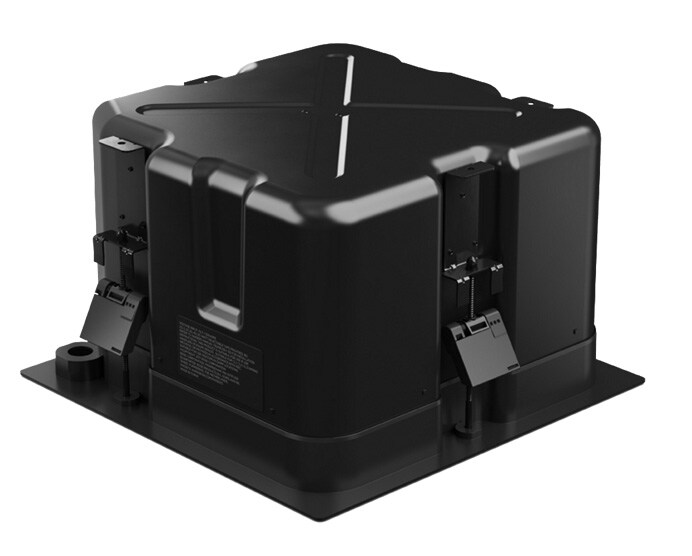

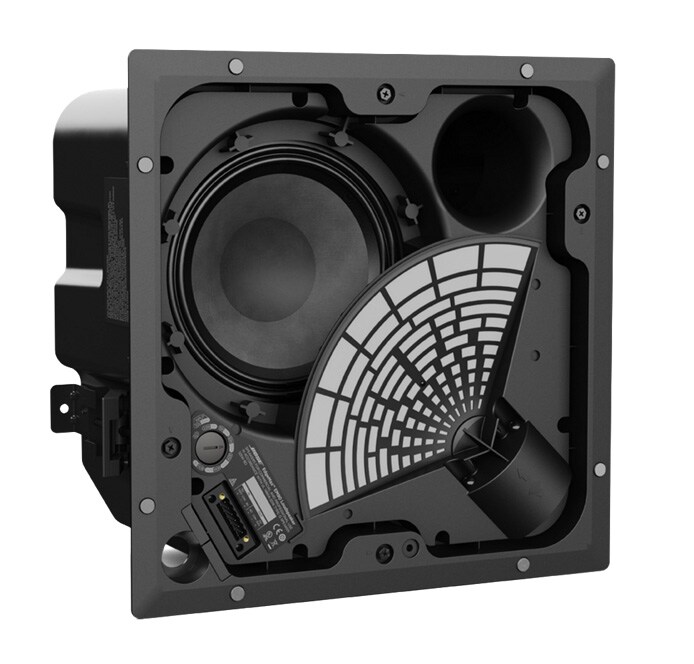

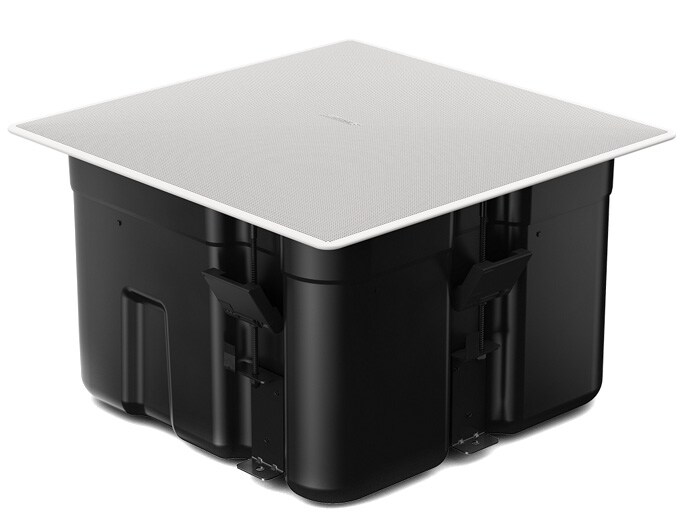

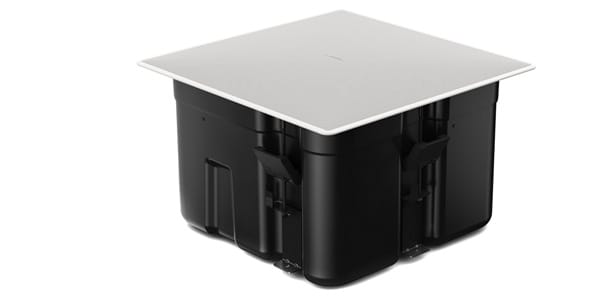

BOSE / EdgeMax EM90

Embedded Ceiling speaker, 8 inch, 8Ω, 100 / 70V compatible, white, 1 piece

■ Embedded Ceiling speaker
■ 8 inch
■ 8Ω, 100 / 70V compatible
■ White
■ 1 piece

■ Technical overview
Frequency characteristics (+/- 3 dB)
50 Hz to 18 kHz
Frequency range (-10 dB)
45 Hz to 20 kHz
Directivity (nominal)
Vertical 75 °
Horizontal 90 °
Allowable input (continuous)
125 W (500 W peak)
Sensitivity (SPL / 1W @ 1 m)
96 dB SPL
Maximum sound pressure level @ 1 m
117 dB SPL (123 dB SPL peak)
Transducer
8 inch woofer x 1
Compression driver x 1
Impedance (nominal)
8 Ω (during transformer bypass)
