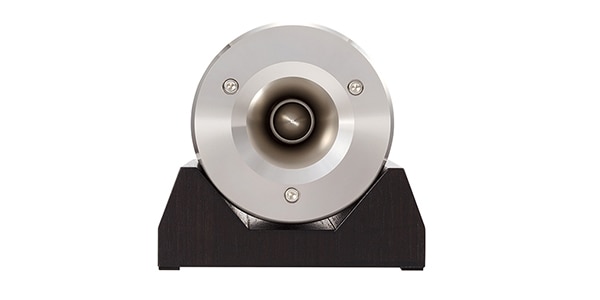

The T500A MkIII features a horn tweeter with a pure magnesium diaphragm, delivering exceptionally clear and transparent sound quality.
■Super Tweeter
■8Ω
■15W

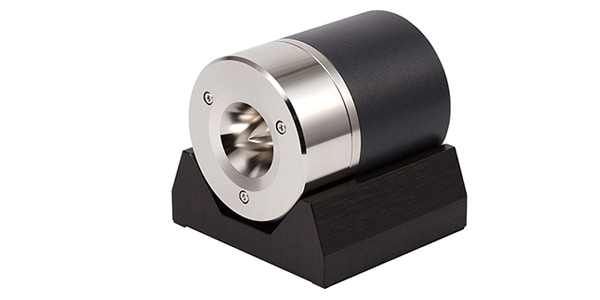

A top-of-the-line horn super tweeter featuring a newly developed ring-shaped pure magnesium diaphragm, a horn and equalizer made from precision-machined solid brass, and a low-distortion Alnico magnet internal magnetic circuit.
●Ring-shaped Pure Magnesium Diaphragm
The newly developed ring-shaped pure magnesium diaphragm minimizes metallic resonance, and through adjustments to material thickness and optimization of surface treatment, it achieves penetrating ultra-high frequency reproduction.
●Platinum-Plated Brass Horn/Equalizer
Equipped with a cylindrical horn and equalizer made from precision-machined solid brass. Platinum plating on the surface provides a fast transient response and a natural, highly transparent sound.
● Alnico Magnet Internal Magnetic Circuit
The magnetic circuit, featuring two stacked Alnico magnets, possesses a powerful magnetic flux density. Copper plating on the pole piece surface reduces current distortion, resulting in high-resolution sound reproduction.

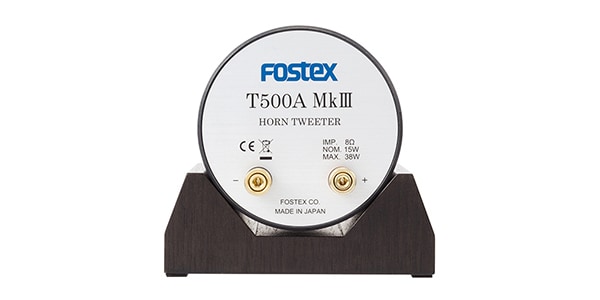

● Copper-Cut Gold-Plated Terminals / Copper-Silver Alloy Internal Wiring
The input terminals utilize gold-plated terminals (copper-cut) compatible with banana plugs. High-quality φ1.4mm copper-silver alloy single-strand wire is used for internal wiring.
● Tungsten Diaphragm Ring
The diaphragm ring supporting the diaphragm uses a tungsten sheet with high vibration damping properties, reducing sound quality degradation due to unwanted vibrations.

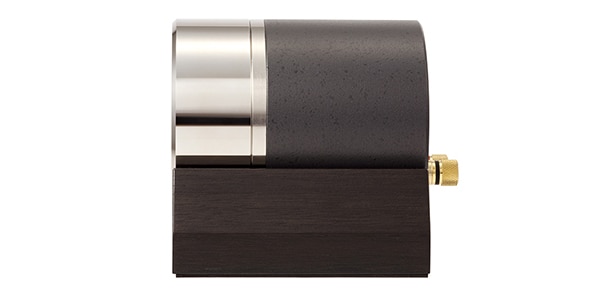

● Walnut Veneer Tweeter Base
A tweeter base is included to securely support the heavy tweeter unit. The surface is finished with walnut veneer and stained dark brown for a sophisticated appearance.
■Impedance: 8Ω

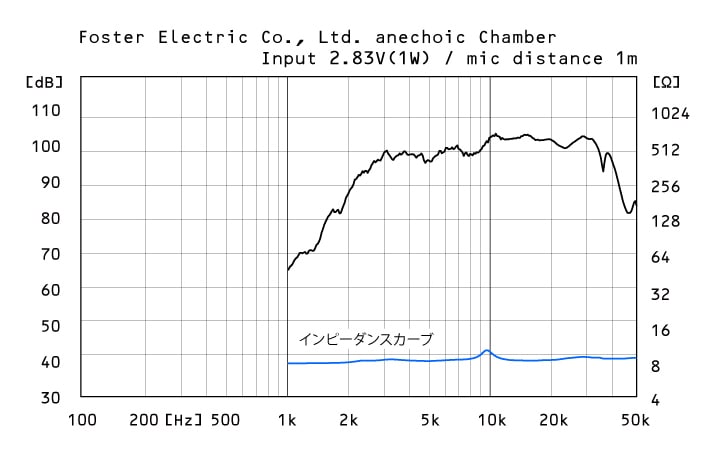

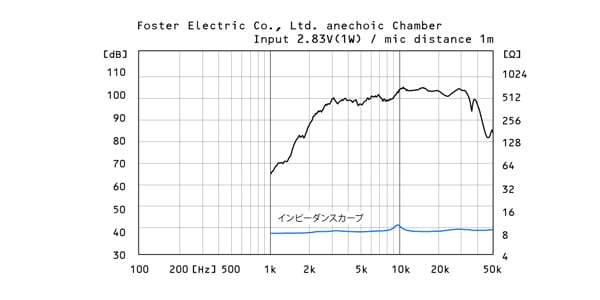

■Frequency Response: 7kHz~40kHz (-10dB)
■Output Sound Pressure Level: 104dB/W (1m)
■Input: 15W (NOM.)
■Cutoff Frequency: 3.5kHz
■Recommended Crossover Frequency: 7kHz (-12dB/oct) or higher
■Magnet Weight: 480g (ALNICO)
■Total Weight: 5150g
■Accessories: Tweeter base x 1, Instruction manual x 1
