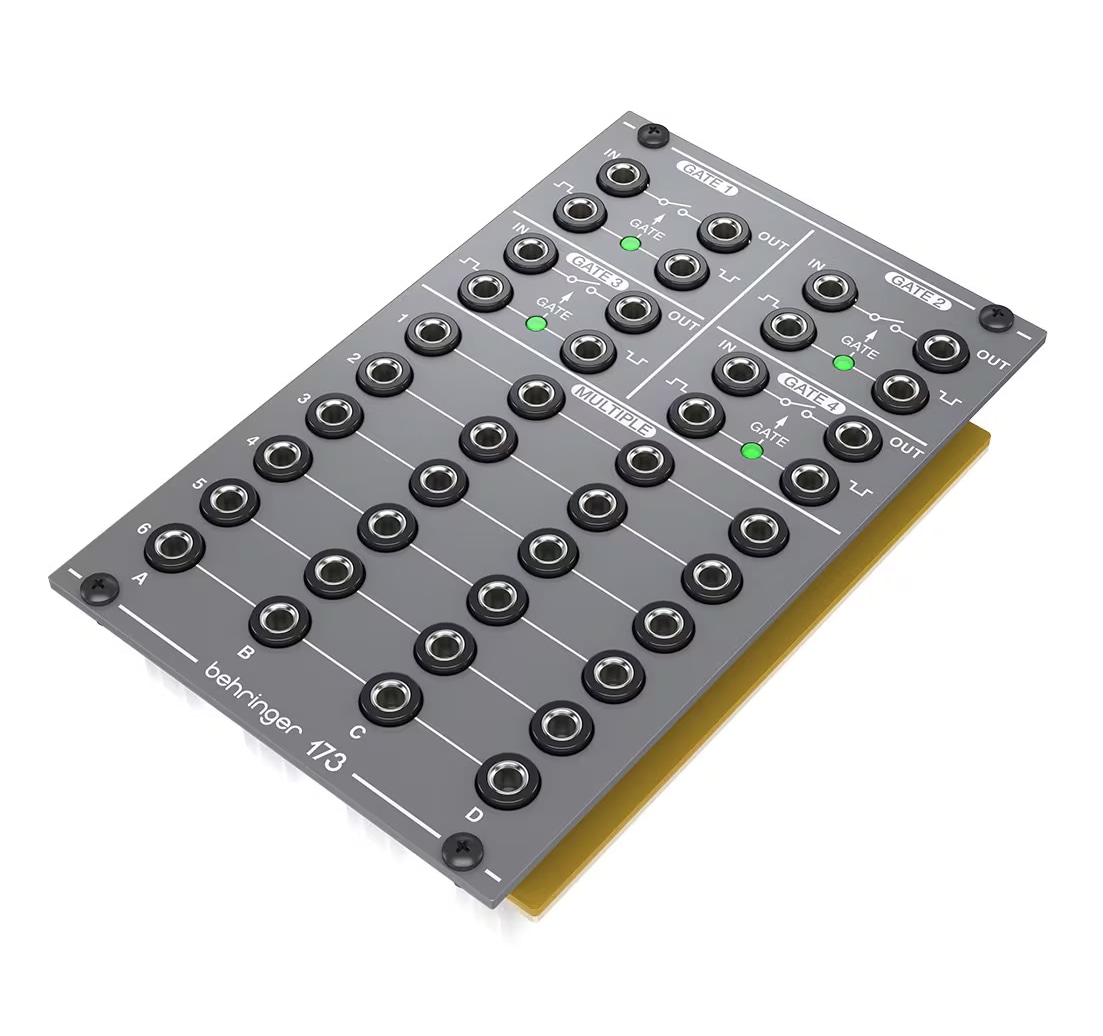

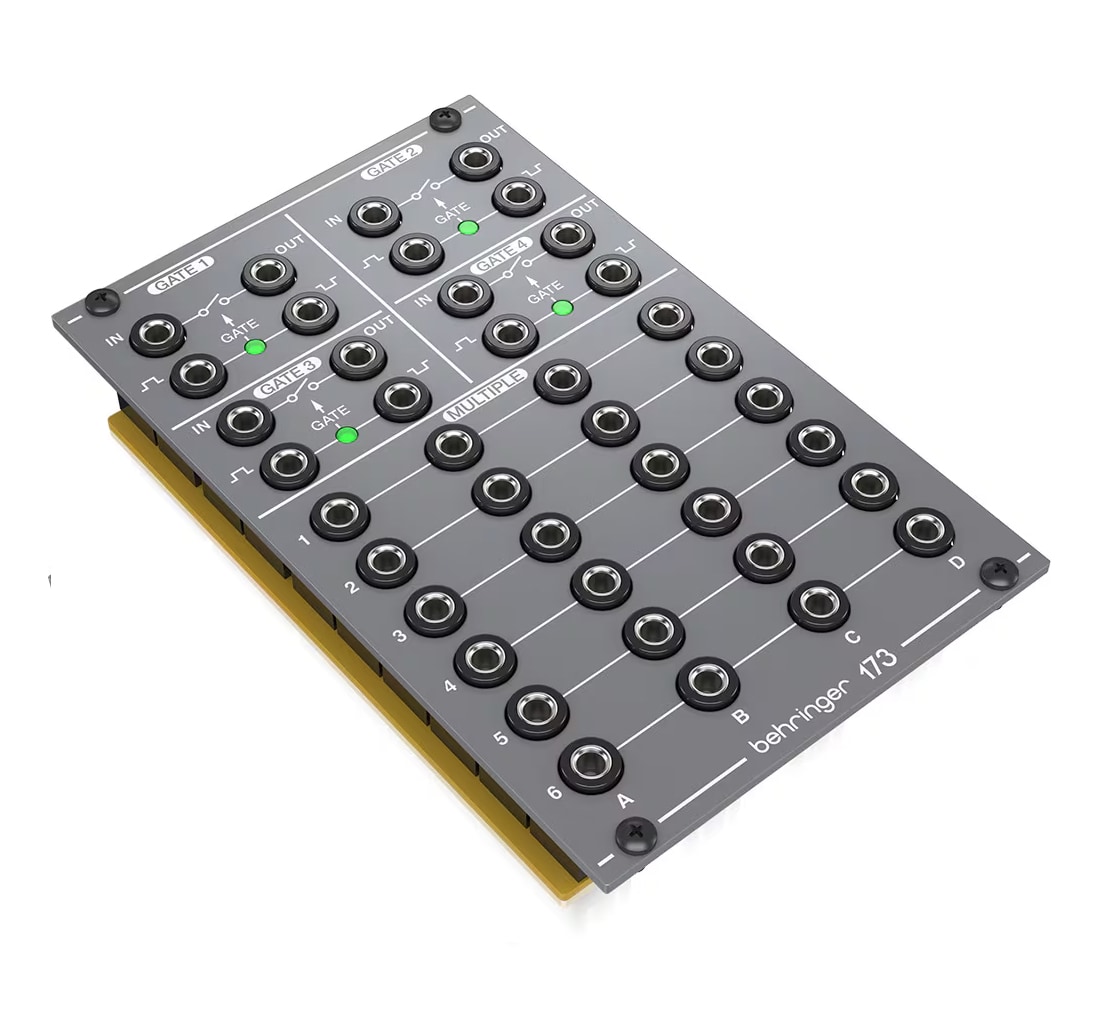

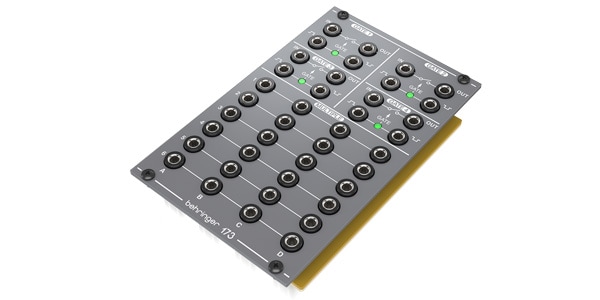

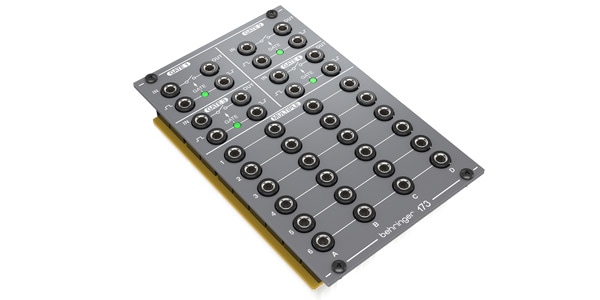

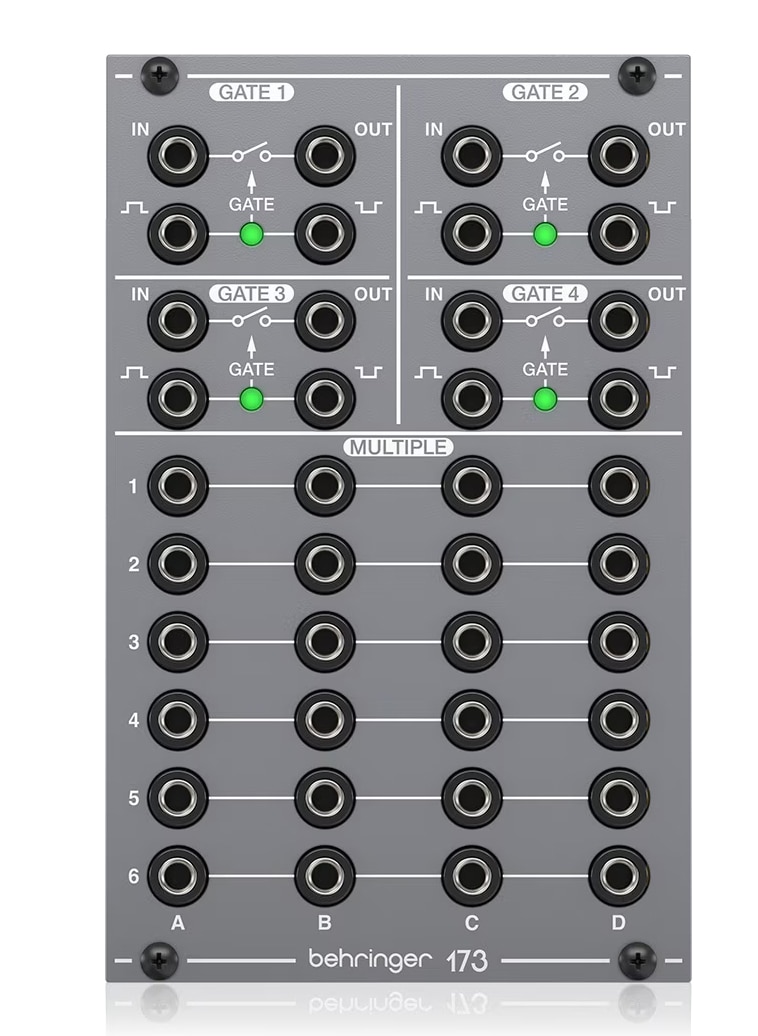

BEHRINGER / 173 QUAD GATE/MULTIPLES

メーカーサイト商品ページ

Variations

with four signal gates (switches) and buffered audio inputs and outputs for instant signal switching. Six-channel multiplexing, each with four floating parallel connectors. This module allows for optimal signal distribution and relaying, allowing for more complex patches and creating more compelling sounds.

FEATURES

Quad signal gate/multi-module that is an authentic reproduction of the legendary “System 100M” circuit from the 80s
Four signal gates (switches) with buffered audio inputs and outputs for instant signal switching
Gate section with positive and negative triggers and LED indicator control inputs
Six-channel multiple jacks with four floating parallel connectors available for signal distribution or relay
Eurorack specifications: 16 HP, 40 mA +12 V, 40 mA -12 V

Specifications

◆Analog synthesizer module

Input: 3.5 mm jack, DC coupled
Impedance: 160 kΩ, unbalanced
Maximum input level: +17 dBu
Output: 3.5 mm jack, DC-coupled
Impedance: 1 kΩ, unbalanced
Maximum Output Level: +17 dBu
Frequency Resonance: DC to 20 kHz
Output Noise: <-90 dBu, 22 Hz-22 kHz
Gate Control: 2 x 3.5 mm jacks, non-inverting and inverting
Impedance: > 50 kΩ, unbalanced
Switching Threshold: Non inverting > +3 V, inverting < +1.5 V
Maximum input level: 10 V p-p
Multiples: 3.5 mm x 24 TS mono jacks, unbalanced
Arrangement: 4 parallel jacks x 6 sets, passive
Compatibility: CV and audio signals
Power Supply: Eurorack
Current: 40mA (+12V), 40mA (-12V)
Dimensions: 28 x 81 x 129 mm
Rack Unit: 16 HP
Mass: 0.18 kg
