DPA / 6060-OC-U-F00

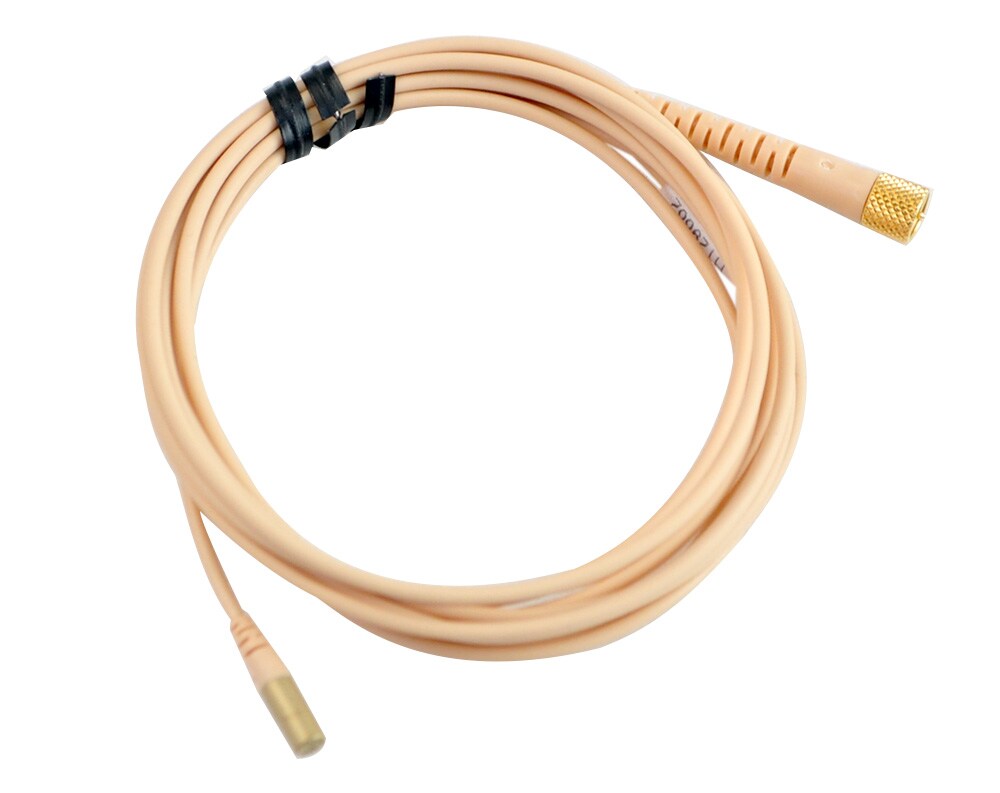

Lavalier microphone, microdot, beige

■Lavalier microphone
■Directivity: omnidirectional
■Cartridge: Pre-polarized condenser type
■Frequency range (±2dB): 40Hz to 20kHz, 4dB soft boost @8 to 20kHz
■Sensitivity (±3dB@1kHz): -34dB re. 1V/Pa
■Equivalent noise level (A weight): 24dB(A) re. 20μPa
■Total Harmonic Distortion (THD): 1% or less (126dB SPL peak)
■Dynamic range: 102dB
■Maximum sound pressure level: 134dB
■Output impedance: MicroDot: 30-40Ω, DAD6001-BC: 100Ω
■Cable extension distance: Maximum 300m (when using DAD6001-BC)
■Power supply: Wireless: 5V-10V, Wired (DAD6001-BC): Phantom DC48V±4dB
■Color: beige
■Weight: 8g (including cable and MicroDot terminal)
■Mic head size: H3.4 x W14.4mm (with grid installed)
■Capsule diameter: 3mm
■Cable length: 1.8m
