ESP / TP20 Aluminum -Horizontal- No.6

The TP20 aluminum tailpiece, Scarlet color, allows you to lock the body while controlling the tension on the bridge. While a typical stop tailpiece moves vertically relative to the guitar body, the Horizontal tailpiece, as the name suggests, moves horizontally. It always has surface contact with the anchor block, so you can lock it completely in your preferred position.

■ Guitar tailpiece
■ ESP Custom Lab Ultimate Series
■ Brass version with rich overtones and natural sustain
(Surface treatment is anodized finish / anchor block is not plated)
■ Features
・ A tailpiece that allows you to lock the body while controlling the tension on the bridge
・ While a typical stop tailpiece moves vertically relative to the guitar body, it moves horizontally
・ The tailpiece body is always in surface contact with the anchor block embedded in the guitar body, so it can be completely locked in your preferred position
・ Moving the body toward the neck increases the tension on the saddle for a tighter sound, and moving it toward the body end decreases the tension on the saddle for a more open sound.
(The tension of the string itself does not change)
・ To adjust the position, loosen the stud bolt slightly and use the position adjustment screw on the rear of the body. The tip of the screw is designed to hit the spacer, so it can be adjusted reliably without interfering with the threaded part of the stud bolt. After adjusting the position, tighten the stud bolt to firmly lock the anchor block and tailpiece.
■Materials

Aluminum A5052: Tailpiece body

Brass: Anchor block

Stainless steel: Stud bolts, stud spacers, and position adjustment screws

Accessories: Anchor block, 2 stud bolts, 2 stud spacers, 2 anchor mounting screws, hex wrench (5mm, 2mm)

■Average weight: Approximately 206g (including studs and anchors)

■Color: Scarlet

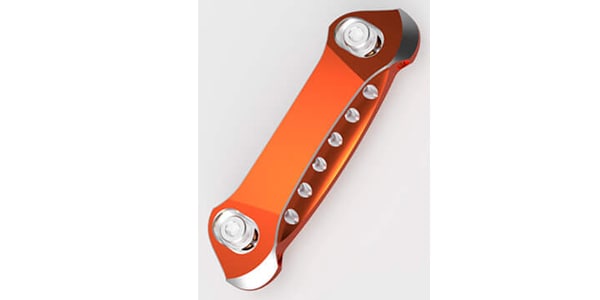

*Images are for illustrative purposes only.

*Please allow approximately 3-4 months for delivery as this is made to order. Please note that orders cannot be cancelled after they have been placed.

*Not compatible with standard stop tailpieces. Installation requires countersinking the guitar body for the anchor block.
