ESP / TP20BRASSCH

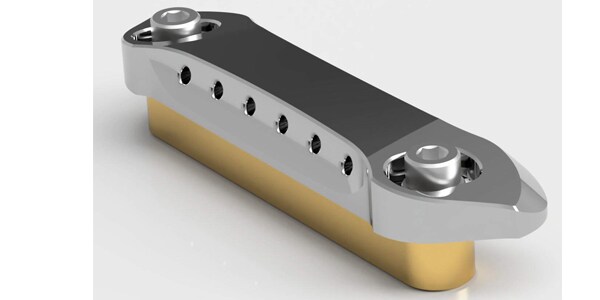

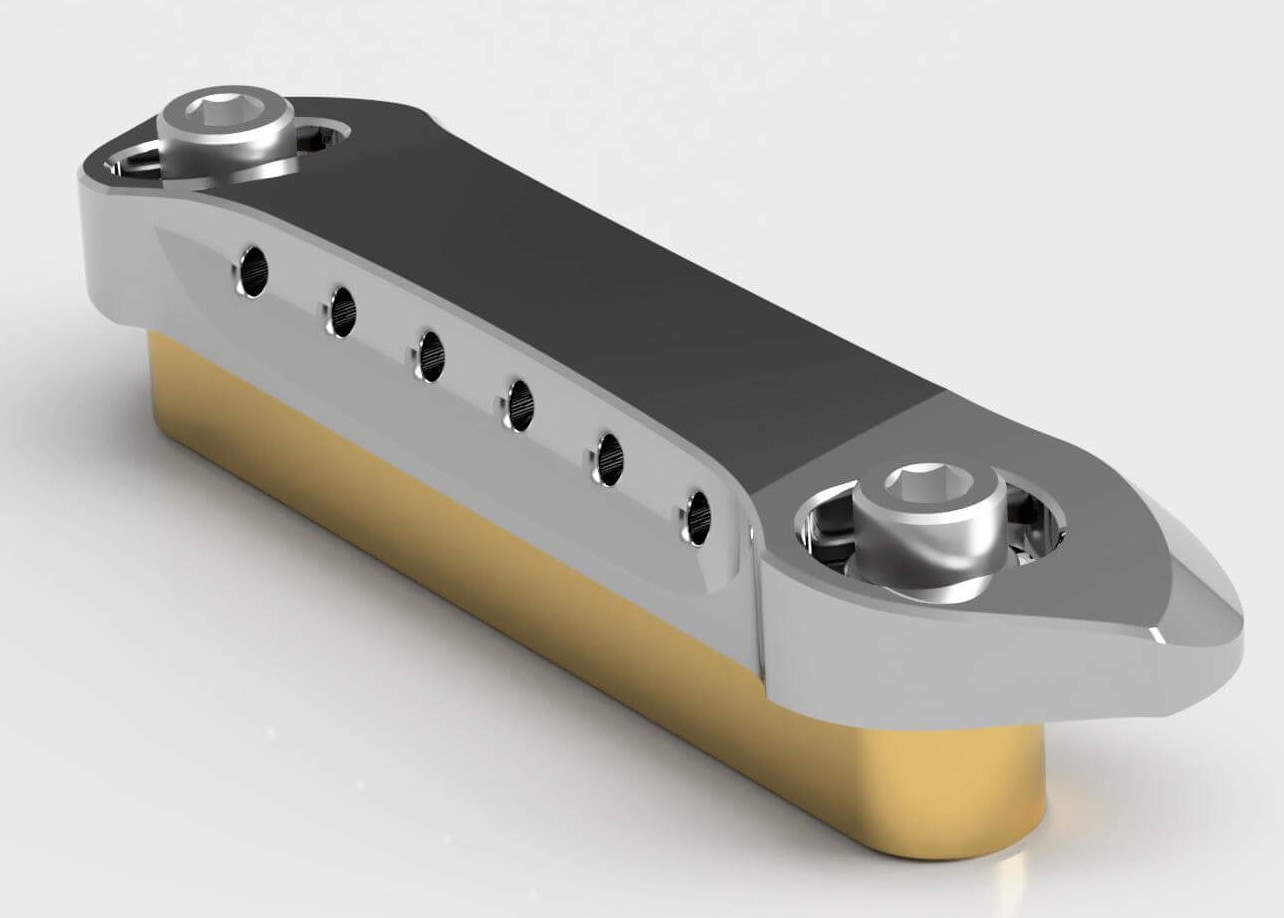

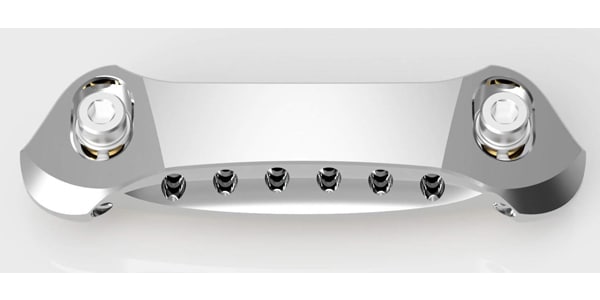

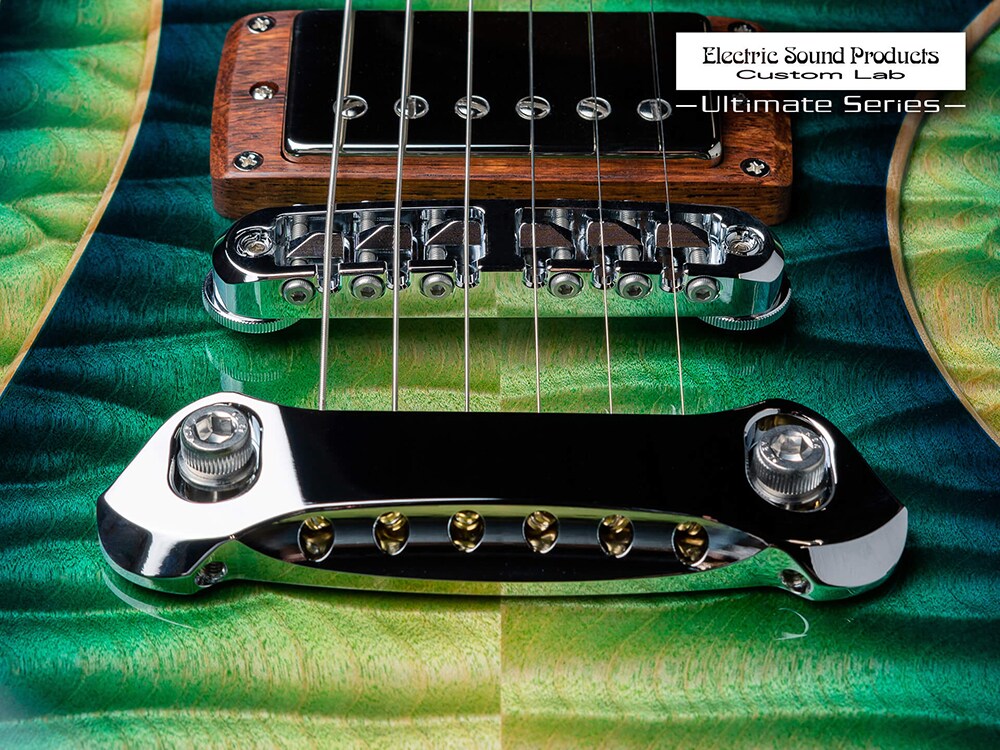

The TP20 tailpiece, made of brass and available in chrome, allows you to lock the body while controlling the tension on the bridge. While a typical stop tailpiece moves vertically relative to the guitar body, the Horizontal tailpiece, as its name suggests, moves horizontally. It is always in contact with the anchor block, so it can be completely locked in your preferred position.

■ Guitar tailpiece
■ ESP Custom Lab Ultimate Series
■ Brass version with long sustain and thick low end
(Surface treatment is plated/Anchor block is not plated)
■ Features
・ A tailpiece that allows you to lock the body while controlling the tension on the bridge
・ A typical stop tailpiece moves vertically relative to the guitar body, but this moves horizontally
・ The tailpiece body is always in surface contact with the anchor block embedded in the guitar body, so it can be completely locked in your preferred position
・ Moving the body toward the neck increases the tension on the saddle for a tighter sound, and moving it toward the body end decreases the tension on the saddle for a more open sound.
(The tension of the string itself does not change)
・ To adjust the position, loosen the stud bolt slightly and use the position adjustment screw on the rear of the body. The tip of the screw is designed to hit the spacer, so it can be adjusted reliably without interfering with the threaded part of the stud bolt. After adjusting the position, tighten the stud bolt to firmly lock the anchor block and tailpiece.
■Materials
Brass: Tailpiece body & anchor block
Stainless steel: Stud bolts, stud spacers & position adjustment screws

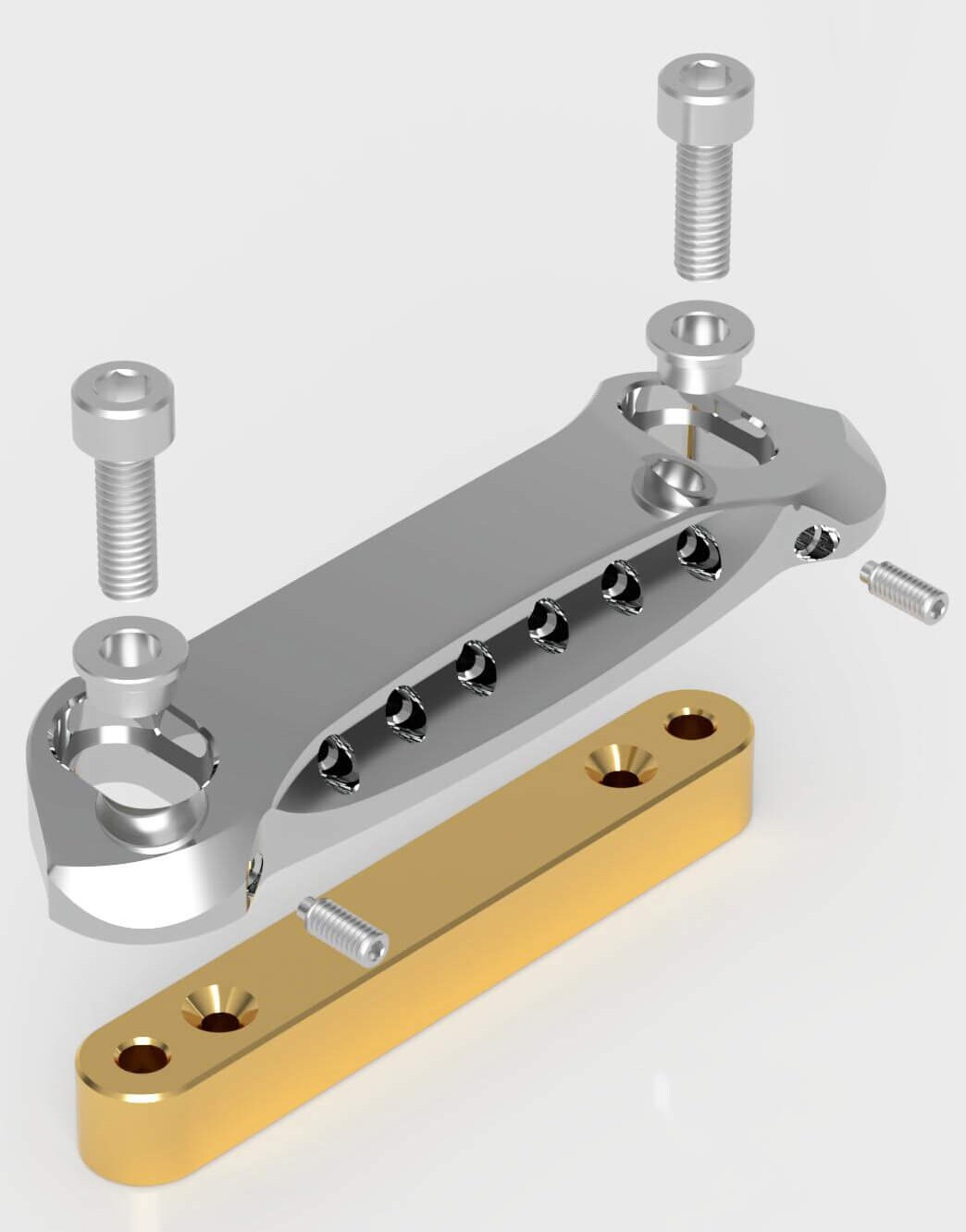

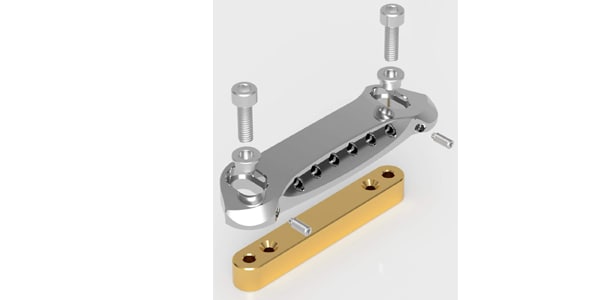

Accessories: Anchor block, 2 stud bolts, 2 stud spacers, 2 anchor mounting screws, hex wrench (5mm, 2mm)
Average weight: Approximately 343g (including studs and anchors)
Color: Chrome

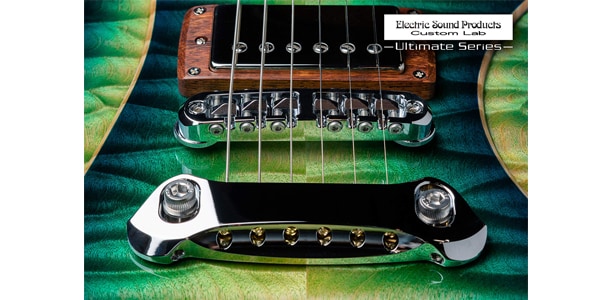

The image is for illustrative purposes only.
This is a made-to-order product, so it will take approximately 3-4 months to complete. Please note that orders cannot be cancelled after they are placed.
Not compatible with standard stop tailpieces. Installation requires countersinking the guitar body for the anchor block.
