ESP / TM20BRASSBK

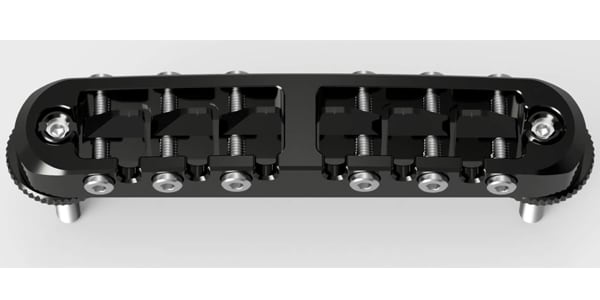

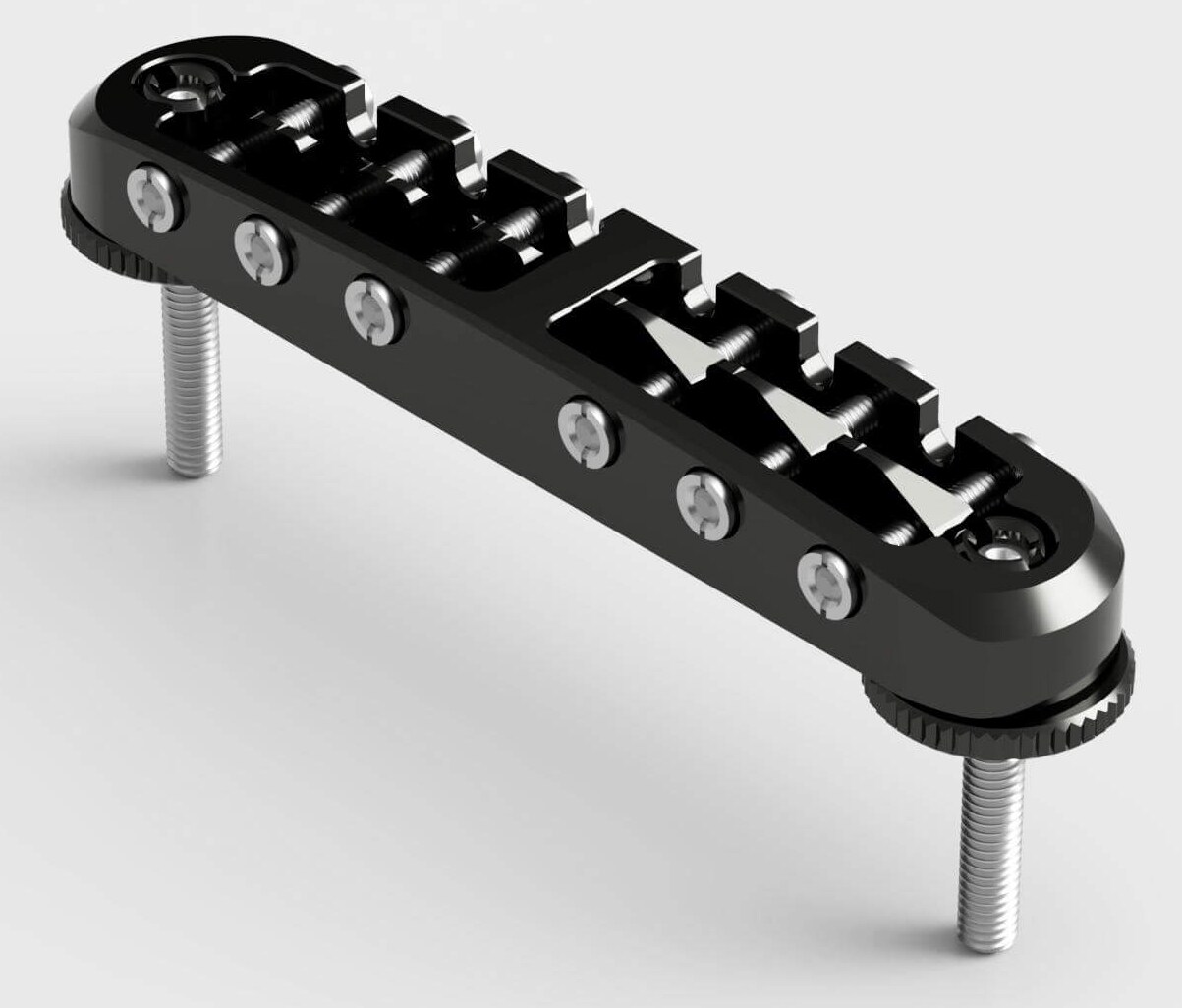

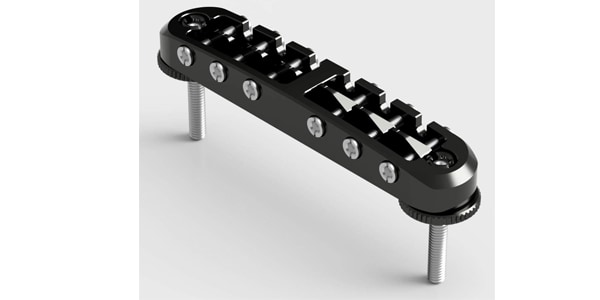

Based on the traditional TOM style bridge, the TM20 guitar bridge is a new design, made of brass and in black. The strings and octave screw are offset from the center, eliminating the part of the bridge that interferes with the strings. The string tension is concentrated on the saddle, eliminating buzzing. It also makes it easier to access the octave screw on the end of the body.

■Guitar bridge
■ESP Custom Lab Ultimate Series
■Brass version with long sustain and thick low end
■Features
・A bridge that incorporates a new design while following the traditional Tune-Matic style bridge
・The strings are shifted from the center of the saddle, and the design offsets the strings and the octave screw.
・The part of the bridge that interferes with the strings at the rear of the bridge can be cut, concentrating the string tension on the saddle and eliminating chatter
・The screws on the body end are easily accessible, and cap screws that use hexagonal wrenches are used, allowing for stress-free octave adjustment
・The base plate is precision-machined from solid brass using CNC machining, with a radius on the top and cuts on the edges to provide a moderate grip without any snagging

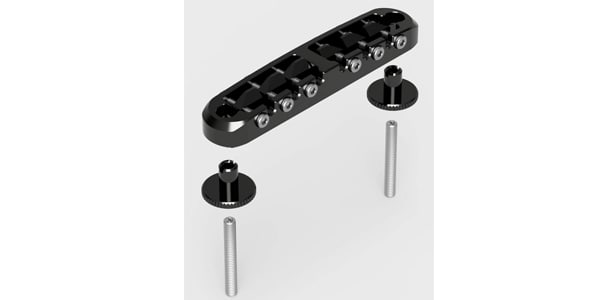

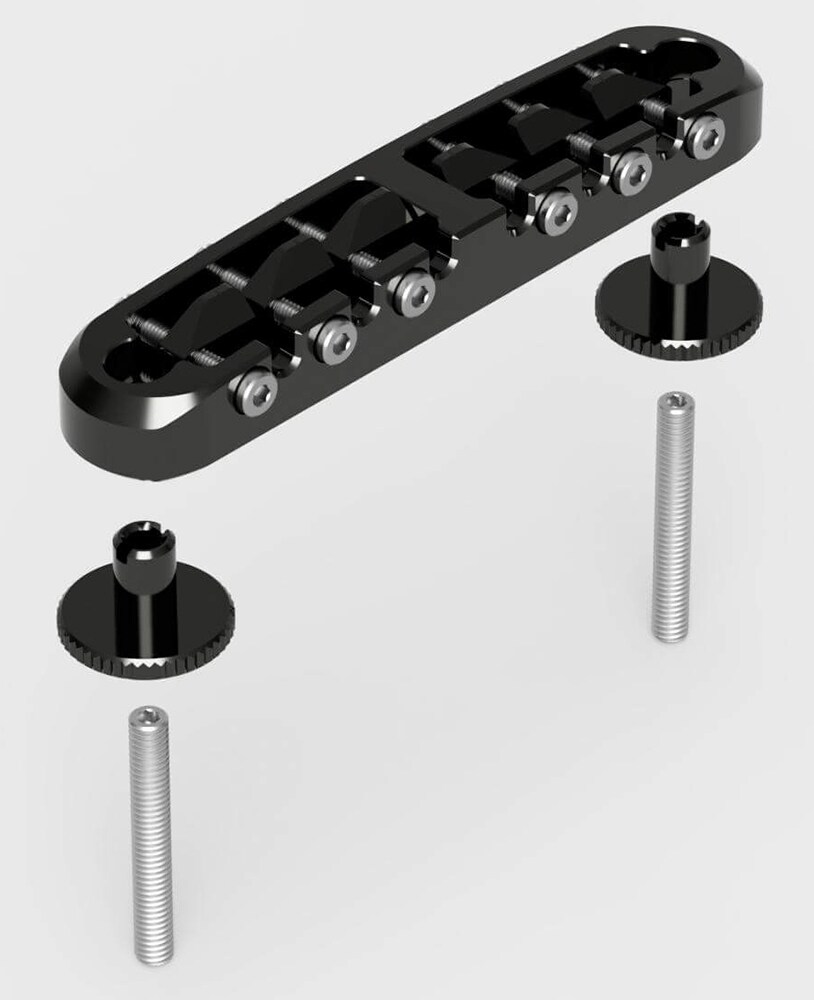

・The stud section combines a wood screw-style stud bolt with a stud nut that has a cylindrical top and a groove for a flathead screwdriver, achieving both a direct sound and easy string height adjustment.
・The clearance between the body and the stud nut is tight, reducing excess play and tilt.
・It can be replaced without processing from a wood screw style Tune Matic, but we recommend changing the stud bolt (wood screw) to the included stainless steel one. For stud anchor style Tune Matic, the stud and anchor can be replaced without processing by using the original ones.

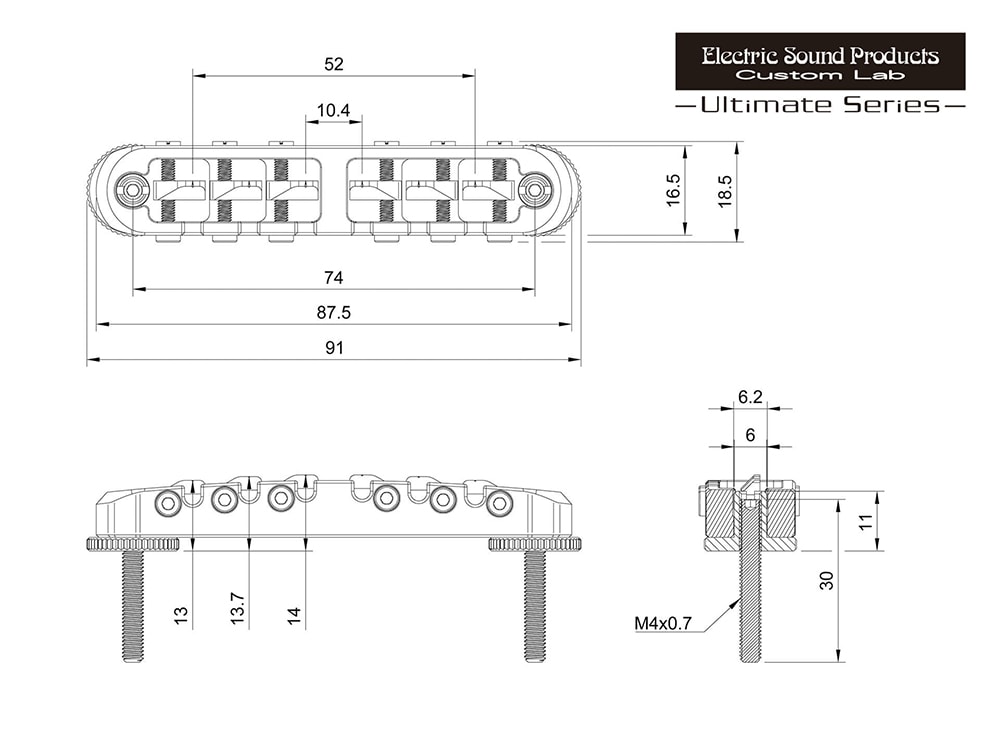

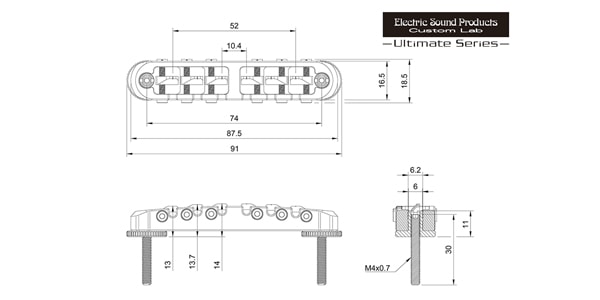

■String pitch: 10.4mm
■Material
・Brass: Base plate & saddle & stud nut
・Stainless steel: Stud bolt & octave screw
■Accessories: 2 stud nuts, 2 stud bolts, hex wrench (2mm)
■Average weight: Approximately 100g (including stud part)
■Color: Black

*Image is for illustration purposes only.
*Please allow approximately 3-4 months for order production. Please note that we cannot accept cancellations after ordering.
*The string groove is shallow for positioning, but we recommend that you process it to match the strings you are using.
*The clearance of the studs is designed to be tighter than usual, so processing such as re-drilling the stud holes may be required.
*Even for compatible models, processing may be required depending on the condition of the guitar.
