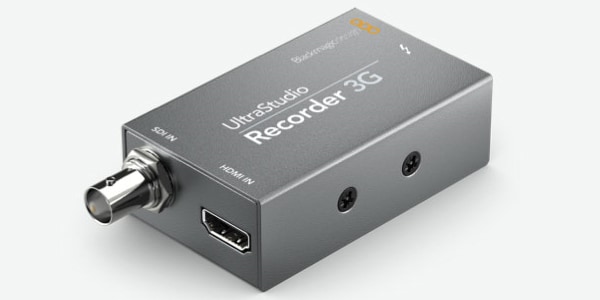

Blackmagic Design / BDLKULSDMAREC3G

[Official Japanese product] Thunderbolt 3 compatible SDI/HDMI video capture solution model. Capture 10-bit uncompressed and compressed video that is compatible with many popular video software including DaVinci Resolve!

■SDI/HDMI video capture

Connections
■SDI video input: 1
■SDI rate: 270Mb, 1.5G, 3G
■SDI audio input:
16ch embedded (SD/HD)
■SDI/HDMI video capture

Connections
■SDI video input: 1
■SDI rate: 270Mb, 1.5G, 3G
■SDI audio input:
16ch embedded (SD/HD)
■HDMI video input: 1
■HDMI audio input:
8ch embedded (SD/HD)
■Computer interface:
Thunderbolt
■Supported codecs:
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4

Software

■ Included software:
For Mac OS and Windows, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility, Blackmagic Driver. For Linux, Media Express, Blackmagic Desktop Video Utility, Blackmagic Driver

■ Internal software upgrades:
Firmware is included in the software driver.
Loaded at system startup or via updater software

■Software applications:

Wirecast

vMix

OBS

Other supported applications:

Cinegy Capture Pro, DevTek EasyMediaSuite, Glookast Capturer, Livestream Producer

Metus Ingest, Softron MovieRecorder, ToolsOnAir just:in, Burst Video WebClip2Go & [REC]Marker, Zoom

SDI video formats

■SD video formats:

525i59.94 NTSC, 625i50 PAL
■HD video formats:
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
■2K video formats:
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
■SDI standards:
SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M, SMPTE 425M A/B
■Supported SDI metadata:
RP 188/SMPTE 12M-2, Closed Caption
■SDI audio sampling:
TV standard sample rate (48kHz/24-bit)
■SDI video sampling:
4:2:2, 4:4:4
■SDI color precision:
8/10/12-bit RGB 4:4:4 (up to 1080p30), 8/10-bit YUV 4:2:2 (all formats)
■SDI color space:
REC 601, REC 709, REC 2020
■Supported multi-rates:
SDI video connection switchable between SD/HD

HDMI video formats

■SD video formats:
525i59.94 NTSC, 625i50 PAL
■HD Video Formats:
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97
1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
■HDMI Audio Sampling:
TV Standard Sample Rate (48kHz/24bit)
■HDMI Video Sampling:
4:2:2, 4:4:4
■HDMI Color Precision:
8-bit RGB 4:4:4, 8-bit YUV 4:4:4
12-bit YUV 4:2:2 (all formats)
■HDMI Configuration:
HDMI 2.0a supports Deep Color.
■HDMI color space:
REC 601, REC 709, REC 2020
■Supported multi-rate:
HDMI video connection can be switched between SD/HD
■Copy protection
Capture from copyrighted HDMI sources is not possible.
Please confirm copyright ownership before capturing or distributing content.
■Hardware frame buffer:
v210 (10-bit YUV), 2vuy (8-bit YUV), ARGB, BGRA (8-bit RGB), r210 (10-bit RGB), R12B, R12L (12-bit RGB)
■SIZE: 91.9 (W) x 24.9 (H) x 45.0 (D) mm, 158g

※ The warranty period for this product is 1 year from the manufacturer.
