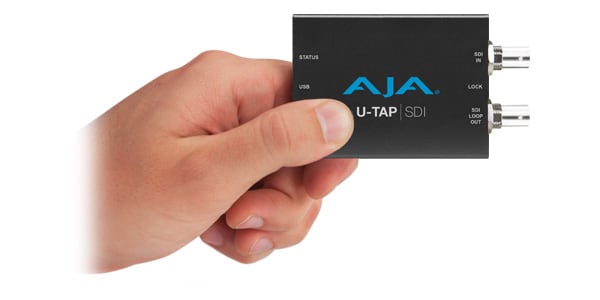

AJA Video Systems / U-TAP-SDI

HD/SD USB 3.0 capture device with 3G-SDI input for Mac/Windows/Linux. Bus-powered, no drivers or software required.

Video formats
■Video (SDI):
(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920 x 1080i 25, 29.97, 30
(HD) 1280 x 720p 50, 59.94, 60
(SD) 625i 25
(SD) 525i 29.97
■Scaling (USB), frame rates for all formats: 7.5, 15, 25, 29.97, 30, 50, 59.94, 60:
1920 x 1080p
1440 x 1080p
1280 x 720p
1024 x 576p
960 x 540p
856 x 480p
800 x 600p
768 x 576p
720 x 576p
720 x 480p
640 x 480p
640 x 360p
432 x 240p
352 x 288p
320 x 240p
176 x 144p
■Digital Video Input:
3G-SDI, SMPTE-259/292/424, 4:2:2 (1 x BNC)
*Note: U-TAP-SDI does not support 3G-SDI Level B.

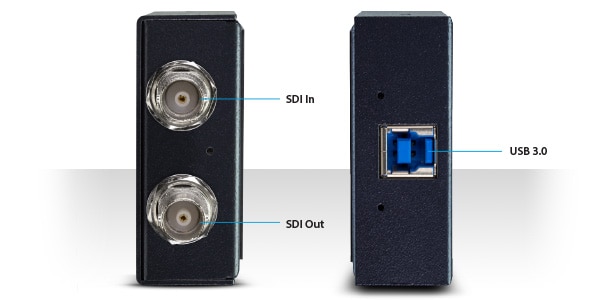

■Video loop output:
3G-SDI x 1 (BNC x 1)
■Digital audio input:
2 channel, 24-bit SDI embedded audio, 48 kHz sample rate
■Video capture:
16-bits/pixel, YUV (video input will be truncated if necessary)
■Audio capture:
2 channel, 16-bit, 48 kHz sample rate (audio input will be truncated if necessary)
■Host interface:
USB 3.0/USB 2.0 UVC/UAC compatible
SIZE:104.14(W)x25.4(H)x60.96 (D) mm　0.2 kg
