ESI / UGM192 Audio Interface

ESI / UGM192 is a compact audio interface for guitarists. Comes with a reliable Sound House 3-year warranty!

■USB Audio Interface

A compact, palm-sized mobile interface that is a must-have for guitarists

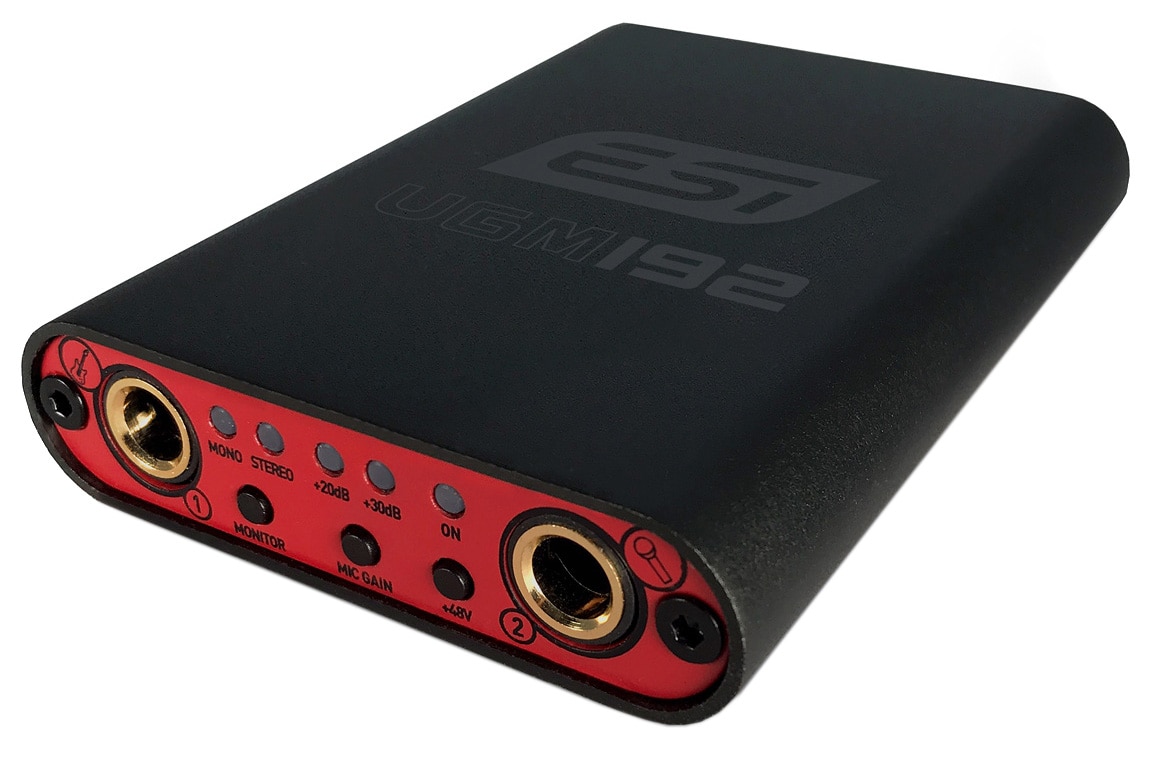

ESI UGM192 is a mobile USB 3.1 audio interface that is ideal for recording microphones and guitars. It is compact enough to fit in your pocket, has a USB 3.1 Type-C connection, and high-end specifications of 24bit/192kHz. The front of the unit is equipped with a professional microphone input and Hi-Z (instrument) input that supports phantom power. You can connect audio signals from condenser microphones and electric guitars to PCs, Macs, or mobile devices such as smartphones and tablets that support USB audio.

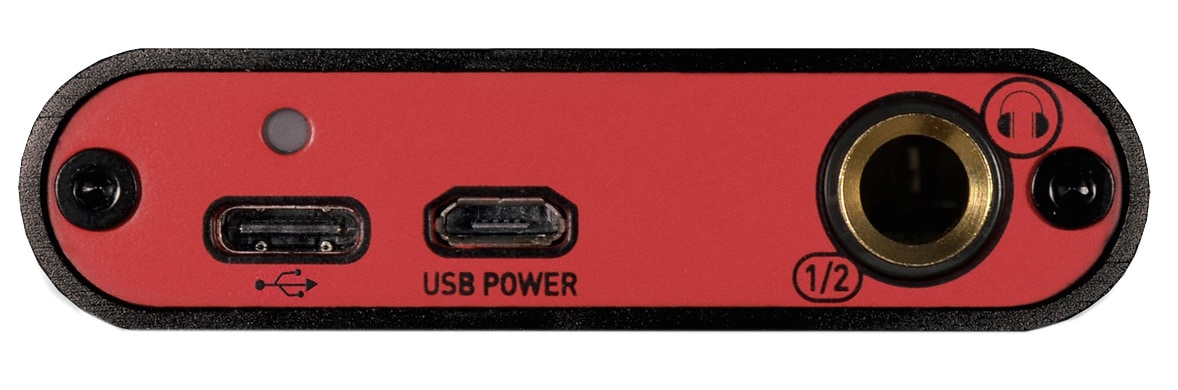

The back of the unit is equipped with a line/headphone output, allowing real-time (zero latency) monitoring via headphones, as well as the connection of studio monitors. It also has an optional USB power connector for power supply, and can be powered using a USB battery, so you can enjoy recording on the go or outdoors. It also has ESI's unique DirectWire (Windows only) function that enables free audio routing within the computer. This allows loopback recording inside the computer.

■Features
・USB 3.1 audio interface
・USB 2.0 compatible
・USB bus powered
・Optional USB power supply terminal (microUSB) for connecting a mobile battery, etc.
・Balanced 1/4"" TRS microphone input terminal equipped with professional microphone preamps
・48V phantom power
・1/4"" TS input terminal for high impedance (Hi-Z)
・1/4"" TRS stereo line output terminal that also serves as a headphone terminal
・DA/AD converter with dynamic range of 114dB and 24bit/192kHz
・Compatible with Windows 7-10, macOS 10.9 and above, and iOS
・EWDM driver (Windows: ASIO 2.0, MME, WDM, DirectSound - 32/64bit)
・Compatible with macOS Core Audio (32/64bit)
・DirectWIRE output channel routing with loopback function (Windows)
・Compact and easy to carry size: approx. 87 mm x 67 mm x 17 mm

inTone 2 ESI Edition by Audified included
UGM192 comes with inTone 2 ESI Edition by Audified, a powerful jamming tool with audio playback, recording & mixing, and numerous guitar and bass effects. It is useful for guitar practice, recording, and even as a powerful effects processor for use on stage, supporting guitarists and bassists.

■Specifications
Interface
USB 3.1 audio interface (USB-C terminal, Type-C cable included)
USB 2.0 compatible (USB Type-A to C cable included)
USB bus powered
Optional USB power supply terminal (microUSB)

Microphone preamp
TRS balanced 1/4"" x 1
48V phantom power
Maximum input level: -8.6dBu
+10dB / +20dB gain options
Impedance: 2.2kΩ

HI-Z instrument input
TS unbalanced 1/4"" x 1
Maximum input level -8.4dBu
Impedance: 500kΩ

AD converter
24bit / 192kHz
Dynamic range: 114dB (A-weighted)
THD+N: -100dB (@ -1dBFS)

Line/headphone output
TRS 1/4"" stereo x 1
Maximum output level: +6.4dBu (@ -0dBFS)
THD+N: 0.0024% A-weighted (@ fs=48kHz)
Impedance: 32-600Ω

DA converter
24bit / 192kHz
Dynamic range: 114dB (A-weighted)
THD+N: -100dB (@ -0dBFS)

Other
DirectWIRE output channel routing support (Windows)
DirectWIRE loopback function (Windows)

System requirements
Windows 7-10 / ASIO 2.0, MME, WDM, DirectSound
macOS 10.9 or higher / No CoreAudio driver required
iOS / iPad OS

Size and weight
Approx. 87 mm x 67 mm x 17 mm
Approx. 100 g
