Ronk Japan / RWE01S

Transmitter for 2.4GHz digital wireless ear monitor system. Can be expanded unlimitedly on the same channel, allowing multiple people to monitor. Realizes high quality sound with 24bit/96kHz stereo. Equipped with automatic channel search function, it pairs automatically.

■Set contents
・Transmitter (including 2 antennas)
・Receiver
・AC adapter
・Leather case for receiver

■Wireless in-ear monitor system specifications (RWE01S)
Frequency range: 2,400~2,483.5MHz
Modulation method: GFSK
Antenna output: 10mW
Occupied frequency: 4MHz+4MHz
Sampling frequency: 96KHz
Data size: 24bit/Stereo
Available channels: Any 1ch out of 16ch
Simultaneous channels: Maximum 4ch
Delay: 1. 58mS
Maximum reach: Approximately 30m (line of sight)
Connectable receivers: Unlimited (sound quality does not deteriorate with the addition of more units)

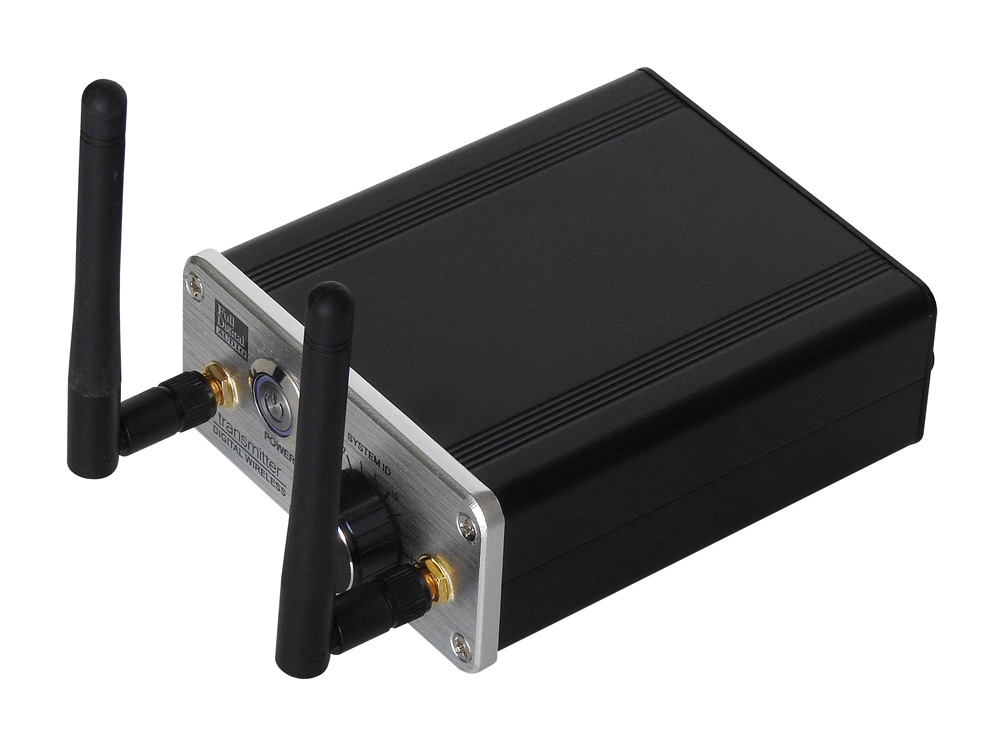

■Transmitter (RWE01T)
Impedance: 10KΩ
Maximum input level: 2W/RMS
Antenna connector: SMA
Input connector: φ6.3mm (1/4"") TRS x 2
Power supply: AC100~240V, 50/60Hz
Power consumption: 0.84W
Operating temperature: 0℃~50℃
External dimensions: 88(W)×38(H)×124(D)mm *Excluding antenna
Weight: Approximately 270g *Antenna excluded

■Receiver (RWE01R)

Impedance: 32Ω

Maximum output level: 80mW

Antenna: Built-in

Output connector: φ3.5mm

Power source: 2 AA batteries

Continuous use time: Approximately 10 hours (increases or decreases depending on volume)

Usage temperature: 0℃~50℃

External dimensions: 64.3 (W) x 90 (H) x 21 (D) mm

Weight: Approximately 72g (excluding batteries)

■Frequency used

1CH: 2,403MHz + 2,480MHz

2CH: 2,405MHz + 2,478MHz

3CH: 2,407MHz + 2,476MHz

4CH: 2,409MHz + 2,474MHz

5CH: 2,411MHz + 2,472MHz

6CH: 2,413MHz + 2,470MHz
7CH:2,415MHz + 2,468MHz
8CH:2,417MHz + 2,466MHz
9CH:2,419MHz + 2,464MHz
10CH:2,421MHz + 2,462MHz
11CH:2,423MHz + 2,460MHz
12CH:2,425MHz + 2,458MHz
13CH:2,427MHz + 2,456MHz
14CH:2,429MHz + 2,454MHz
15CH:2,431MHz + 2,452MHz
16CH:2,433MHz + 2,450MHz""

*Stereo output from transmitter to receiver. Also, if you plug it into the right side only, it will be set to MONO, and the receiver will hear MONO audio from both ears.
