AKG / 5100253-00

A 2.4GHz wireless system for musical instruments with simple operation and clear sound quality. Its excellent communication performance allows up to eight units to be used simultaneously in the same area. It is suitable for a wide range of situations, such as lectures. When operating simultaneously, an ID can be assigned and displayed for each transmitter and receiver. The abundant display information makes management easy. It uses a diversity system to achieve stable transmission and reception.

■System specifications
Carrier frequency: 2.4GHz band (2402MHz-2480MHz)
Encryption: 256-bit AES
Maximum number of systems: Up to 8 systems can be used in the same area *1
Maximum reach: Approximately 30m *The reach of the radio wave varies depending on the radio wave conditions, and the presence or absence of reflection and interference *2
Latency: 2.9ms or less
Radio wave format: F1D
Modulation method: GFSK (Gaussian filter shift keying)
Number of tuners: 1ch
RF output: 10mW
THD: 0.05% or less
Frequency characteristics: 70Hz-20kHz (+1/-3dB)
Dynamic range: 116dB
AD-DA conversion: 24bit, 48kHz

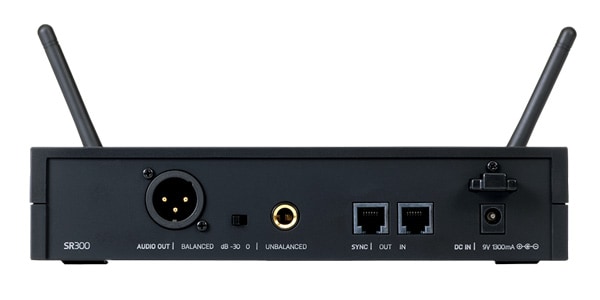

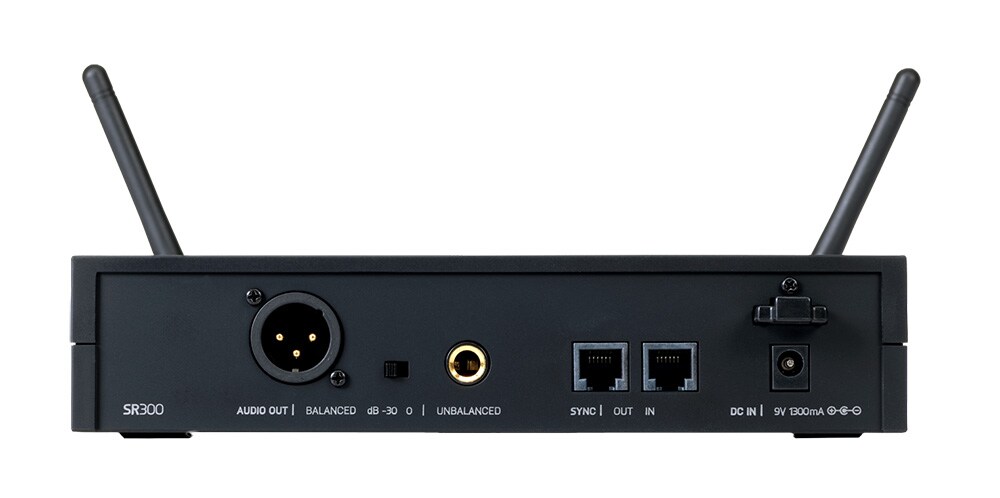

■Receiver
Number of tuners: 1ch
Output terminal: XLR or TS phone
Maximum output: XLR: +15dBu, TS Phone: +9dBu
Power supply: Power adapter (AC100V, 50/60Hz), DC 9V (1.3A),
Dimensions (W x H x D): 200 x 44 x 141mm (excluding protrusions)
Weight: 404g
■Bodypack transmitter
Antenna type: Built-in
Power supply: 2 x AA alkaline batteries
Battery life: Approximately 12 hours *Varies depending on usage and environment.
Dimensions (W x H x D): 64 x 82 x 24 mm (excluding protrusions)
Weight: 68 g
■Accessories
・Receiver
・Bodypack transmitter
・Instrument connection cable
・Antenna x 2
・AA alkaline batteries x 2
・Sync cable (approx. 28 cm)
・Power adapter
※1 The receiver has one tuner, so one receiver can receive one microphone. The maximum number of units that can be operated simultaneously is the maximum number that can be operated simultaneously when used in a situation where there is no radio interference.
※2 Since the 2.4 GHz frequency is used, the communication distance may be shortened or the sound may be interrupted if there is an obstacle between the transmitter and receiver, if the transmitter or receiver is placed directly on the ground or floor, if it is used outdoors in the rain, or if it is used in a place where devices that emit radio waves such as wireless LAN or microwave ovens are used. If it does not work properly, remove the obstacle or change the location of use.
