ROLAND / VAD506

V drum set

Main specifications
●Kit configuration:

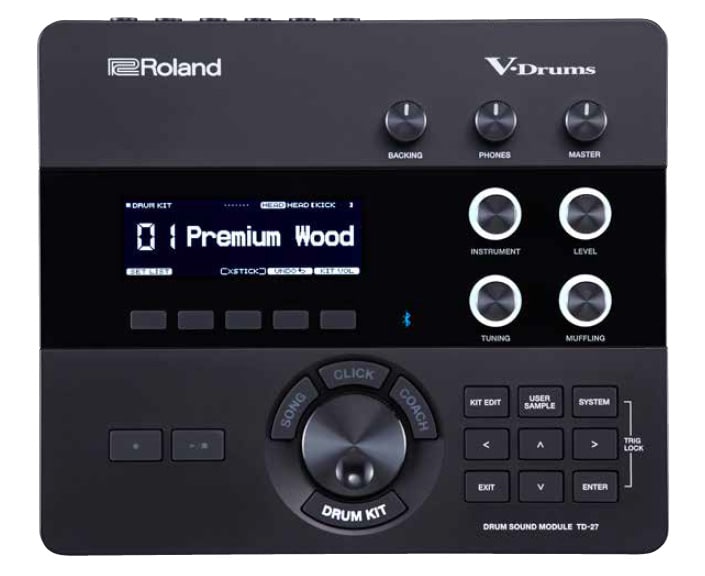

Drum sound module: TD-27 x 1
Snare: PD-140DS x 1
TOM 1: PDA100-MS × 1
TOM 2: PDA120-MS x 1
TOM 3: PDA140F-MS x 1
Hi-hat: VH-10 x 1
Crash 1: CY-14C-T x 1
Crash 2: CY-16R-T x 1
Ride: CY-18DR x 1
Kick: KD-200-MS x 1
Drum combination stand: DCS-10 x 2
Drum boom stand: DBS-10 x 1
All purpose clamp: APC-10 x 1
*Kick pedal, snare stand, hi-hat stand, throne, SD card are not included in the product.
● Trigger input jack for expansion:
4 (AUX1 to AUX3, crash 2)
*The crash 2 terminal is used to connect the second crash CY-16R-T.
●Dimensions (required area)
1,800 (width) x 1,400 (depth) x 1,200 (height) mm (including kick pad, cymbal, hi-hat stand, chair)
● Weight: 52.0 kg
● Accessories:
Sound source mount, AC adapter, dedicated connection cables, connection cable (for Crash 2), drum key, setup guide, instruction manual (warranty), Roland user registration card
*Drum stand, kick pedal, snare stand, hi-hat stand, throne, SD card are not included in the product.

● Sold separately
Personal drum monitor: PM series
Stereo headphones: RH-300V
V drum accessory package: DAP-3X
Noise eater: NE-100B, NE-10, NE-1
