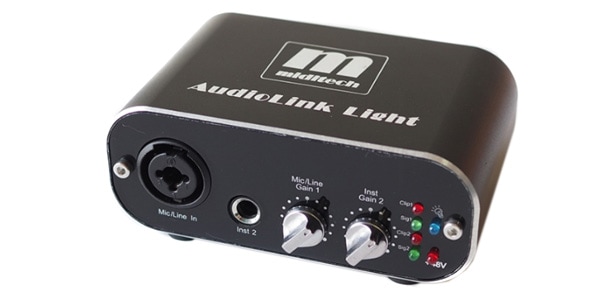

MIDITECH / AUDIOLINK LIGHT

Audio interface with combo jack input 1ch and INST input 1ch.

■Audio interface
2IN/2OUT (combo jack 1, INST input 1)
■USB

■Features
・Class compliance USB audio interface
(No driver software installation required)
・Supports Windows8/10 and MacOSX (10.2.6 or higher)
・Maximum sampling rate 48kHz
・Bit rate 16bit
・Equipped with one XLR input terminal and two Hi-Z input terminals
・+48V phantom power
・Equipped with a direct monitor switch
・USB bus power

■Specifications
・Compatible driver class compliance
・Quantization bit number 16bit AD/DA
・Supported sampling rates 32,000, 44,100, 48,000 (Hz)
・Frequency characteristics 10Hz to 20kHz ± 1dB (44.1kHz), 10Hz to 22kHz ± 1dB (48kHz)
・Total harmonic distortion rate 0.05% (standard -10dBV, 1kHz)
・Crosstalk -77dB (0dB input, 1kHz)
・S/N ratio A/D: 89dB (standard, 1kHz, A characteristic), D/A: 96dB (standard, 1kHz, A characteristic)
・Dynamic range >86dB (A characteristic)
・Dimensions, weight 11.4×7×4.5(Cm), 0.22Kg
・Accessories: USB cable, instruction manual
