MIDITECH / AUDIOLINK3

MIDITECH / AUDIOLINK3 is an easy-to-use USB audio interface. Comes with a reliable 3-year Sound House warranty!

■Audio interface
■2IN/2OUT
■USB

Audiolink III is a USB audio interface with two combo jack input terminals that can supply phantom power. In addition to being able to connect a microphone or guitar to music production software such as a DAW via USB connection and record, it is also possible to play computer audio with high sound quality. It is also equipped with a headphone terminal and a monitor switch that enables direct monitoring. It is also equipped with a phone jack input terminal on the back, and is packed with functionality. It is also possible to switch the monitor between stereo and mono when direct monitoring. It is an interface with excellent cost performance.

■Features
・ Class-compliant USB audio interface
(No driver software installation required)
・ Compatible with Windows 10 and MacOSX (10.3.9 or later)
・ Maximum sampling rate 48kHz
・ Bit rate 16bit

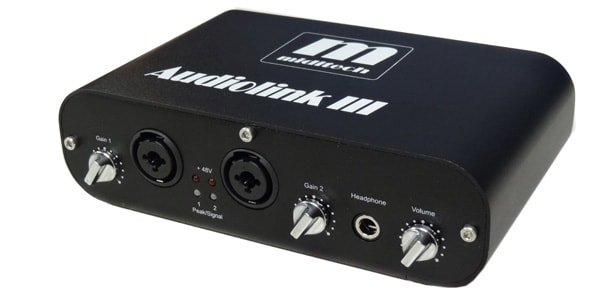

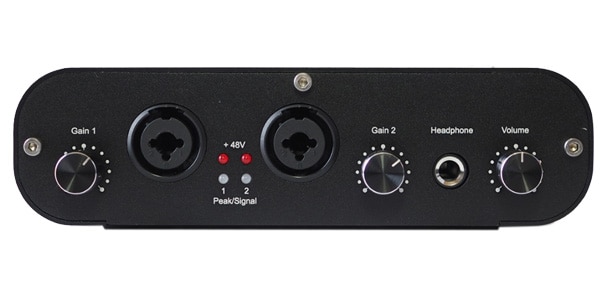

・ Equipped with two XLR and Hi-Z input terminals (front)
・ +48V phantom power supply possible
・ Equipped with headphone terminal
・ USB bus power

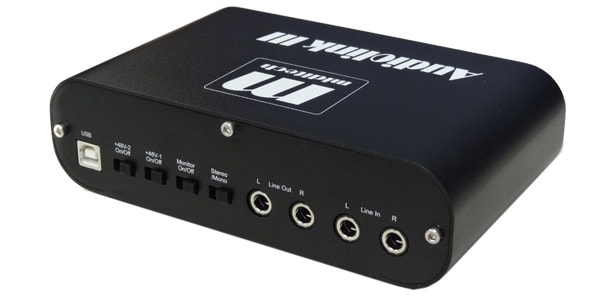

・ Equipped with line input terminals (L/R) on the rear panel
・ Equipped with direct monitor switch
・ Stereo/mono switching possible when monitoring

■Specifications
・ Compatible driver Class compliance compatible
・ Quantization bit rate 16bit AD/DA
・ Compatible sampling rate (Hz) 8,000, 9,600, 11,025, 12,000, 16,000, 22,050, 24,000, 32,000, 44,100, 48,000
・ Frequency response 10Hz to 20kHz ± 1dB (44.1kHz), 10Hz to 22kHz ± 1dB (48kHz)

- Stereo output Dynamic range: >95dB (standard, -60dB input, A-weighted) S/N ratio >95dB (standard, A-weighted), Total harmonic distortion -90dB (standard)

- Microphone input Dynamic range: >90dB (standard, -60dB input, A-weighted) S/N ratio >90dB (standard, A-weighted)

- INST/LINE input Dynamic range: >90dB (standard, -60dB input, A-weighted) S/N ratio >90dB (standard, A-weighted)

- Crosstalk -77dB (standard, -60dB input, A-weighted)

- LINE input adjustment range Maximum +40dB

- LINE output level -10dBV (standard), +1.7dBV (maximum), 564g

Accessories: USB cable, instruction manual

Dimensions: 17.3 x 10.8 x 5 cm

Weight: 0.56Kg
