BEHRINGER / CP35 ATTENUATORS

BEHRINGER / CP35 ATTENUATORS

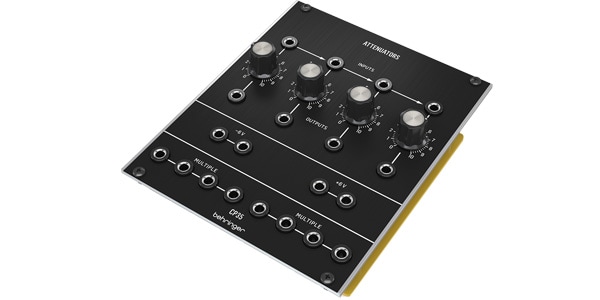

  • BEHRINGER / CP35 ATTENUATORS画像1

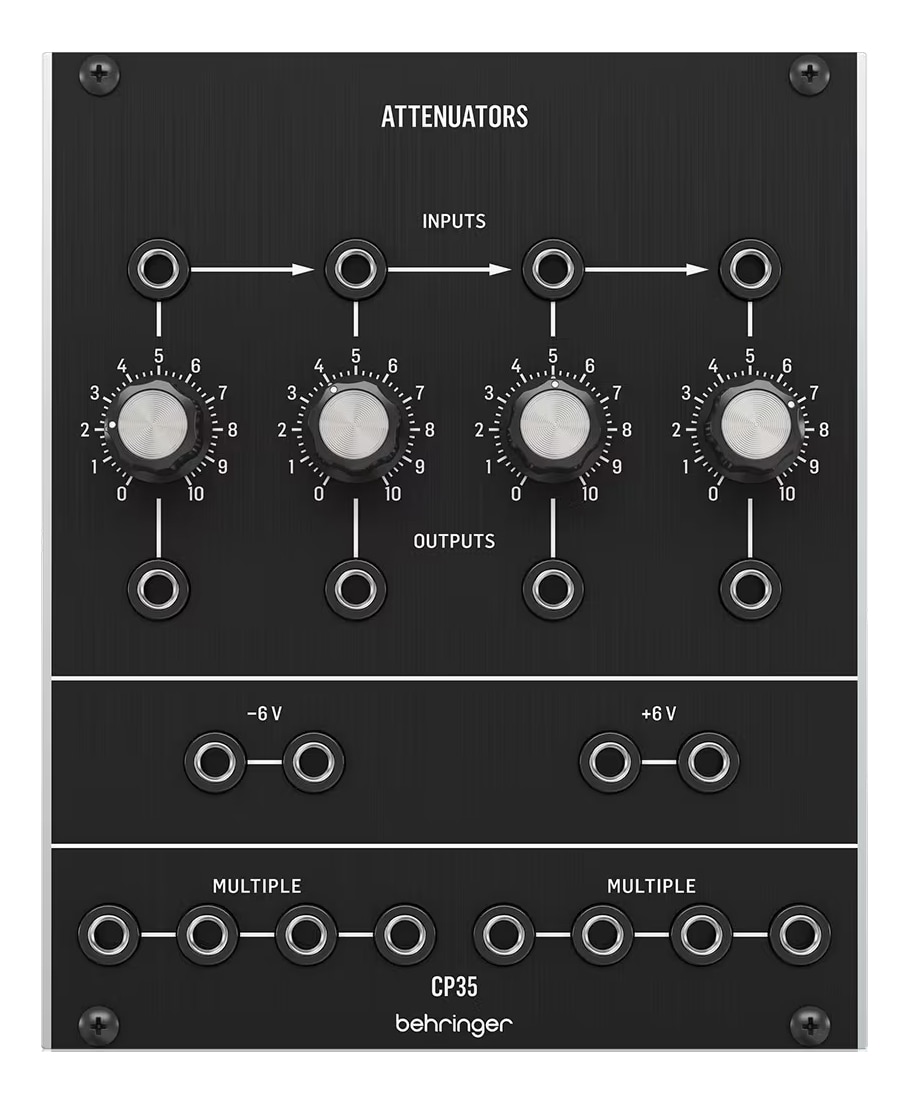

  • BEHRINGER / CP35 ATTENUATORS画像2

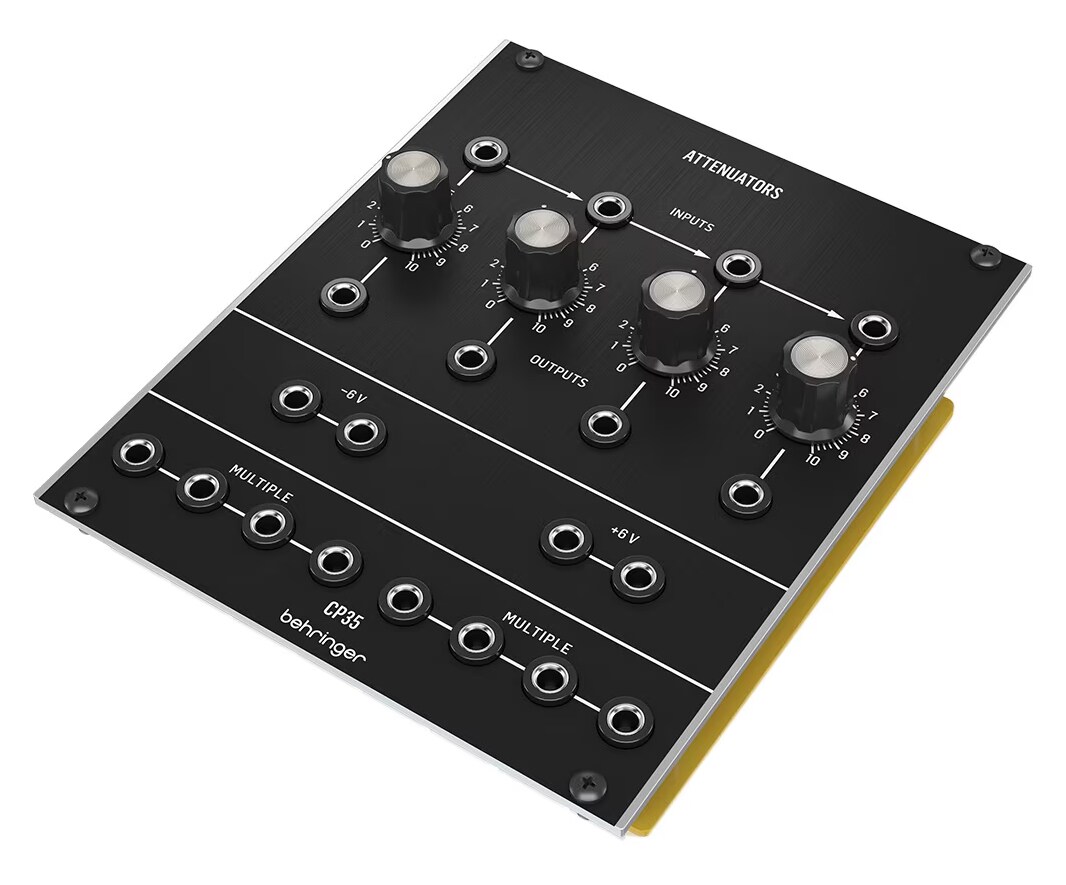

  • BEHRINGER / CP35 ATTENUATORS画像3
5
  • メーカーサイトManufacturer Site
  • 製品マニュアルProduct Manual

Variations

▼ もっと見る

Faithfully reproduces the vintage sound of the 70's. Features 4 passive attenuators with linked inputs and 4 independent outputs. Flexible tone modulation module.
Analog attenuator and multiple modules for Eurorack

Faithfully reproduces the "Modular 55 & 35" series circuit
4 passive attenuators with linked inputs
Two outputs, each linked to a fixed +/- 6 volt CV reference voltage
Dual 4-socket multiple for splitting CV or audio signal into multiple routes
Eurorack specifications: 21 HP, 1 mA +12 V, 1 mA -12 V

Attenuator: Passive rotary attenuator x 4
Signal input: 3.5 mm jack x 4, half nominal, DC coupling
Impedance: 25kΩ, unbalanced
Maximum input level: +20 dBu
Signal output: 3.5 mm jack x 4, DC coupling
Impedance: 25kΩ, unbalanced
Maximum output level: +20 dBu
Multiple: 3.5 mm TS mono jack x 8, unbalanced
Arrangement: 2 out of 4, parallel jack, passive
Compatibility: CV and audio signal
Negative 6 V output: 2 x 3.5 mm jack, link
Positive 6 V output: 2 x 3.5 mm jack, link
Impedance: 5kΩ
Current consumption: 1 mA (+12 V), 1 mA (-12 V)
Dimensions: 106 x 129 x 35 mm
Rack unit: Rack unit 21 HP
Weight: 0.18 kg
