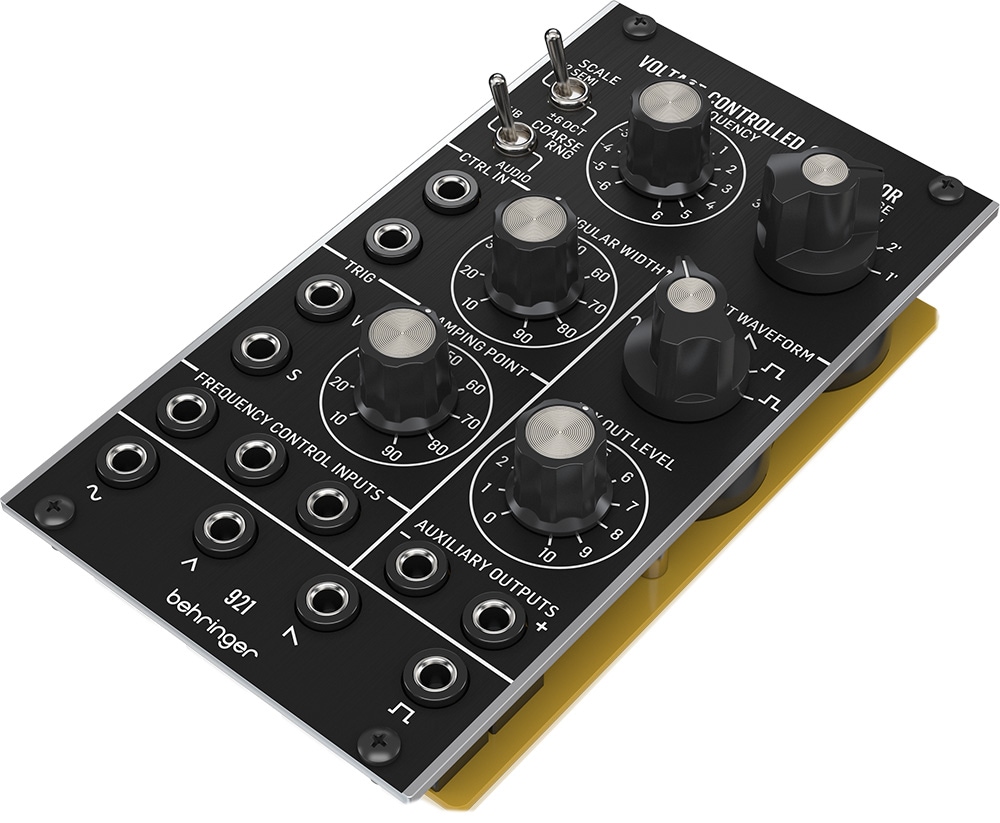

BEHRINGER / 921 VOLTAGE CONTROLLED OSCILLATOR

Faithful reproduction of vintage 70's sounds, with 6 selectable waveforms (sine, triangle, saw, inverse saw, square, inverse square). Module capable of creating thick pulse-wise modulation sounds.

Frequency control input: 3.5 mm jack x 3, combined, 1 V/oct.
Rectangular wave width control input: 3.5 mm jack x 2, combined, 1 V / 15%
Input impedance: 100kΩ, unbalanced
Maximum input level: -6?+6 V
Clamp point trigger input: 3.5mm jack x 2 (1 x V trigger, 1 x S trigger)
V-trig input impedance: 10kΩ, unbalanced
S-trig input impedance: 30kΩ, unbalanced
Maximum input level +12 V
Auxiliary output: 3.5 mm jack x 1, monaural, +/- polarity
Output impedance: 50Ω, unbalanced
Maximum output level: +10 dBu
Waveform output: 3.5mm jack x 4, mono sine wave, triangle wave, sawtooth wave, square wave
Output impedance: <800Ω, unbalanced
Output level: -4dBu (normal)
Scale: Toggle switch x 1, ±6 octaves/±12 semitones, selectable
COARSE RNG: Toggle switch x 1, sub audio range 0.01Hz to 800Hz (normal), audio range, 1Hz to 80kHz (normal)
Frequency: Rotary knob x 1 ± 6 octaves
Range: Rotary switch x 1, selectable from 32'/16'/8'/4'/2'/1'
Square wave width: Rotary knob x 1, 10% to 90%, selectable
Clamp point: Rotary knob x 1, 10% to 90%, selectable
AUX output waveform: Rotary switch x 1, sine/triangle/inverted saw/saw/square wave/reverse square wave selectable
AUX output level: +10dBu off selectable with rotary knob
Power: Eurorack
Current: 50mA (+12V), 50mA (-12V)
Dimensions: 45 x 71 x 129 mm
Rack unit: 14HP
Weight: 0.18 kg
