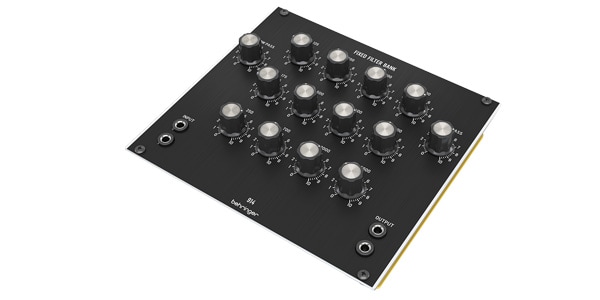

BEHRINGER / 914 FIXED FILTER BANK

Faithfully reproduces the vintage sounds of the 70's used by the world's most famous pop, rock, and jazz musicians. Equipped with an active bandpass filter, a low-pass filter and a high-pass filter are also added to this module, allowing free control over the tone and resonance of the issue.

70's Vintage Sound 914 Fixed Filter Bank Module
Reliably reproduces the discrete I/O circuit of the "Modular 55" series
12 active bandpass filters from 125 Hz to 5.6 kHz
Lowpass and highpass filters
Dual input and output jacks
Eurorack specifications: 28HP, 60mA +12V, 70mA -12V

◆ Band Pass Filters

12 active bandpass filters in the 125 Hz to 5.6 kHz range, with additional lowpass and highpass filters, allowing the user to adjust the gain of each frequency to get the timbre and resonance of the signal.
◆ Dual Input and Output Jacks

Combine the 914 with other modules from dual 3.5mm input/output jacks. The inputs are wired in parallel so that you can filter the signal source and pass the unfiltered signal to another module at the same time, and the output can send two different signals to different modules.

◆Analog synthesizer module

Input: 3.5 mm x 2, parallel jack, AC coupling
Impedance: 30kΩ, unbalanced
Maximum input level: +20 dBu @ 1 kHz, output 2 x 3.5 mm parallel jack, AC coupled
Impedance: <600Ω, unbalanced
Maximum output level: +10 dBu
Low-pass filter: Rotary knob x 1
Slope: 24 dB/oct.
Filter bank: Rotary knob x 12
Type: Bandpass filter
Frequency bands: 125, 175, 250, 350, 500, 700, 1000, 1400, 2000, 2800, 4000, 5600 Hz
Level adjustment: -3-80 dB, adjustable, Q 7
High-pass filter: Rotary knob x 1
Peak frequency: 7.5 kHz
Slope: 24 dB/oct.
Distortion rate: <0.1% @ 1 kHz, 0 dBu
Noise: <-80 dBu, 22 Hz to 22 kHz
Current: 60 mA (+12 V), 70 mA (-12 V)
Dimensions: 42 x 142 x 129 mm
Rack unit: 28 HP
Weight: 0.26 kg
