BEHRINGER / 904B VOLTAGE CONTROLLED HIGH PASS FILTER

BEHRINGER / 904B VOLTAGE CONTROLLED HIGH PASS FILTER

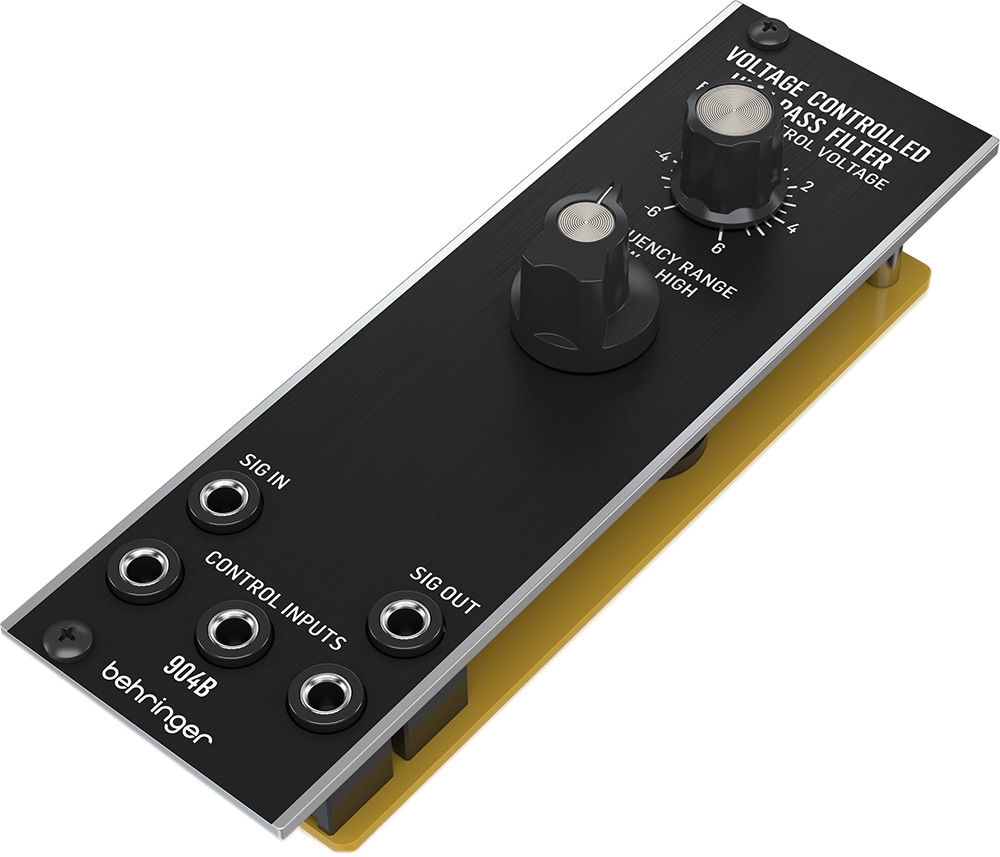

  • BEHRINGER / 904B VOLTAGE CONTROLLED HIGH PASS FILTER画像1

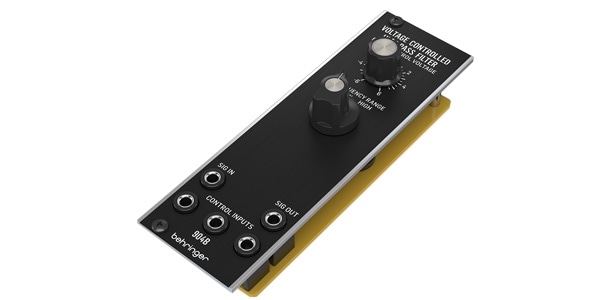

  • BEHRINGER / 904B VOLTAGE CONTROLLED HIGH PASS FILTER画像2

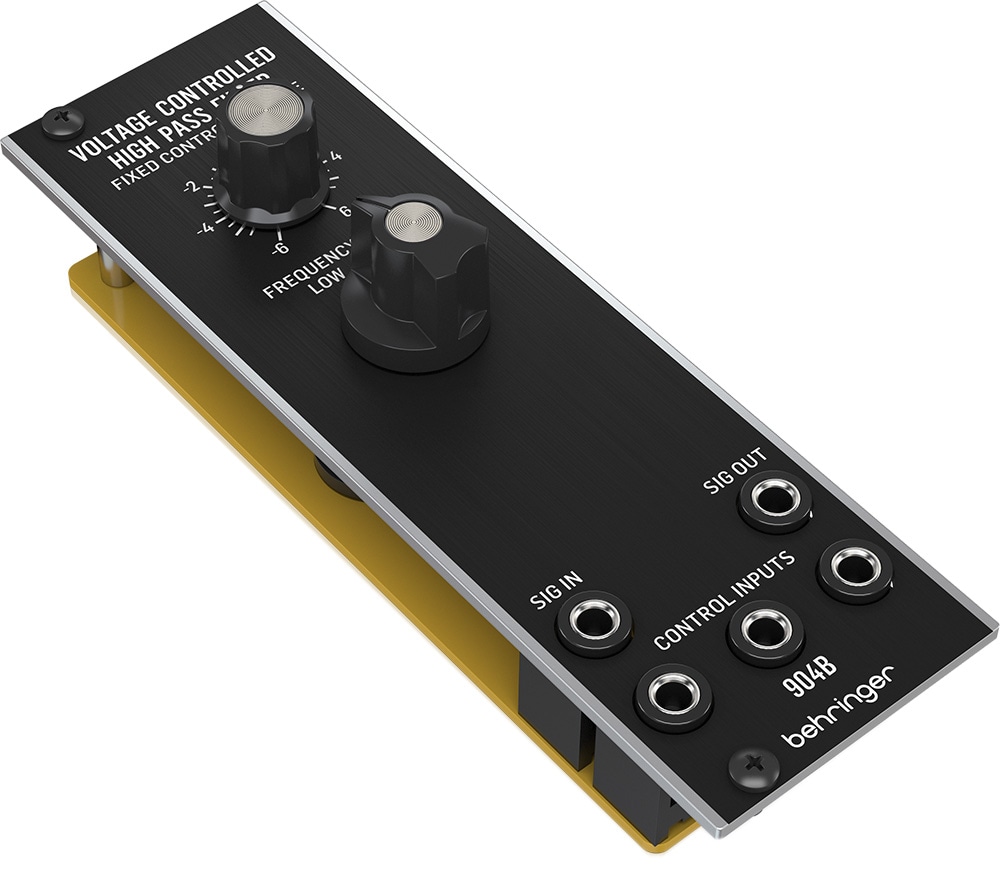

  • BEHRINGER / 904B VOLTAGE CONTROLLED HIGH PASS FILTER画像3
10
  • メーカーサイトManufacturer Site
  • 製品マニュアルProduct Manual

Variations

▼ もっと見る

Faithfully reproduces the vintage sound of the 1970s. Attenuates the low frequency range of the signal and emphasizes the high frequency range. Module to create unique sounds.
Analog High Pass VCF Module for Eurorack

Input: 3.5 mm jack, DC coupled unbalanced
Impedance: 33kΩ
Maximum input: Level +10 dBu
Output: 3.5 mm jack, DC coupled
Impedance: 620Ω, unbalanced
Maximum input level: +10 dBu
Output noise: typically -70 dBu, 22 Hz-22 kHz
Control input: 3.5 mm jack x 3, combined
Impedance: 100kΩ, unbalanced
CV range: 1 V per octave,12-octave range
Fixed control voltage: +/- 6 V, total CV input
Frequency range: Selector Low = <4 Hz to 20 kHz, 24 dB per octave High = <10 Hz to 50 kHz, 24 dB per octave
Power: Eurorack
Current: 55 mA (+12 V), 55 mA (-12 V)
Dimensions: 43 x 40 x 129 mm
Rack unit: 8 HP
Weight: 0.09 kg
