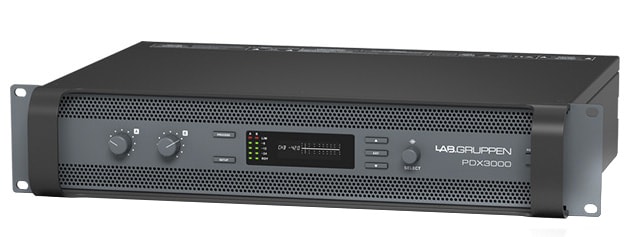

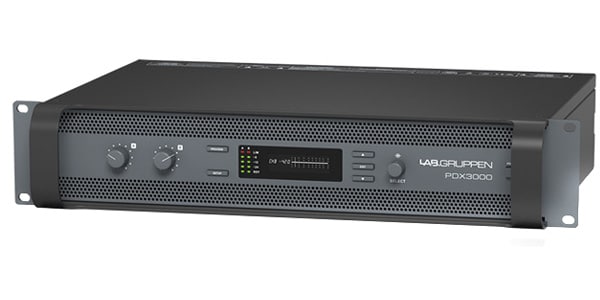

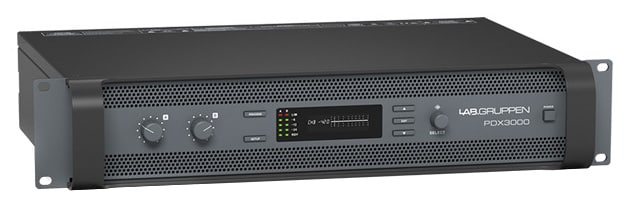

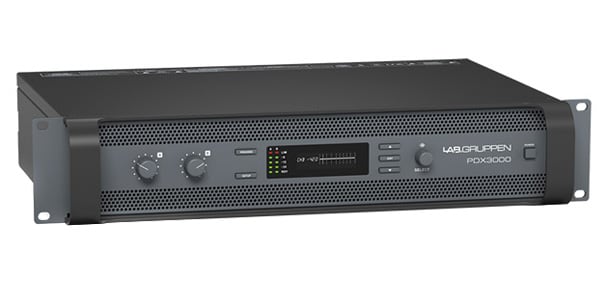

LABGRUPPEN / PDX3000

The PDX3000 is a 2 x 1500W power amplifier with DSP, designed for entry-level to mid-range live sound applications.

■ 2 Channels x 1500W

■ DSP-controlled speaker processing

■ Reliable Class-D amplifier stage

■ High-efficiency Switch Mode Power Supply (SMPS) with minimal power supply voltage interference

■ Wide range of configuration and monitoring software via USB connection

■ Easy setup and monitoring with an intuitive front panel

■ Precise power management ensures efficiency and performance

■ Enhanced circuit protection protects against short circuits and overloads

■ Adjustable gain, delay, crossover, limiter, and EQ (Dynamic EQ)

■ Speaker protection limiter at maximum level and reliable driver protection

■ Presets optimized for various speaker crossovers

■ Optimized sensitivity for XLR and TRS cables

■ Speakon output

■ Front panel lock function to prevent accidental operation

■ Fan for efficient amplifier cooling

■ Lightweight rack-mountable and robustly durable unit

■ 10-year product warranty

■ Swedish design and engineering

【DSP Function】

■Delay: 0-300ms

■Crossover Function: 3 filter types, 48dB/Oct

■EQ Function: 8-band parametric, 2-band dynamic EQ

■Limiter: Zero-attack limiter

■Presets: 20 total presets, 19 user-configurable

【Production Features】

■Cooling: Two fans blow air from front to back. Temperature-controlled speed function included

■ Amplifier Protection: Thermal protection, DC protection, rail sensing, and peak current limiting

■ Load Protection: Startup and shutdown control, DC fault, short circuit protection

【Specifications】

■ Number of Channels: 2

■ Number of Channel Processing: 2

■ Total Output Power: 3000W

■ Peak Output Voltage per Channel: 115V

■ Peak Output Current per Channel: 32A

■ Bridge Mode: No

■ Output Circuit: Class-D

【Maximum Output】

Per Channel

■ 2Ω: 1000W

■ 4Ω: 1500W

■ 8Ω: 800W

■ Distortion (20Hz-20kHz for 1W): <0.1%

■ Distortion (1kHz and 1dB below clipping): <0.1%

■ S/N Ratio: >90dB

■ Crosstalk (at 1kHz): >75dB

■Frequency Response: 10 Hz to 20 kHz, +0.5/-1 dB

■Input Impedance: Balanced 10kΩ, Unbalanced 20kΩ

■Internal Sample Rate: 96kHz

■Product Propagation Delay: 0.6ms

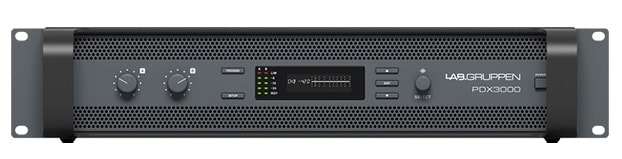

【Controls】

■Power Switch

■Gain Control (Channels A and B)

■DSP Section Rotary Push Encoder

■Process Button, Setup, Up/Down Button, Exit Button

【Remote】

■PDX Controller software can be operated via USB

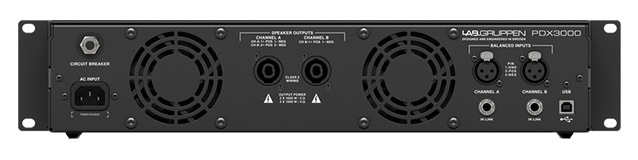

【Connectors】

■Input/Link: 2 x XLR, 2 x 1/4"" TRS

■Output: Neutrik Speakon (2 x NLT4)

■USB Connection: Rear Panel, Type B USB Connector for PDX Controller Software and DSP Remote Control

■Main Connector: Locking IEC Plug

【Power Supply】

■Voltage: Nominal Voltage 100V

■Power Consumption @4Ω Rated Output: 1050W

【Dimensions/Weight】

■Dimensions (H x W x D): 93mm x 483mm x 326mm

■Weight: 6.5kg
