BOYA / BY-WM8 Pro-K1

B-band wireless microphone set compatible with single-lens reflex cameras. A lavalier microphone (pin microphone) and receiver are included in the set. Equipped with headphone output for monitoring. Easy connection by simply connecting to your device with a 3.5mm mini plug. Ideal for live streaming, interviews, video shooting, remote meetings, and more, including podcasts. Compact and lightweight. Captures the desired sound clearly. A wireless microphone system that is easy to use and easy to operate.

■UHF Wireless Microphone
The BOYA BY-WM8 Pro is an upgraded UHF dual channel wireless microphone system.
It can be used for audio recording in live sound, ENG, broadcast/film, talk shows, conferences, and more.

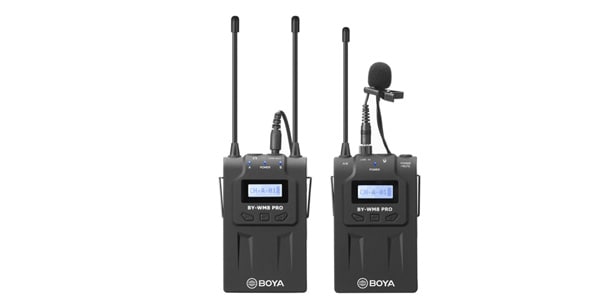

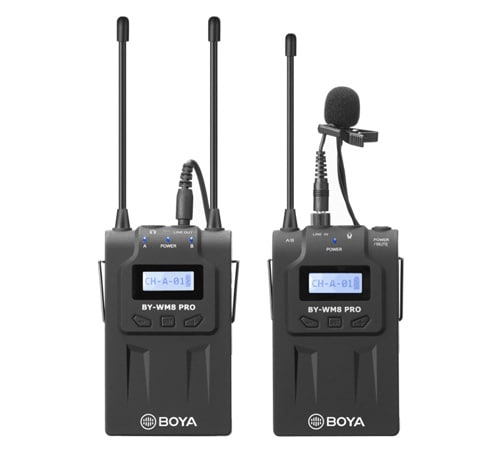

The BY-WM8 Pro-K1 system consists of a bodypack transmitter, a camera-mounted receiver, and two omnidirectional lavalier microphones. The system also comes with a shoe mount adapter.
Includes one 1/8""-XLR output cable, one 1/8""-1/8"" output cable, and a carrying case.

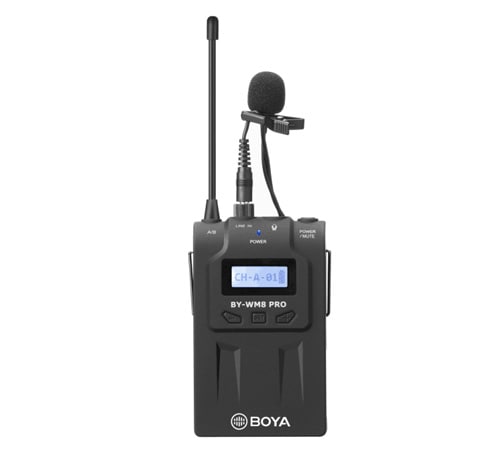

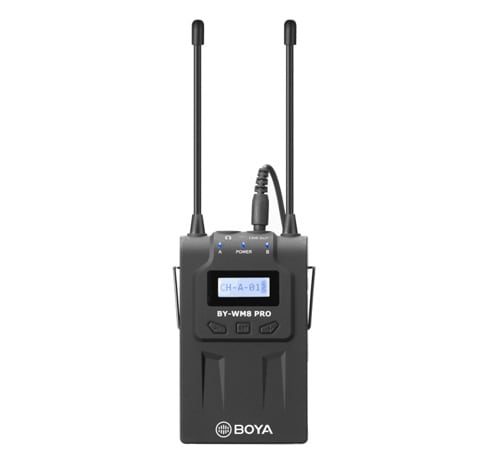

The camera-mountable receiver features wideband switching RF, an easy-to-read LCD display, and a 3.5mm headphone jack for real-time monitoring. The bodypack transmitter also features a crystal-controlled PLL synthesizer, muting function, 1/8"" microphone input, and 1/8"" line input terminals.

- Dual channel wireless receiver
- Consists of one transmitter and one receiver
- Equipped with digital companding circuit
- Auto-lock function to prevent accidental setting changes
- Transmitter equipped with one microphone input and one line input
- Receiver can be monitored directly with headphones
- A wide range of accessories can be used to meet various needs
- UHF transmission, 48 UHF channels
- Ideal for ENG/EFP and DSLR video
- High quality sound
- Operation range up to 100m
- Two modes can be selected: mono and stereo
- Power supply is 2 AA batteries for both transmitter and receiver


Oscillator: PLL synthesis controlled oscillator
Frequency range: 806.125-809.500
Channels: 5 channels each for transmitter A and B
Transmission frequency: 40 Hz - 18 kHz (+/-3dB)
Maximum reach: 100m (without obstacles)
Number of simultaneous uses: Maximum 5 waves
Antenna: 1/4λ wire antenna
Audio input: 3.5mm mini jack
Signal-to-noise ratio: 70dB or more
Headphone output level: 30mW (16Ω)
Audio output level: -60dBV
Power supply: 2 x AA batteries
Battery life: Approximately 4 hours
External dimensions: 208 (H) x 67 (W) x 29 (L) mm
Weight: 90g

■Group A channel
806.125MHz
806.500MHz
806.875MHz
807.250MHz
807.625MHz

■Group B Channel
808.000MHz
808.375MHz
808.750MHz
809.125MHz
809.500MHz
