IMAGENICS / SL-41C

Seamless switcher with 4 inputs and 1 output for multi-signals

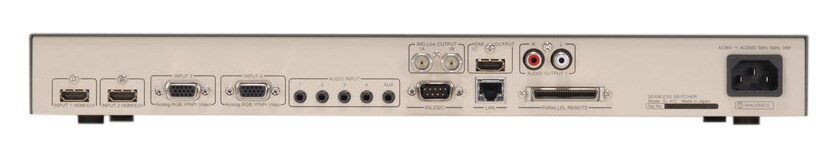

Video input
■HDMI/DVI:
Supported resolutions: 480i to 1080p / VGA to UXGA and WUXGA (Reduced Blanking),
Deep Color compatible, HDCP compatible, cable compensation function, EDID emulator function,
2 HDMI Type A 19-pin connectors
■Analog RGB:
0.7 V(p-p) 75 Ω (1.0 V(p-p) when Sync on Green) Sync signal: HD/VD or CS TTL level,
or Sync on Green, Supported resolutions: VGA to WUXGA,
2 DVI-I 29-pin connectors (with EDID emulator function), 2 D-sub connectors
■Component:
Y: 1.0 V(p-p), Pb(Cb)/Pr(Cr): 0.7 V(p-p), 480i series supports ID-1,
2 DVI-I 29-pin connectors 1 system, 2 D-sub connectors
■Composite/S-Video: Composite/Y: 1.0 V(p-p), C: 0.286 V(p-p),
NTSC/PAL video signal, NTSC supports ID-1, 2 DVI-I 29-pin connectors, 2 D-sub connectors
Video output
■HDMI/DVI: Supported resolutions 480p to 1080p / VGA to UXGA and WUXGA (Reduced Blanking),
Deep Color supported, HDCP supported, 1 HDMI TypeA 19-pin connector
■IMG.Link signal: Supported resolutions 480p to 1080p, VGA to UXGA and WUXGA (Reduced Blanking)
Original re-encoded serial digital signal
1.0 V(p-p) 75 Ω 1 BNC connector 2 Distribution
Coaxial transmission distance: approx. 110m with 5C-FB
Audio input
■Linear PCM:
32 kHz to 192 kHz, 16 bit to 24 bit, up to 8 channels, 2 HDMI TypeA 19-pin connectors
■Analog unbalanced:
245 mV(rms) (-10dBu), 50kΩ or more, input level: 2.1 V(rms) (+8.8 dBu),
4 2-channel φ3.5 stereo jacks, 1 auxiliary input
Audio output
■Linear PCM:
48 kHz, 24 bit, up to 8 channels, 1 HDMI TypeA 19-pin connector, 1 BNC connector, 2 distribution
■Analog unbalanced:
245 mV(rms) (-10dBu, 10kΩ or more load), output level: 2.1 V(rms) (+8.8 dBu),
low impedance, 2-channel stereo RCA 1 pin jack

■External control:
RS-232C, parallel, LAN, infrared (remote control sold separately)

■Size: 422 (W) x 44 (H) x 300 (D) mm (excluding protrusions), approx. 4.1 kg

■Accessories:
1 set of EIA19 rack mount brackets (1 U)
1 3P-3SL power cord (AC 100 V system, with locking mechanism)
1 3P-2P power conversion plug
1 power switch cover
3 HDMI cable retaining brackets (CL-1)
3 cable ties
*We recommend that all IMAGENICS DVI/HDMI related devices and cables are configured with IMAGENICS products.

When used in combination with some other companies' products (including overseas products), the specified performance may not be maintained and unexpected problems may occur. In this case, we may not be able to guarantee the operation of IMAGENICS products.
