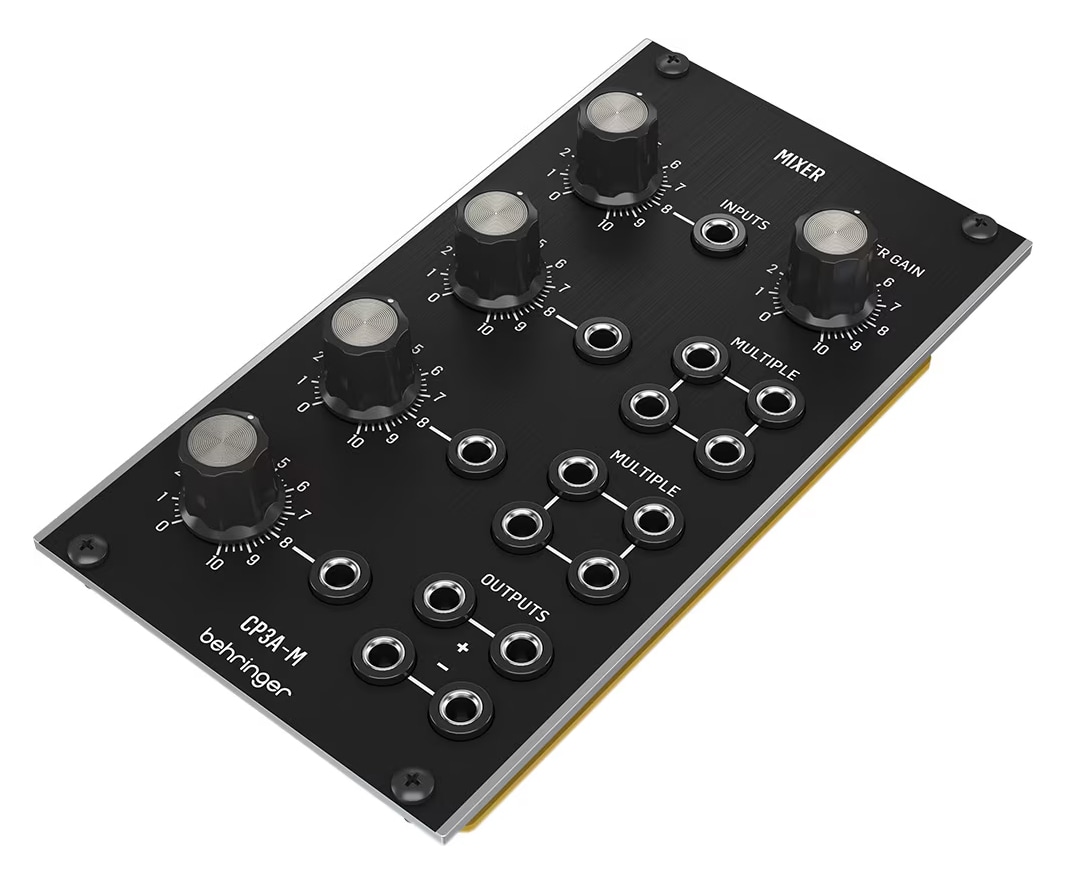

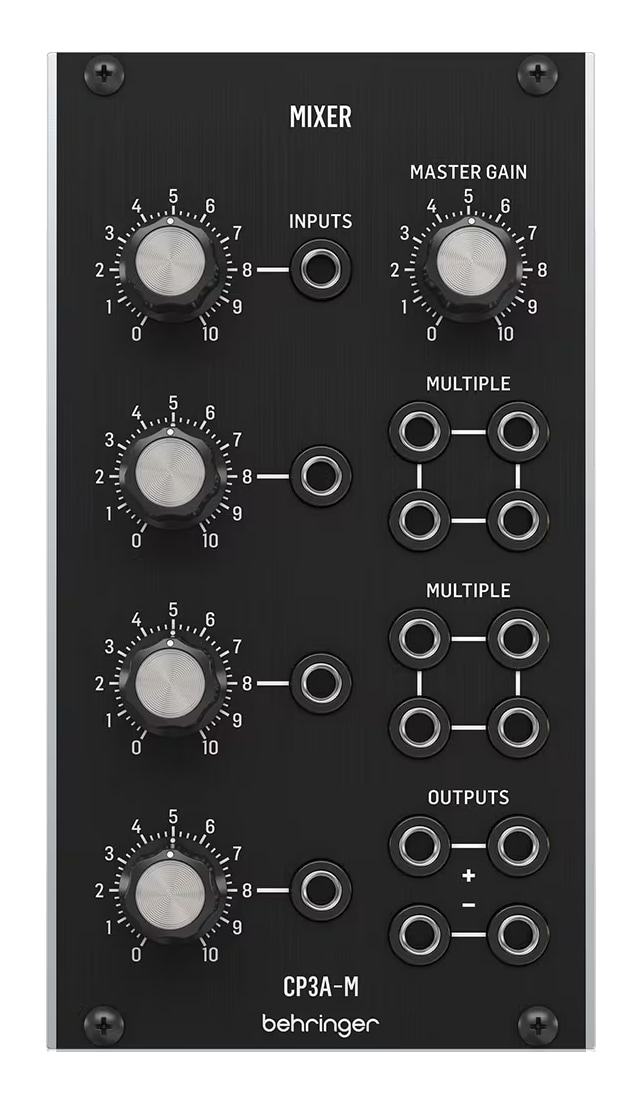

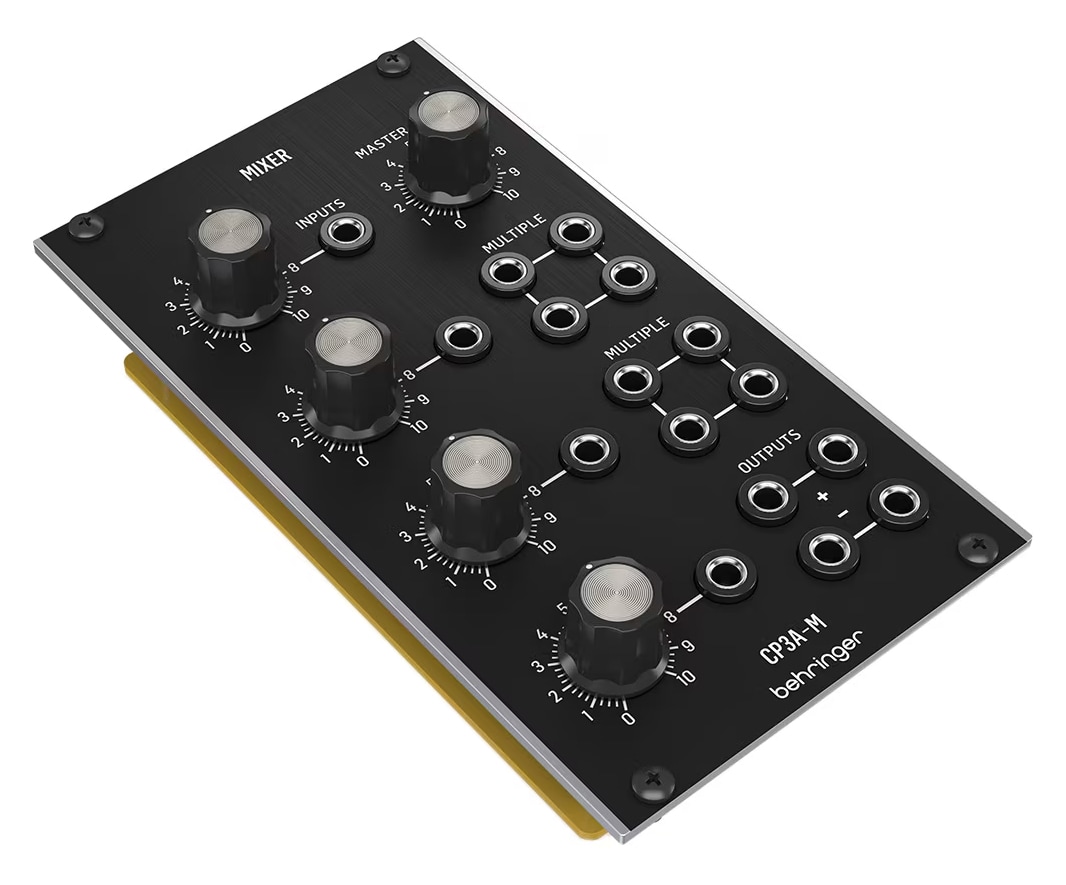

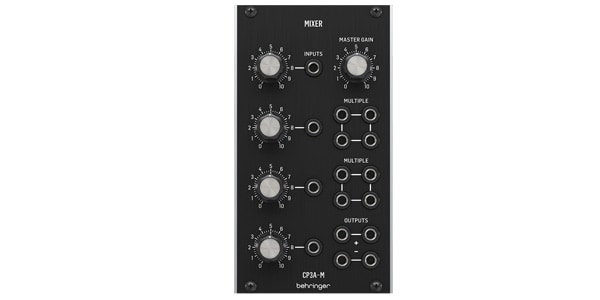

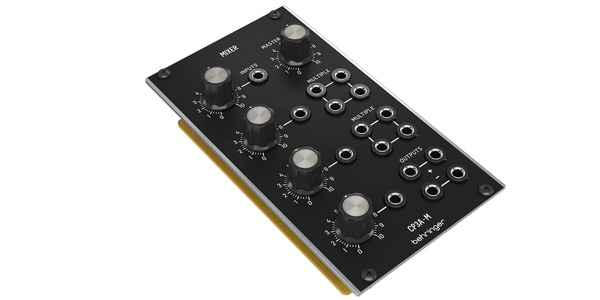

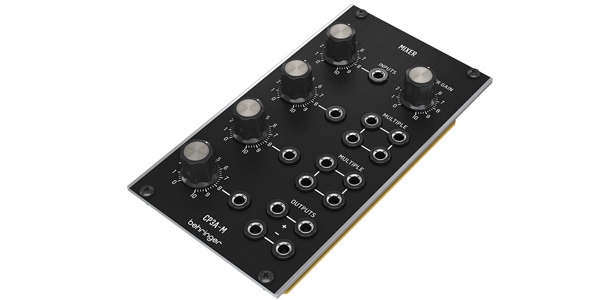

BEHRINGER / CP3A-M MIXER

Faithfully reproducing the vintage sounds of the 70's, the CP3A-M module has four 3.5 mm input channels, each with its own adjustment knob. All channels and input gain can be adjusted. This module allows for complex patching and sound makeup.

Analog modular synthesizerFeatures

CP3A-M mixer module with vintage 70's sound
Authentic reproduction of the “Modular 55, 35, and 15” series circuits
Modular features 4 input channels with 2 sets of 2 adjustable outputs
Master gain control for overall output volume control
Dual 4-point multi-circuit for flexible patching
Five control knobs for real-time access to all parameters
Eurorack specifications: 14 HP, 30 mA +12 V, 30 mA -12 V

Specifications

◆Analog synthesizer module

Channel gain: rotary knob x4
Maximum input level: +14 dBu
Master gain: rotary knob x 1
Maximum Output Level: +14 dBu
Input: 3.5 mm TS jack x 4, mono
Impedance: 10 kΩ unbalanced
Multiple: 3.5 mm TS jack x 8, mono
Arrangement: 2 sets of 3.5 mm TS jacks x 4, passive
Compatible CV and audio signals, 4 x 3.5 mm TS jacks, mono
Impedance: 220 Ω?5 kΩ, unbalanced
Output Noise: <-85 dBu, 22 Hz-22 kHz
Power supply: Eurorack
Current: 30 mA (+12 V), 30 mA (-12 V)
Dimensions: (H x W x D) 129 x 71 x 35 mm
Rack unit: 14 HP
Mass: 0.16 kg
